Description

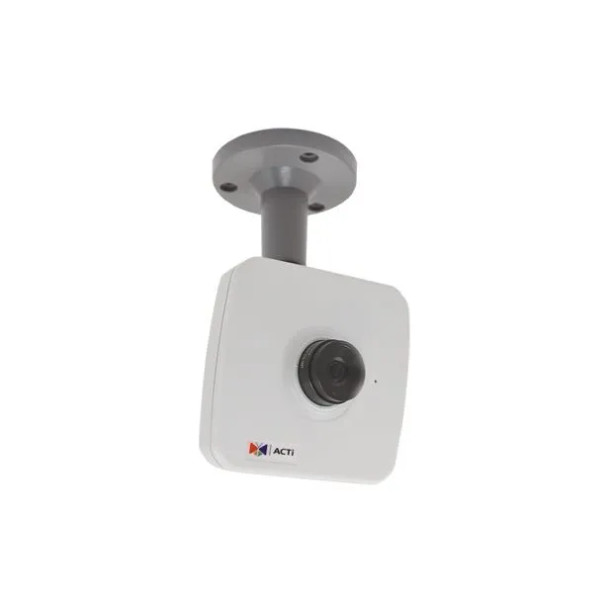

ACTi E19 5MP Indoor Cube IP Security Camera with 2.8mm Lens
The ACTi E19 is a high-resolution 5MP indoor cube IP security camera designed for professional surveillance applications in offices, retail stores, and residential settings. Equipped with a fixed 2.8mm lens (F1.8), it provides a 117.5° horizontal field of view, ensuring comprehensive area coverage. With an Extreme Wide Dynamic Range (WDR) of 142 dB, the E19 enhances visibility in challenging lighting conditions. AI-powered analytics support face detection, people counting, object tracking, and intrusion detection for intelligent security monitoring. The camera features two-way audio with a built-in microphone and line-out support, allowing real-time communication. Supporting H.265, H.264, and MJPEG compression, the E19 optimizes bandwidth and storage efficiency.
Key Features:
- 5MP resolution; delivers high-definition video with sharp detail.
- 30 fps at 2592 x 1944; ensures smooth and clear recording.
- 2.8mm fixed lens (F1.8); provides a wide 117.5° horizontal field of view.
- Extreme Wide Dynamic Range (WDR) at 142 dB; enhances visibility in high-contrast lighting.
- AI-powered analytics; supports face detection, people counting, object tracking, and intrusion alerts.
- Two-way audio; supports real-time communication with a built-in microphone and line-out.
- H.265, H.264, and MJPEG video compression; optimizes bandwidth and storage usage.
- ONVIF compliant; ensures seamless integration with third-party security systems.
- Multi-streaming capability; supports triple streams with customizable resolution and compression.
- Motion detection with multiple configurable zones; triggers alerts and automated responses.
- PoE (IEEE802.3af) support; simplifies installation with power and data over a single cable.
- Operating temperature range of -20°C to 50°C (-4°F to 122°F); designed for stable indoor performance.
- Privacy masking with configurable regions; enhances security and compliance.
- Secure network access; supports HTTPS encryption, IP filtering, and user-level authentication.
Downloads
Additional Information
|
Aperture:
|
F1.8
|
|
Camera Style:
|
Cube
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Dimensions:
|
96 mm × 96 mm × 45 mm (3.8" × 3.8" × 1.8")
|
|
Environmental:
|
Indoor
|
|
Iris:
|
Fixed Iris
|
|
Lens Size:
|
2.8mm
|
|
Power Supply:
|
PoE (IEEE 802.3af)
|
|
Resolution:
|
5MP (3K)
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Storage Temperature:
|
-10 °C to 55 °C (14 °F to 131 °F)
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
WDR 142dB
|
