Description

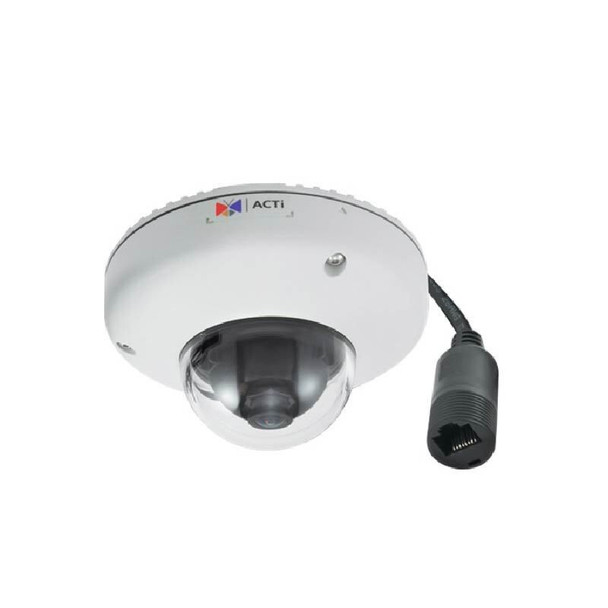

ACTi E918 3MP Outdoor Mini Dome IP Security Camera with 1.9mm Lens
The ACTi E918 is a high-resolution 3MP outdoor mini dome IP security camera designed for compact yet durable surveillance applications. Equipped with a fixed 1.9mm lens (F2.8), it provides a 126.9° horizontal field of view, making it ideal for monitoring entrances, hallways, and open areas. With Superior Wide Dynamic Range (WDR) at 110 dB, the E918 enhances visibility in high-contrast lighting conditions. Its rugged IP68 and IK10-rated housing ensures protection against dust, water, and physical impact, while its vibration-proof design makes it suitable for transportation and industrial environments. The camera supports audio input via mic-in and line-in, allowing real-time audio monitoring. Supporting H.264 and MJPEG compression, the E918 optimizes bandwidth and storage efficiency.
Key Features:
- 3MP resolution; delivers high-definition video with sharp detail.
- 30 fps at 1920 x 1080; ensures smooth and clear recording.
- 1.9mm fixed lens (F2.8); provides a wide 126.9° horizontal field of view.
- Superior Wide Dynamic Range (WDR) at 110 dB; enhances visibility in high-contrast lighting.
- Built-in vibration-proof design; suitable for transportation and industrial applications.
- IP68-rated weatherproof housing; protects against dust, water, and extreme conditions.
- IK10 vandal-proof metal casing; ensures resistance to physical impact and tampering.
- Audio input support; enables real-time audio monitoring with mic-in and line-in.
- H.264 and MJPEG video compression; optimizes bandwidth and storage usage.
- ONVIF compliant; ensures seamless integration with third-party security systems.
- Multi-streaming capability; supports dual streams with customizable resolution and compression.
- Motion detection with multiple configurable zones; triggers alerts and automated responses.
- PoE (IEEE802.3af) power support; simplifies installation with power and data over a single cable.
- Operating temperature range of -20°C to 50°C (-4°F to 122°F); designed for extreme environments.
- Privacy masking with configurable regions; enhances security and compliance.
- Secure network access; supports HTTPS encryption, IP filtering, and user-level authentication.
Downloads
Additional Information
|
Aperture:
|
F2.8
|
|
Audio Capability:
|
One-way Audio
|
|
Camera Style:
|
Mini Dome
|
|
Color:
|
White
|
|
Compression:
|
H.264
MJPEG
|
|
Dimensions:
|
110 x 60 mm (4.3 x 2.4 in)
|
|
Durability:
|
Weatherproof
Vandal Resistant
|
|
Environmental:
|
Outdoor
|
|
Iris:
|
Fixed Iris
|
|
Lens Size:
|
1.9mm
|
|
Lens Type:
|
Fixed Lens
|
|
Max Power Consumption:
|
4.4 Watts
|
|
Max. FPS and Resolution:
|
20fps at 2048 x 1536
|
|
Max. Storage Capacity:
|
256 GB
|
|
Power Supply:
|
PoE (IEEE 802.3af)
|
|
Protection Code:
|
IP68
IK10
NEMA 4X
|
|
Resolution:
|
3MP
|
|
S/N Ratio:
|
52 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/3"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/5-1/10000s
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
WDR 110dB
|
