ACTi E96 5MP Indoor 360° Fisheye IP Security Camera - WDR

E96
Save
28%
ACTi E96 5MP Indoor 360° Fisheye IP Security Camera - WDR
Hover on image to enlarge
$494.00
$358.00
You save: $136.00 (28%)
+
  • Shipping Policy
  • Return Policy
  • Ask Question
Delivery
Payment options
fingerprintOur advantages

person Dedicated StaffDedicated Staff

people Free Presales SupportFree Presales Support

palette Free DesignFree Design

label_outline Best priceWe are proud of our prices, hundreds of customers check them every day, which give a choice to our online store!

Frequently bought together

Description

ACTi E96 is H 264 camera ACTi E96 is pan tilt zoom in camera
ACTi E96 is wide dynamic range camera ACTi E96 is cmos sensor camera

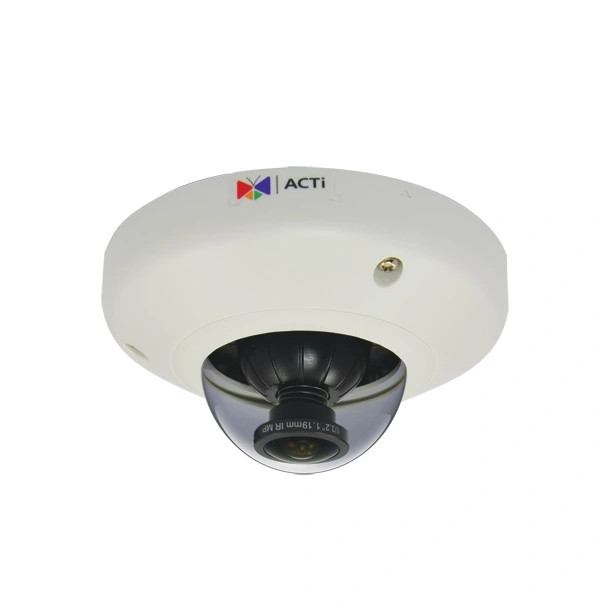

ACTi E96 5MP Indoor 360° Fisheye Camera
The ACTi E96 5MP Indoor 360° Fisheye Camera is the perfect tool to ensure maximum security for your home, office, or business. It utilizes a sleek 5 megapixel CMOS imaging sensor that allows you to record smooth, crystal-clear videos at a full 15 frames per second. With its 180/360° Panoramic Viewing capability, the ACTi E96 can easily monitor wider areas and reduce any possible blind spots. This makes it ideal for large places such as airports, parking lots, casinos, and more.
This excellent Fisheye camera includes the Wide Dynamic Range (WDR) feature that will allow the video to display both dark and bright parts of the image equally for better viewing. You'll also be able to store your captured content easily by using the built-in MicroSDHC/ MicroSDXC memory card slot. In addition, the ACTi E96 5MP Indoor 360° Fisheye Camera has an IK08-rated housing construction to protect from vandalism attempts.
Key Features of the ACTi E96 5MP Indoor 360° Fisheye Camera
  • 5 megapixel CMOS imaging sensor: produces excellent visuals in crystal-clear quality
  • Basic WDR: adjusts the camera image to properly display both bright and dark parts
  • MicroSDHC/MicroSDXC memory card slot: allows you to save more of your captured content
  • IK08-rated Housing: offers a superior construction that can withstand vandalism
acti e96 5mp indoor 360° fisheye camera - wdr
acti e96 5mp indoor 360° fisheye camera - wdr>
Features

Manufacturer:
ACTi
Product Type:
Cameras
Warranty:
3-year Manufacturer Warranty
Environmental:
Indoor
Discontinued:
no

Security Camera Features

Lens Size:
1.19mm
Lens Type :
Fixed Lens
Resolution:
5MP (3K)
Technology:
Network (IP)
Camera Style:
  • Dome
  • Fish Eye
Technical Specs

ACTi E96 5MP Indoor 360° Fisheye Camera Specifications
  • Device Type: Indoor Mini Fisheye Dome
  • Image Sensor: Progressive Scan CMOS
  • Sensor Size: 1/3.2"
  • Minimum Illumination: Color: 0.1 lux at F2.0 (30 IRE, 2400°K)
  • Electronic Shutter: 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode)
  • Focal Length / Aperture: Fixed (Fisheye lens), f1.19 mm / F2.0
  • Iris: Fixed iris
  • Focus: Fixed focus
  • Lens Mount: Board Mount
  • Horizontal Viewing Angle: 180°
  • Viewing Angle Adjustment: Pan: ±90°; Tilt: 0°- 90°
  • Compression: H.264 HP, MJPEG
  • Maximum Frame Rate vs. Resolution: 15 fps at 2592 x 1944; 15 fps at 2048 x1536; 15 fps at 640 x 480; 15 fps at 320 x 240
  • Mode: Fisheye view, 180° /360° Panorama, ePTZ
  • Multi-Streaming: Simultaneous dual steams based on two configurations
  • Bit Rate: 28 Kbps: 6 Mbps (per stream)
  • Bit Rate Mode: Constant, Variable
  • Image Enhancement: Basic WDR (69 dB); White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness(auto); Auto gain control; Digital noise reduction; Flickerless
  • Privacy Mask: 4 configurable regions
  • Text Overlay: User defined text on video
  • Image Orientation: Image flip and mirror
  • Protocol & Service: TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
  • Ethernet Port: 1, Ethernet (10/100 Base-T), RJ-45 connector
  • Security: IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control
  • Alarm Trigger: Video motion detection (3 regions)
  • Alarm Response: Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP
  • Local Storage: MicroSDHC memory card slot (card not included)
  • Power Source / Consumption: PoE Class 1 (IEEE802.3af) / 2.91W
  • Weight: 221 g (0.49 lb)
  • Dimensions: (Ø x H) 110 mm x 58 mm (4.3" x 2.3")
  • Environmental Casing: Vandal Resistant (IK08); Transparent dome cover
  • Mount Type: Surface, Gang Box
  • Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F)
  • Operating Temperature: -10°C ~ 50°C (14°F ~ 122°F)
  • Operating Humidity: 10% ~ 85% RH
  • Approvals: CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IK08
  • Unified Solution: Fully compatible with ACTi software
  • ISV Integration: Software Development Kit (SDK) available ; ONVIF compliant
  • Firmware Access Browser: Microsoft Internet Explorer 8.0 or newer (full functionality); Other browsers with VLC installed (partial functionality)
Datasheets

Manual (actie96hardwaremanual.pdf, 1,579 Kb) [Download]
