Description

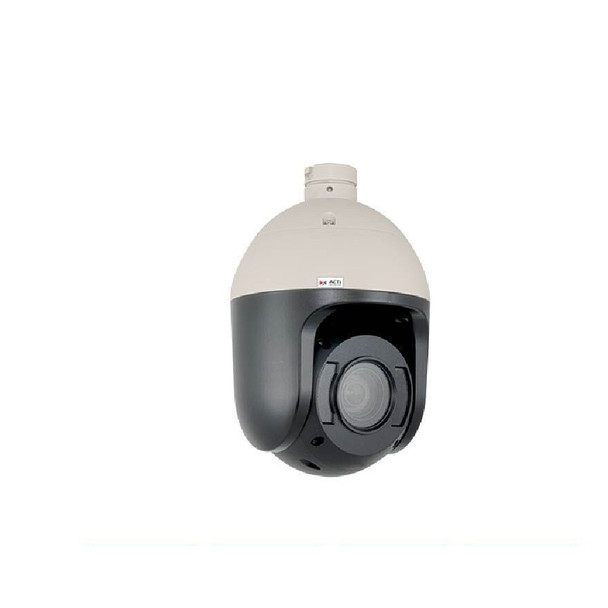

ACTi I98 2MP Outdoor PTZ IP Security Camera with 4.5-148.5mm Lens, 33x Optical Zoom and Built-In IR
The ACTi I98 is a high-performance 2MP outdoor PTZ IP security camera designed for large-area surveillance with AI-driven automation. Featuring a powerful 33x optical zoom lens (4.5-148.5mm, F1.6-F5.0) with autofocus and endless 360° pan and tilt functionality, this camera provides exceptional coverage and precision for long-range monitoring. The adaptive IR LEDs deliver night vision up to 160 meters, ensuring reliable performance in complete darkness. With an Extreme Wide Dynamic Range (WDR) of 145 dB, the I98 enhances visibility in high-contrast lighting conditions. AI-powered analytics support PTZ auto-tracking, line crossing detection, object tracking, and intrusion detection for intelligent security automation. The rugged IP66 and IK10-rated housing ensures durability against harsh weather and physical impact, while the built-in dehumidifier maintains clear image quality in varying environmental conditions. Supporting H.265, H.264, and MJPEG compression, the I98 optimizes bandwidth and storage efficiency.
Key Features:
- 2MP resolution; delivers high-definition video with sharp detail.
- 60 fps at 1920 x 1080; ensures smooth and high-quality recording.
- 33x optical zoom lens (4.5-148.5mm, F1.6-F5.0); enables precise long-range monitoring.
- Built-in IR with adaptive IR LED; provides night vision up to 160 meters.
- Extreme Wide Dynamic Range (WDR) at 145 dB; enhances visibility in high-contrast lighting.
- AI-powered analytics; supports PTZ auto-tracking, line crossing detection, object tracking, and intrusion detection.
- Endless 360° pan and -20° to 200° tilt; provides continuous and flexible area coverage.
- IP66-rated weatherproof housing; protects against dust, water, and extreme conditions.
- IK10 vandal-proof metal casing; ensures resistance to physical impact and tampering.
- Built-in dehumidifier; prevents condensation for clear image quality.
- Two-way audio; supports real-time communication with mic-in and line-in/out.
- H.265, H.264, and MJPEG video compression; optimizes bandwidth and storage usage.
- ONVIF compliant; ensures seamless integration with third-party security systems.
- Multi-streaming capability; supports triple streams with customizable resolution and compression.
- Motion detection with multiple configurable zones; triggers alerts and automated responses.
- High PoE (IEEE802.3at) and AC 24V power support; offers flexible power options.
- Operating temperature range of -40°C to 55°C (-40°F to 131°F); designed for extreme environments.
- Privacy masking with configurable regions; enhances security and compliance.
- Secure network access; supports HTTPS encryption, IP filtering, and user-level authentication.
Downloads
Additional Information
Aperture:
|
F1.55
F5.0
|
Audio Capability:
|
Two-Way Audio
|
Camera Style:
|
PTZ
|
Compression:
|
H.264
MJPEG
|
Digital Input:
|
4
|
Digital Output:
|
2
|
Digital Zoom:
|
16
|
Dimensions:
|
170 x 260 mm (6.69 x 10.23 in)
|
Durability:
|
Vandal Resistant
Dust Resistant
Water Resistant
|
Environmental:
|
Outdoor
|
Field of View (Horizontal):
|
69.3
3
|
Iris:
|
Auto (DC-iris)
|
Lens Mount:
|
Board Mounted
|
Lens Size:
|
4.5~148.5mm
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
Max. FPS and Resolution:
|
60fps at 1080P
|
Max. Storage Capacity:
|
256 GB
|
Minimum Illumination (Color):
|
0.05 Lux
|
Network Interface:
|
1x RJ-45
|
Noise Reduction:
|
3D DNR
2D DNR
|
Optical Zoom:
|
33x Optical Zoom
|
Power Supply:
|
24 VAC
Hi-PoE
|
Product Series:
|
ACTi I-Series
|
Protection Code:
|
IP66
IK10
NEMA 4X
|
Resolution:
|
2MP
|
S/N Ratio:
|
56 dB
|
SD Card Support:
|
SD Card Supported
|
Sensor Size:
|
1/2.8"
|
Sensor Type:
|
CMOS
|
Shutter Speed:
|
1/5-1/32000s
|
Technology:
|
Network (IP)
|
Wide Dynamic Range (WDR):
|
WDR 145dB
|
