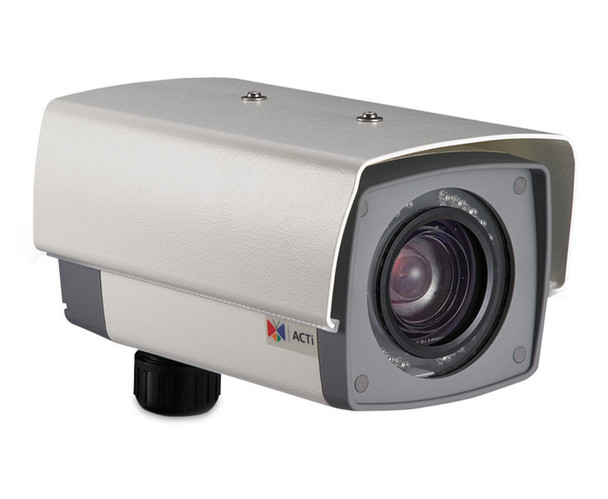

ACTi KCM-5611 Outdoor Low Light 1080P HD Box IP Security Camera

KCM-5611
Save
34%
ACTi KCM-5611 Outdoor Low Light 1080P HD Box IP Security Camera
Hover on image to enlarge
$1,187.00
$783.00
You save: $404.00 (34%)
+
  • Shipping Policy
  • Return Policy
  • Ask Question
Delivery
Payment options
fingerprintOur advantages

person Dedicated StaffDedicated Staff

people Free Presales SupportFree Presales Support

palette Free DesignFree Design

label_outline Best priceWe are proud of our prices, hundreds of customers check them every day, which give a choice to our online store!

Frequently bought together

Description

ACTi KCM-5611 Outdoor Low Light 1080P HD IP Security Camera 18x optical zoom ACTi KCM-5611 Outdoor Low Light 1080P HD IP Security Camera 2 way audio
ACTi KCM-5611 Outdoor Low Light 1080P HD IP Security Camera motion detection ACTi KCM-5611 Outdoor Low Light 1080P HD IP Security Camera ir led

ACTi KCM-5611 Outdoor Low Light 1080P HD IP Security Camera
If you have a requirement for a box camera that can function outdoors, then the IP66 rated ACTi KCM-5611 Outdoor Low Light 1080P HD IP Security Camera is an ideal choice. It captures images at up to 1920 x 1080 resolution at 15 fps through the built in progressive scan CMOS sensor. For a higher recording speed of 30 fps, it offers a 1280 x 720 resolution. Magnify the areas of images you want to scrutinize using the 18x optical zoom feature.

The presence of IR LEDs takes care of illumination even in conditions of total darkness, while the mechanical IR cut filter keeps the colors intact in varied light conditions. Be it any time of the day or night, the ACTi KCM-5611is designed to perform optimally. Back up the images and videos by installing a MicroSD or MicroSDHC card. It can compress images in three different formats - H.264, MPEG-4 and MJPEG. Loaded with features like motion detection sensors, two way audio and Power over Ethernet Class 3, the ACTi KCM-5611 Outdoor Low Light 1080P HD IP Security Camera is a complete device for security surveillance.

Key Features of ACTi KCM-5611 Outdoor Low Light 1080P HD IP Security Camera

  • Progressive Scan CMOS Sensor: records at two different speeds and resolution
  • 18x Optical Zoom: zooms specific areas of images for scrutinizing the details
  • Dual Streaming: enables simultaneous capture and upload
  • IR LEDs: allow capturing in 0 lux lighting conditions
  • Privacy Masking: allows masking up to 4 regions for security
  • PoE Class 3: eliminates the need for external power supply
acti kcm-5611 outdoor low light 1080p hd ip security camera
acti kcm-5611 outdoor low light 1080p hd ip security camera>
Features

Manufacturer:
ACTi
Product Type:
Cameras
Warranty:
3-year Manufacturer Warranty
Environmental:
Outdoor
Discontinued:
no

Security Camera Features

Technology:
Network (IP)
Camera Style:
  • Box
Optical Zoom:
18x Optical Zoom
Technical Specs

ACTi KCM-5611 Outdoor Low Light 1080P HD IP Security Camera Specifications

  • Device Type: Box Camera
  • Image Sensor: Progressive Scan CMOS
  • Sensor Size: 1/2.8" (5.42 x 3.41 mm)
  • Horizontal Resolution: 974 TVL
  • Day / Night: Yes
  • Superior Low Light Sensitivity: Yes
  • Minimum Illumination: Color: 0.1 lux at F1.6 (30 IRE, 2400 °K) B/W: 0 lux (IR LED on)
  • Color to B/W switch: ISP based switch, configurable
  • Mechanical IR Cut Filter: Yes
  • IR Sensitivity Range: 700 - 1100 mm
  • IR LED: IR LED x 24 (850 nm)
  • IR Working Distance: 20m (0 lux, 30 IRE, Max Exposure Gain)
  • Electronic Shutter 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode)
  • Focal Length: Zoom, f4.7 - 84.6 mm / F1.6 - 2.8
  • Zoom Ratio: 18x optical
  • Iris: DC Iris
  • Focus: Auto Focus
  • Horizontal Viewing Angle: 48.9°- 3.6°
  • Compression: H.264, MPEG-4 SP, MJPEG
  • Maximum Frame Rate vs. Resolution (H.264, MJPEG): 15 fps at 1920 x 1080, 30 fps at 1280 x 720, 30 fps at 640 x 480
  • Maximum Frame Rate vs. Resolution (MPEG-4 SP): 11 fps at 1920 x 1080, 25 fps at 1280 x 720, 30 fps at 640 x 480
  • Multi-Streaming: Simultaneous dual steams based on two configurations
  • Bit Rate: 28 Kbps - 6 Mbps (per stream)
  • Bit Rate Mode: Constant, Variable
  • Image Enhancement: Advanced WDR (80 dB); White balance: automatic, hold and manual; Brightness; Saturation; Contrast; Sharpness; Automatic gain control; 2D+3D Digital Noise Reduction; Flickerless; Defogging
  • Privacy Mask: 4 configurable regions
  • Text Overlay: User defined text on video
  • Image Orientation: Image flip and mirror
  • Compression: 8 kHz, Mono, PCM, 16 bit encoding; G.711
  • Audio-In: 3.5mm Phone Jack
  • Audio-Out: 3.5mm Phone Jack
  • Protocol & Service: TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Pelco-D, Pelco P
  • Ethernet Port: 1, Ethernet (10/100Base-T), RJ-45 connector
  • Security: IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control
  • Alarm Trigger: Video motion detection (3 regions); External device through digital input
  • Alarm Response: Notify control center; Go to Zoom preset point or preset tour; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP server; Activate external device through digital output
  • Digital Input: 2, terminal block
  • Digital Output: 2, terminal block
  • Serial Port: RS-485, RS-422, terminal block
  • Local Storage: MicroSDHC memory card slot (card not included)
  • Power Source: PoE Class 3 (IEEE802.3af)
  • Consumption:  10.7 W (IR on)
  • DC: 12V / 8.5W (adapter not included)
  • Weight: 1324g ( 2.92 lb)
  • Dimensions (W x H x D): 115.20 mm x 130.59 mm x 195.00 mm (4.50" x 5.10"x 7.70")
  • Environmental Casing: Weatherproof (IP66 rated)
  • Starting Temperature: -20°C ~ 50°C (-4°F ~ 122°F) within 30 minutes
  • Operating Temperature: -40°C ~ 50°C (-40°F ~ 122°F)
  • Operating Humidity: 10%~ 85% RH
  • Approvals: CE (EN 55022 Class A, EN 55024), FCC (Part15 Subpart B Class A), IP66
  • Unified Solution: Fully compatible with ACTi software
  • ISV Integration Software: Development Kit (SDK) available; ONVIF compliant
  • Firmware Access Browser: Microsoft Internet Explorer 8.0 or newer (full functionality); Other browsers with VLC installed (partial functionality)
