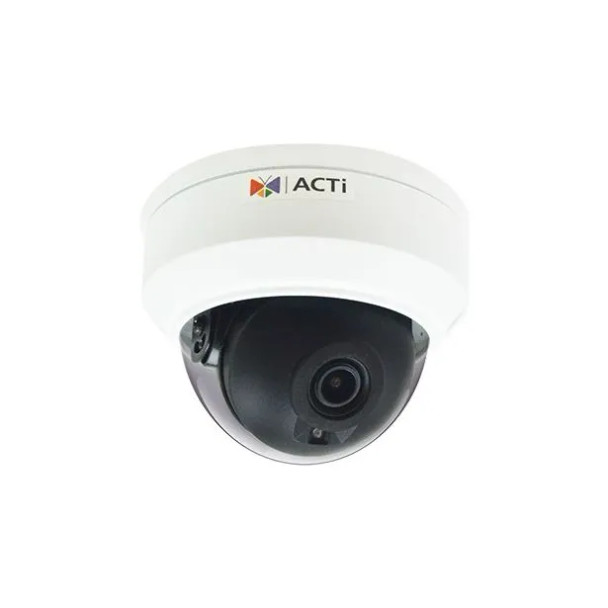

ACTi Z715 5MP Outdoor Mini Dome IP Security Camera with 2.8mm Lens and Built-In IR
The ACTi Z715 is a high-performance 5MP outdoor mini dome IP security camera designed for professional surveillance applications. Equipped with a fixed 2.8mm lens (F1.6), it provides a 112.9° horizontal field of view, making it ideal for monitoring entrances, hallways, and open areas. The built-in adaptive IR LEDs enable night vision up to 30 meters, ensuring clear imaging in complete darkness. With a Superior Wide Dynamic Range (WDR) of 120 dB, the Z715 enhances visibility in high-contrast lighting conditions. AI-powered analytics support people detection, vehicle detection, object tracking, and intrusion detection for intelligent security monitoring. The camera features a built-in microphone for one-way audio, allowing real-time audio monitoring. Its rugged IP67 and IK10-rated housing ensures protection against dust, water, and physical impact. Supporting H.265, H.264, and MJPEG compression, the Z715 optimizes bandwidth and storage efficiency.
Key Features:
- 5MP resolution; delivers high-definition video with sharp detail.
- 25 fps at 2880 x 1620; ensures smooth and clear recording.
- 2.8mm fixed lens (F1.6); provides a wide 112.9° horizontal field of view.
- Built-in IR; enables night vision up to 30 meters.
- Superior Wide Dynamic Range (WDR) at 120 dB; enhances visibility in high-contrast lighting.
- AI-powered analytics; supports people detection, vehicle detection, object tracking, and intrusion alerts.
- Built-in microphone; supports one-way audio for real-time monitoring.
- IP67-rated weatherproof housing; protects against dust, water, and extreme conditions.
- IK10 vandal-proof metal casing; ensures resistance to physical impact and tampering.
- H.265, H.264, and MJPEG video compression; optimizes bandwidth and storage usage.
- ONVIF compliant; ensures seamless integration with third-party security systems.
- Multi-streaming capability; supports dual streams with customizable resolution and compression.
- Motion detection with multiple configurable zones; triggers alerts and automated responses.
- Operating temperature range of -30°C to 60°C (-22°F to 140°F); designed for extreme environments.
- Privacy masking with configurable regions; enhances security and compliance.
- Secure network access; supports HTTPS encryption, IP filtering, and user-level authentication.
Downloads
Additional Information
Aperture:
|
F1.6
|
Camera Style:
|
Dome
|
Compression:
|
H.264
H.265
MJPEG
|
Day/Night:
|
|
Dimensions:
|
109 mm × 83 mm (4.3" × 3.3")
|
Durability:
|
Weather Resistant
Vandal Resistant
|
Environmental:
|
Outdoor
|
Iris:
|
Fixed Iris
|
Lens Size:
|
2.8mm
|
Power Supply:
|
PoE (IEEE 802.3af)
12 VDC
|
Protection Code:
|
IP67
IK10
|
Resolution:
|
5MP (3K)
|
SD Card Support:
|
SD Card Supported
|
Sensor Size:
|
1/2.7"
|
Sensor Type:
|
CMOS
|
Technology:
|
Network (IP)
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
