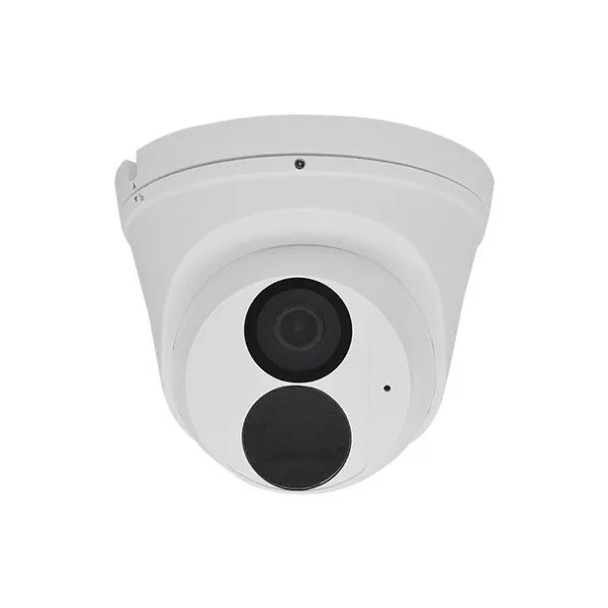

ACTi Z72 4MP Outdoor Dome IP Security Camera with 2.8mm Lens and Built-In IR
The ACTi Z72 is a high-resolution 4MP outdoor dome IP security camera designed for professional surveillance applications. Equipped with a fixed 2.8mm lens (F1.6), it provides a 101.1° horizontal field of view, making it ideal for monitoring entrances, hallways, and open areas. The built-in adaptive IR LEDs enable night vision up to 40 meters, ensuring clear imaging in complete darkness. With a Superior Wide Dynamic Range (WDR) of 120 dB, the Z72 enhances visibility in high-contrast lighting conditions. AI-powered analytics support tampering detection and intrusion detection for intelligent security monitoring. The camera features a built-in microphone for one-way audio, allowing real-time audio monitoring. Its rugged IP68 and IK10-rated metal casing ensures durability against extreme weather and physical impact. Supporting H.265, H.264, and MJPEG compression, the Z72 optimizes bandwidth and storage efficiency.
Key Features:
- 4MP resolution; delivers high-definition video with sharp detail.
- 25 fps at 2688 x 1520; ensures smooth and clear recording.
- 2.8mm fixed lens (F1.6); provides a wide 101.1° horizontal field of view.
- Built-in IR; enables night vision up to 40 meters.
- Superior Wide Dynamic Range (WDR) at 120 dB; enhances visibility in high-contrast lighting.
- AI-powered analytics; supports tampering detection and intrusion alerts.
- Built-in microphone; supports one-way audio for real-time monitoring.
- IP68-rated weatherproof housing; protects against dust, water, and extreme conditions.
- IK10 vandal-proof metal casing; ensures resistance to physical impact and tampering.
- H.265, H.264, and MJPEG video compression; optimizes bandwidth and storage usage.
- ONVIF compliant; ensures seamless integration with third-party security systems.
- Multi-streaming capability; supports dual streams with customizable resolution and compression.
- Motion detection with multiple configurable zones; triggers alerts and automated responses.
- Operating temperature range of -30°C to 50°C (-22°F to 122°F); designed for extreme environments.
- Privacy masking with configurable regions; enhances security and compliance.
- Secure network access; supports HTTPS encryption, IP filtering, and user-level authentication.
Downloads
Additional Information
Aperture:
|
F1.6
|
Camera Style:
|
Dome
|
Compression:
|
H.264
H.265
MJPEG
|
Day/Night:
|
|
Dimensions:
|
118 mm × 95 mm (4.6" × 3.8")
|
Durability:
|
Vandal Resistant
Weatherproof
|
Environmental:
|
Outdoor
|
Iris:
|
Fixed Iris
|
Lens Size:
|
2.8mm
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
Protection Code:
|
IK10
IP68
|
Resolution:
|
4MP
|
SD Card Support:
|
SD Card Supported
|
Sensor Type:
|
CMOS
|
Technology:
|
Network (IP)
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
