Description

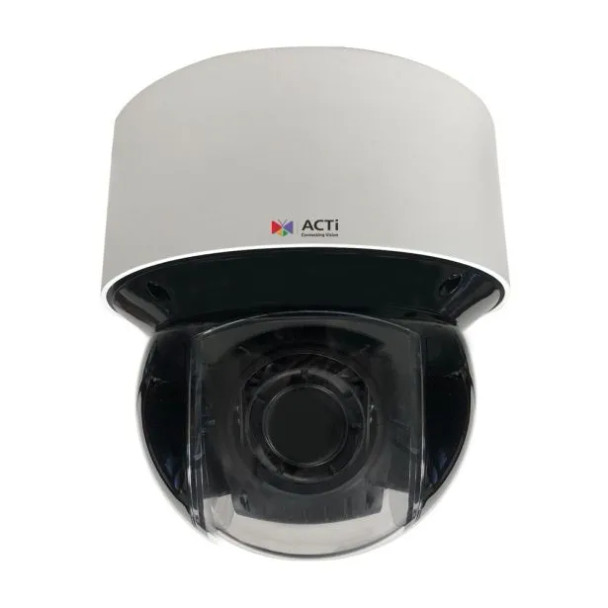

ACTi Z959 4MP Outdoor PTZ IP Security Camera with 5.5-88mm Lens, 16x Optical Zoom and Built-In IR
The ACTi Z959 is a high-performance 4MP outdoor PTZ IP security camera designed for flexible and long-range surveillance applications. Featuring a 16x optical zoom lens (5.5-88mm, F1.78-F3.73) with autofocus and endless 360° pan and tilt functionality, this camera provides precise coverage for critical security environments. The adaptive IR LEDs ensure night vision up to 120 meters, delivering clear imaging in complete darkness. With an Extreme Wide Dynamic Range (WDR) of 140 dB, the Z959 enhances visibility in high-contrast lighting conditions. Designed for durability, its rugged IP66 and IK10-rated housing ensures protection against harsh weather and physical impact. Supporting H.265, H.264, and MJPEG compression, the Z959 optimizes bandwidth and storage efficiency.
Key Features:
- 4MP resolution; delivers high-definition video for precise surveillance.
- 30 fps at 2688 x 1520; ensures smooth and high-quality recording.
- 16x optical zoom lens (5.5-88mm, F1.78-F3.73); enables long-range monitoring with sharp clarity.
- Built-in IR with adaptive IR LED; provides night vision up to 120 meters.
- Extreme Wide Dynamic Range (WDR) at 140 dB; enhances visibility in high-contrast lighting.
- Endless 360° pan and tilt; provides continuous and flexible area coverage.
- IP66-rated weatherproof housing; protects against dust, water, and extreme conditions.
- IK10 vandal-proof metal casing; ensures resistance to physical impact and tampering.
- H.265, H.264, and MJPEG video compression; optimizes bandwidth and storage usage.
- ONVIF compliant; ensures seamless integration with third-party security systems.
- Multi-streaming capability; supports dual streams with customizable resolution and compression.
- Motion detection with multiple configurable zones; triggers alerts and automated responses.
- High PoE (IEEE802.3at) support; simplifies installation with power and data over a single cable.
- Operating temperature range of -40°C to 65°C (-40°F to 149°F); designed for extreme environments.
- Privacy masking with 24 configurable regions; enhances security and compliance.
- Secure network access; supports HTTPS encryption, IP filtering, and user-level authentication.
Downloads
Additional Information
Aperture:
|
F1.8
F3.73
|
Camera Style:
|
PTZ
|
Compression:
|
H.264
H.265
MJPEG
|
Day/Night:
|
|
Dimensions:
|
167 mm × 181 mm (6.6" × 7.1")
|
Durability:
|
Dust Resistant
Vandal Resistant
Weather Resistant
|
Environmental:
|
Outdoor
|
Iris:
|
Auto (DC-iris)
|
Lens Size:
|
5.5-88mm
|
Power Supply:
|
12 VDC
PoE+ (IEEE802.3at)
|
Protection Code:
|
IK10
IP66
|
Resolution:
|
4MP
|
SD Card Support:
|
SD Card Supported
|
Sensor Size:
|
1/2.9"
|
Sensor Type:
|
CMOS
|
Technology:
|
Network (IP)
|
Wide Dynamic Range (WDR):
|
WDR 140dB
|
