Aiphone
Aiphone AX-DVF Vandal-Resistant Stainless Steel Flush-Mount Color Video Door Station
- SKU:
- AX-DVF
- UPC:
- 790143415358
Frequently bought together:
Description

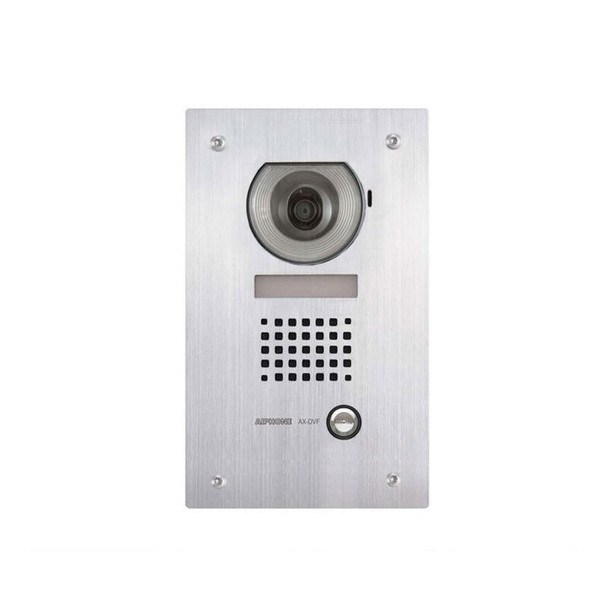

Aiphone AX-DVF-P Video Door Station
Keep the facility safe from intruders and unwanted personnel with the help of the Aiphone AX-DVF-P Video Door Station. Equipped with a built-in HID ProxPoint Plus (6005B) card reader, it allows safe access at all times. The CCD camera connects with the AX central exchange and renders quality imaging. Communicate freely with the 2-way hands- free voice communication and a call button. This video door station can be flush mounted using tamper resistant screws.
AX Series Integratable Audio/Video Security System.
Key features:
- 24V DC power source
- RJ45 jack (CAT-5e) wiring connection
- Hands-free communication (Auto-voice actuated or Press-to-talk)
- ¼" color CCD camera
- 250,000 pixels
- 5 lux minimum illumination
- HID ProxPoint Plus (6005B) card reader
- 14-140° F operating temperature
- Flush mounting
- Stainless steel front panel
- Main Unit - Resins
- Back box - Steel plate
- Stainless steel, brush finished
- Tamper resistant screws for mounting
- 11 5/8"H X 5¾"W X 1 7/8"D
- Approx. 1.68 Lbs.(760 gm)
Downloads
Datasheet
Aiphone-AX-DVF-Vandal-Resistant.pdf
Additional Information
Optional RS-232 Control: |
|
Warranty: |
2-year Manufacturer Warranty
|
Access Control Type: |
Video Door Station
|
Z-Wave Compatible: |
|
