Description

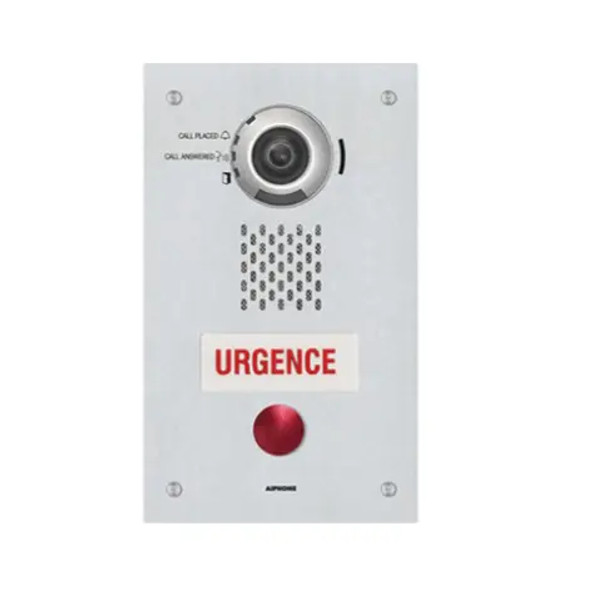

Aiphone IX-DVF-RA-FR IP Video Emergency Station with Call Button in French
The Aiphone IX-DVF-RA-FR is a flush-mounted, vandal-resistant, and weather-resistant IP video intercom designed for emergency communication and secure access control. It features a stainless steel faceplate and an ADA-compliant emergency call button with raised lettering and Braille signage in French for accessibility. This station is SIP-compliant and ONVIF® Profile S-compliant, allowing seamless video integration with third-party security systems via ONVIF and RTSP streaming. The built-in 1.23-megapixel CMOS camera provides adjustable vertical angles (+15º, 0º, -8º) for optimal visitor identification. Audio and video recordings of active conversations can be captured and stored on a microSD™ card. Designed for durability, the unit is IP65-rated for weather resistance and IK08-rated for impact protection. With two contact outputs and six trigger inputs, the IX-DVF-RA-FR supports seamless integration with security and emergency response systems. Ideal for commercial and public safety applications, the Aiphone IX-DVF-RA-FR provides secure and efficient entry management with flexible credentialing options.
Key Features:
- ADA-compliant emergency call button; raised lettering and Braille signage in French
- SIP-compliant and ONVIF® Profile S-compliant; enables integration with third-party security systems
- 1.23-megapixel CMOS camera with adjustable vertical angles; ensures optimal visitor identification
- PoE-powered with PoE pass-through; supports IEEE 802.3af class 0 and 802.3at Type 2 PoE+
- Full-duplex audio communication; delivers clear, hands-free conversations
- Supports microSD™ card storage (not included); allows audio and video recording for security monitoring
- Two contact outputs and six trigger inputs; enables integration with alarms and security automation
- Stainless steel construction with IP65 and IK08 ratings; ensures weather and impact resistance
- Secure Ethernet communication; supports IPv4, IPv6, SIP, HTTPS, RTP, RTSP, and IEEE 802.1X security protocols
- Wide operating temperature range of -40°F to 140°F (-40°C to 60°C); suitable for extreme conditions
- Dimensions of 11-11/16" h x 7" w; compact and durable design for emergency applications
- Flush-mounted with included back box; compatible with SBX-IDVFRA stainless steel surface mount box and emergency wall boxes
