Aiphone IX-DVM Mullion-mount IP Video Door Station with Touchless Calling and HD Camera, Award Winner

Brand: Aiphone
Part Number: IX-DVM
Write a Review

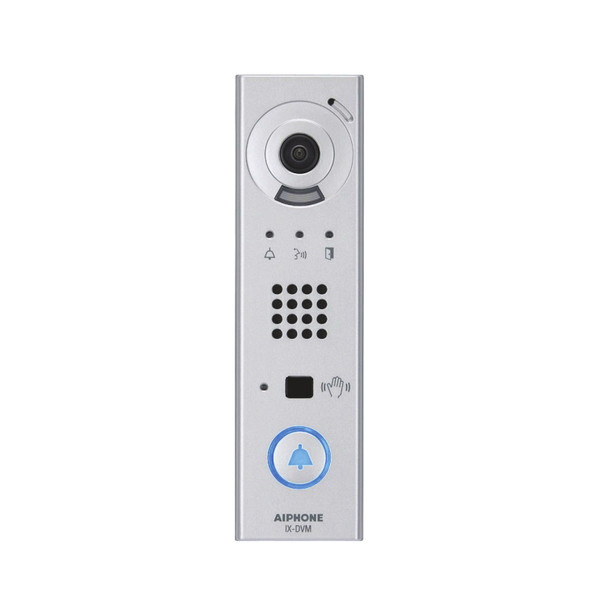

  • Aiphone IX-DVM Mullion-mount IP Video Door Station with Touchless Calling and HD Camera, Award Winner - 1

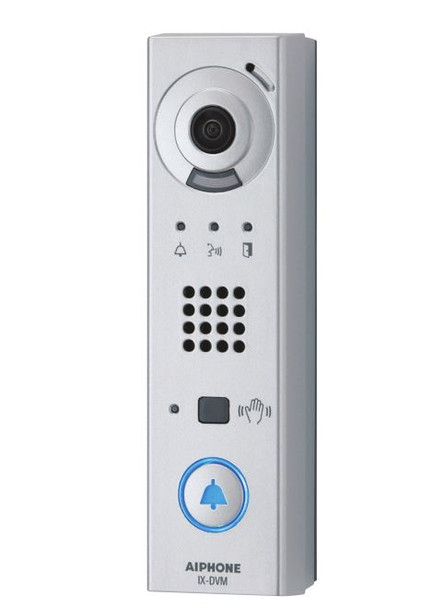

  • Aiphone IX-DVM Mullion-mount IP Video Door Station with Touchless Calling and HD Camera, Award Winner - 2
$1,868.00
$993.61
— You save $874.39
Free shipping over $300 Free Shipping
Technical Support Technical Support
  • Compression : H.264, MJPEG,
  • Field of View (Horizontal) : 170°Field of View
  • Protection Code : IP54 IK07
  • Access Control Type : Video Door Station
  • Audio Support : Built-in Microphone Built-in Speaker

Description

Aiphone IX-DVM Mullion-mount IP Video Door Station with Touchless Calling and HD Camera, Award Winner

Our IX-DVM won the SIW 2022 Readers' Choice Awards for top product in the COVID-19 Mitigation category. It has a built-in Class 1 laser sensor for touchless calling, helping to reduce germs in high-traffic areas. The IX-DVM is a UL Listed mullion-mount IP video door station that is weather and vandal resistant. The station is equipped with a 720p HD, wide dynamic range camera that can be streamed to third-party devices using ONVIF® Profile S or RTSP. Video can be captured on a microSD™ card.

The IX-DVM can be programmed to call up to 20 different stations with three different call level selections.

Sound files can be uploaded for custom messages to be played during certain functions (door release, call placed, communication start, error message, and more). The stations have audible and LED indicators for calling, communication, and door release.

There is one contact output that can be used for door release, and one input that can be used to trigger an outgoing call or answer a call/page.

Key Features:

  • Small form factor for mullion mounting
  • Contactless call sensor
  • SIP 2.0 compliant
  • 720p HD, wide dynamic range camera
  • White LED for low-light illumination
  • ONVIF Profile S compliant
  • Slot for microSD™ card (not provided by Aiphone)
  • One contact output
  • One trigger input
  • 802.3af PoE compliant
  • Certified DevConnect Technology Partner with Avaya IP Office, Avaya Aura  Communication Manager.
  • UL Listed and Manufactured in a TAA compliant country

Additional Information

Access Control Type:
Video Door Station
Audio Compression:
G.711ulaw G.711alaw G.722
Audio Support:
Built-in Microphone Built-in Speaker
Compatible Integration (API):
ONVIF Profile S
Compliance:
TAA (Trade Agreements Act)
Compression:
H.264 MJPEG
Durability:
Vandal Resistant Weather Resistant
Field of View (Horizontal):
170
Max Power Consumption:
4.6 Watts
Night Vision Type:
Night Vision (Color - White Light)
Operating Temperature:
-40 °C to 60 °C (-40 °F to 140 °F)
Power Supply:
PoE (IEEE 802.3af)
Product Series:
Aiphone IX Series
Protection Code:
IP54 IK07
Relay Output:
1 Channel
Resolution:
1MP
SD Card Support:
SD Card Supported
