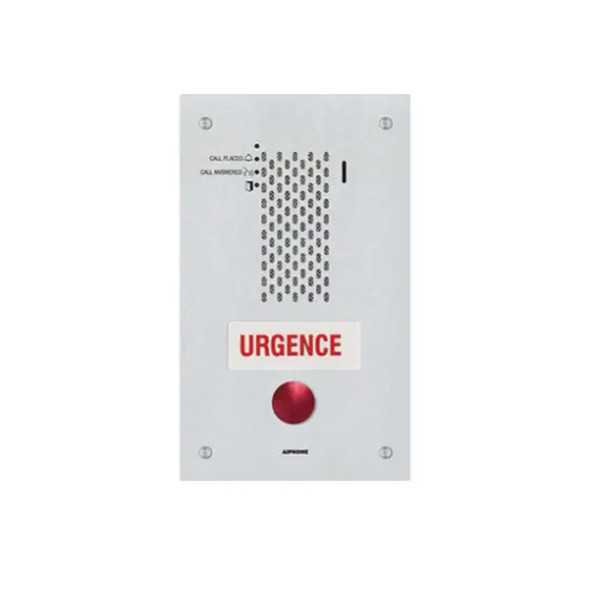

Aiphone IX-SSA-RA-FR 1-Call Button IP Emergency Station (French)
The Aiphone IX-SSA-RA-FR is a flush-mount, vandal-resistant, and weather-resistant IP emergency audio intercom station designed for high-security and public safety applications. It features an ADA-compliant emergency call button with raised lettering and Braille signage in French, ensuring accessibility for all users. This station is SIP-compliant and compatible with all IX and IXG Series devices, allowing seamless integration into existing IP communication systems. The unit includes PoE with PoE pass-through support, an illuminated call button indicator for visibility in low-light conditions, and a microSD card slot for audio recording. Rated IP65 for weather resistance and IK08 for impact protection, it is built for durability in demanding environments. With two contact outputs and six trigger inputs, the IX-SSA-RA-FR offers flexible connectivity for alarms and security automation. Ideal for commercial and public safety applications, the Aiphone IX-SSA-RA-FR provides secure and efficient entry management with flexible credentialing options.
Key Features:
- ADA-compliant emergency call button; raised lettering and Braille signage in French
- SIP-compliant and peer-to-peer communication; integrates with IX and IXG Series devices
- PoE-powered with PoE pass-through; supports IEEE 802.3af class 0 and 802.3at Type 2 PoE+
- Illuminated call button indicator; enhances visibility in emergency situations
- Two contact outputs and six trigger inputs; enables integration with security and alarm systems
- MicroSD card slot (not included); allows local audio recording for security monitoring
- Vandal-resistant and weather-resistant construction; rated IP65 for ingress protection and IK08 for impact resistance
- Full-duplex communication; supports clear and hands-free audio transmission
- Wide operating temperature range of -40°F to 140°F (-40°C to 60°C); suitable for extreme weather conditions
- Dimensions of 11-11/16" h x 7" w; compact and durable design for public safety installations
- Flush-mounted with included back box; compatible with SBX-IDVFRA stainless steel surface mount box and emergency wall boxes
