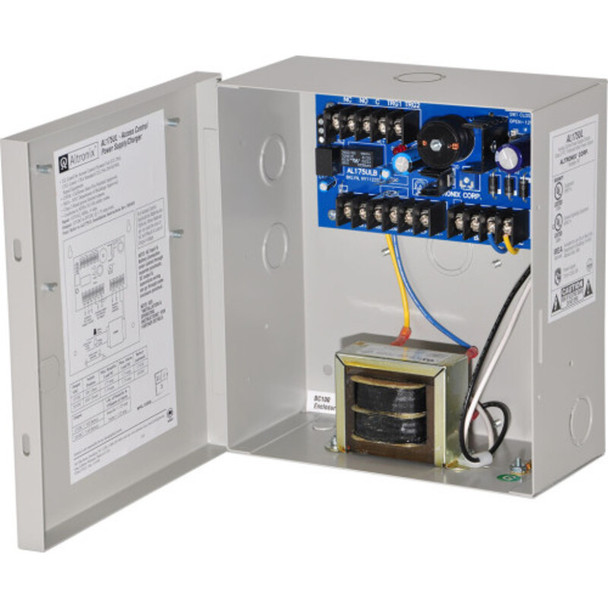

Altronix AL175220 Access Control Power Supply Charger - 2 PTC Class 2 Outputs

(No reviews yet) Write a Review
SKU:
AL175220
$129.94
Frequently bought together:

Description

Altronix AL175220 Access Control Power Supply Charger - 2 PTC Class 2 Outputs

Altronix AL175220 Switching Power Supply/Charger converts a 220VAC 50/60Hz input into two (2) individually PTC protected 12VDC or 24VDC outputs.

Key Features:

  • Input
    • Input 220VAC (working range 198VAC - 256VAC), 50/60Hz, 0.3A.
    • Access control trigger input.
  • Output
    • 12VDC or 24VDC selectable outputs.
    • 1.75A supply current.
    • Two (2) power-limited outputs.
    • Fail-Safe/Fail-Secure lock output (switched).
    • Auxiliary power output (unswitched).
    • PTC protected outputs, rated @ 2.5A.
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.
  • Battery Backup
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails.
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).
  • Visual Indicators
    • AC input and DC output LED indicators.
  • Temperature
    • Operating 0ºC to 49ºC (32ºF to 120ºF).
    • Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
    • Relative Humidity 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 12VDC: 11 BTU/Hr.
        • 24VDC: 22 BTU/Hr.
    • System AC input VA requirement: 66VA.

Downloads

View AllClose

Additional Information

Warranty:
Life-time Warranty
