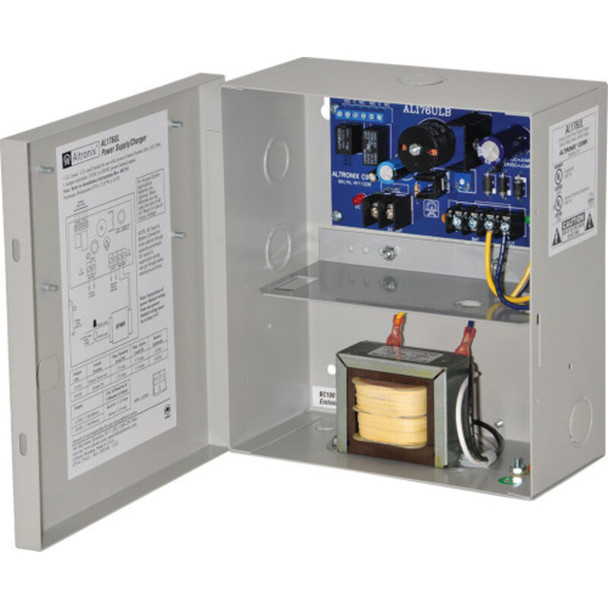

Altronix AL176220 Access Control Power Supply Charger - Single PTC Class 2 Output

Altronix AL176220 Access Control Power Supply Charger - Single PTC Class 2 Output

Altronix AL176220 is a single output Power Supply/Charger that converts a 220VAC (working range 198VAC - 256VAC), 50/60Hz input into a PTC protected 12VDC or 24VDC output.

Key Features:

• Input

  • Input 220VAC (working range 198VAC - 256VAC), 50/60Hz, 0.3A.

• Output

  • 12VDC or 24VDC selectable output.
  • 1.75A supply current.
  • PTC protected output, rated @ 2.5A.
  • Filtered and electronically regulated output.
  • Short circuit and thermal overload protection.

• Battery Backup

  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails.

• Supervision

  • AC fail supervision (form "C" contacts).
  • Low battery supervision (form "C" contacts).

• Visual Indicators

  • AC input and DC output LED indicators.

• Temperature

  • Operating 0ºC to 49ºC (32ºF to 120ºF).
  • Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
  • Relative Humidity 85% +/- 5%.

  • BTU/Hr. (approx.):

    • 12VDC: 11 BTU/Hr.
    • 24VDC: 22 BTU/Hr.
  • System AC input VA requirement: 66VA.
