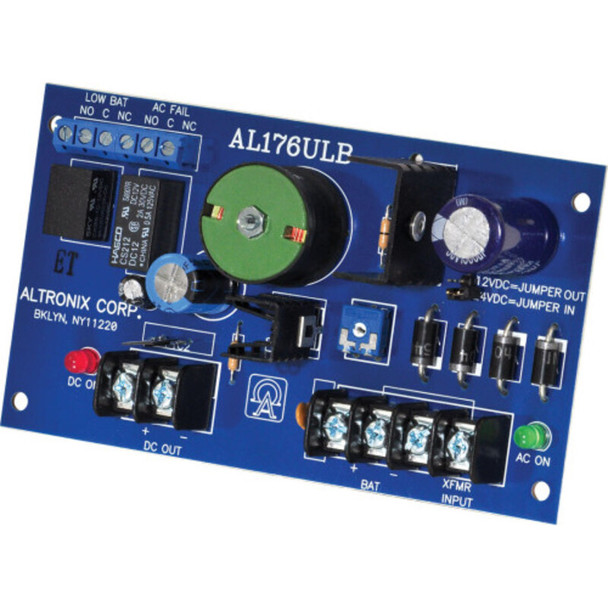

Altronix AL176ULB Access Control Power Supply Charger - Single PTC Class 2 Output

Brand:
Part Number: AL176ULB
Write a Review
$60.96
OR
Technical Support Technical Support
Lifetime Warranty Lifetime Warranty

Description

Altronix AL176ULB Access Control Power Supply Charger - Single PTC Class 2 Output

Altronix AL176ULB is a Single Output Power Supply/Charger that converts a low voltage AC input into a PTC protected 12VDC or 24VDC output.

Key Features:

  • Input
    • 28VAC, 56VA from UL Listed, Class 2 transformer.
  • Output
    • 12VDC or 24VDC selectable outputs.
    • 1.75A supply current.
    • Class 2 Rated power limited output.
    • PTC protected outputs, rated @ 2.5A.
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.
  • Battery Backup
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails.
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Low battery supervision (form "C" contacts).
  • Visual Indicators
    • AC input and DC output LED indicators.
  • Temperature
    • Operating 0ºC to 49ºC (32ºF to 120ºF).
    • Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
    • Relative Humidity 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 12VDC: 11 BTU/Hr.
        • 24VDC: 22 BTU/Hr.
    • System AC input VA requirement: 57.5VA.
