Altronix T1RM3F4 Access and Power Integration Kit

Brand: Altronix
Part Number: T1RM3F4
Write a Review
Free shipping over $300 Free Shipping
Fast Shipping Fast Shipping
Technical Support Technical Support
Lifetime Warranty Lifetime Warranty


Altronix T1RM3F4 Access and Power Integration Kit

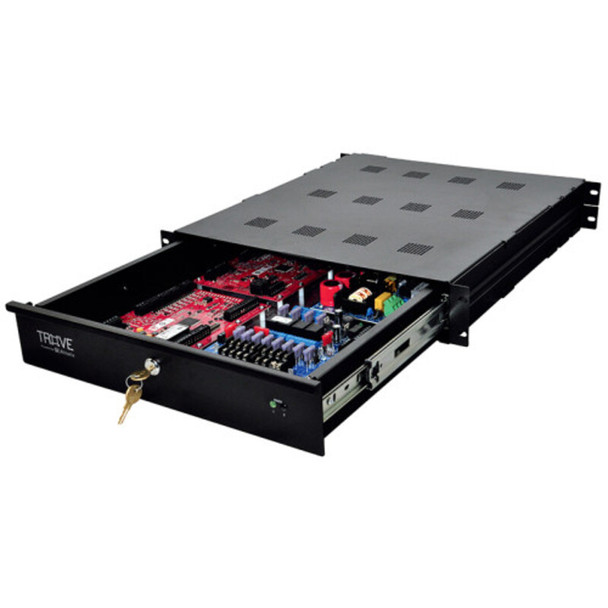

Altronix T1RM3F4 rack kit is pre-assembled and consists of Trove1M1R enclosure/backplane with factory installed Altronix power supply/charger and sub-assemblies. This kit also accommodates various combinations of Mercury boards for up to four (4) doors in a single enclosure.

Key Features:

  • Power Supply (eFlow6NB):
      • Input
        • Voltage: 120VAC, 60Hz, 3.5A max.
        • Fusing: 5A / 250V.
      • Output
        • Voltage: Factory set at 24VDC.
        • Current: 6A continuous.
        • Maximum Supply Current for Main and Aux. Outputs on eFlow6NB Power Supply board, PDS8 Power Distribution Module’s and ACM4 Access Power Controller’s outputs is 5.6A.
        • Auxiliary: Class 2 power-limited @ 1A (unswitched).
        • Other: Overvoltage protection. Filtered and regulated.
  • Battery Backup
    • Built-in charger for sealed lead acid or gel type batteries (if batteries are required, install separate battery enclosure RE2).
    • Automatic switch over to stand-by battery when AC fails.
    • Zero voltage drop when unit switches over to battery backup (AC failure condition).
  • Fire Alarm Disconnect
    • Supervised: Latching or non latching.
    • EOL: 10K Resistor.
  • Supervision
    • AC Failure: Form “C” contacts.
    • Battery: Form “C” contacts.
    • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
  • Indicators LED
    • Input: 120VAC is present.
    • DC Output: Powered.
    • Battery: Discharged or not connected.
  • Access Power Controller (ACM4):
      • Input
        • Voltage: 24VDC from eFlow6NB.
        • Fusing: 10A / 250V.
      • Output
        • Voltage: 24VDC.
        • Four (4) independently controlled 2.5A outputs:
        • a) Four (4) Fail-Safe and/or Fail-Secure power outputs.
        • b) Four (4) dry form “C” 5A rated relay outputs.
        • c) Any combination of the above.
        • Four (4) auxiliary power outputs (unswitched).
        • Fuses Rating: 3A / 32VDC.
      • Indicators (LED's)
        • Red LEDs: Outputs are triggered (relays energized).
        • Green LED: FACP disconnect is triggered.
  • Power Distribution Module (PDS8):
      • Input
        • Voltage: 24VDC from eFlow6NB and 12VDC from VR6.
        • Fusing: 10A / 250V.
      • Output
        • Voltage: 12 or 24VDC individually selectable.
        • Fuses Rating: 3A / 32VDC.
      • Indicators (LED)
        • DC Output: Eight (8) individual output LEDs.
  • Physical and Environmental (T1RM3F4):
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity 85% +/- 5%.
      • BTU/Hr (approx.):
        • 115 BTU/Hr.
