Access and Power Integration - Kit includes Trove2 enclosure with TKA2 backplane.

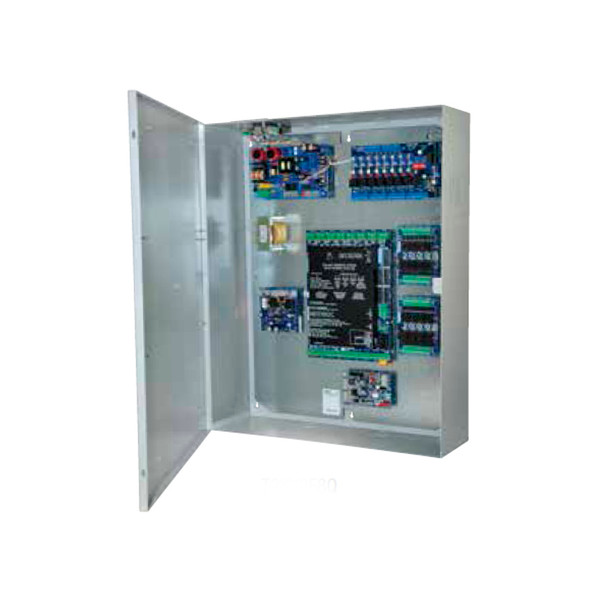

Altronix T2KK3F8 is pre-assembled and consist of Trove2 enclosure with factory installed Altronix power supply/chargers, transformer, and sub-assemblies. These kits also accommodate various combinations of Keyscan boards for up to eight (8) doors in a single enclosure.

Key features of Altronix T2KK3F8

• Input

  • 120VAC 60Hz/3.5A.

• Output

  • 24VDC up to 5.8A max current.
  • Eight (8) Fail-Safe/Fail-Secure or Dry Form “C″ Outputs.

• Fully assembled kit includes:

  • Trove2 enclosure with TKA2 backplane
  • One (1) eFlow6NB - Power Supply/Charger
  • One (1) ACM8 - Fused Access Power Controller
  • One (1) T16100 Transformer

• Back-up Battery (not included)

  • Capacity: 12AH / 12VDC (Up to 4 within enclosure); 40 AH / 65 AH (requires separate enclosure).
  • Type - Sealed lead acid or gel type.
  • Fuse Rating: 10A/32V.
  • Failover - Upon AC loss, instantaneous.

• Supervision

  • AC Failure - Form “C″ contacts.
  • Battery - Form “C″ contacts.
  • Low DC Power Shutdown - Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.

• LED Indicators

  • Input - 120VAC is present.
  • DC Output - Powered.
  • Battery - Discharged or not connected.

• Temperature

  • Operating 0ºC to 49ºC (32ºF to 120ºF).
  • Storage -20ºC to 70ºC ( -4ºF to 158ºF).
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr. (approx.): 111 BTU/Hr.
