Altronix T3SK75F16 16-Door Altronix/Software House Access and Power Integration Kit - Trove3SH3 with EFLOW104NB - EFLOW102NB

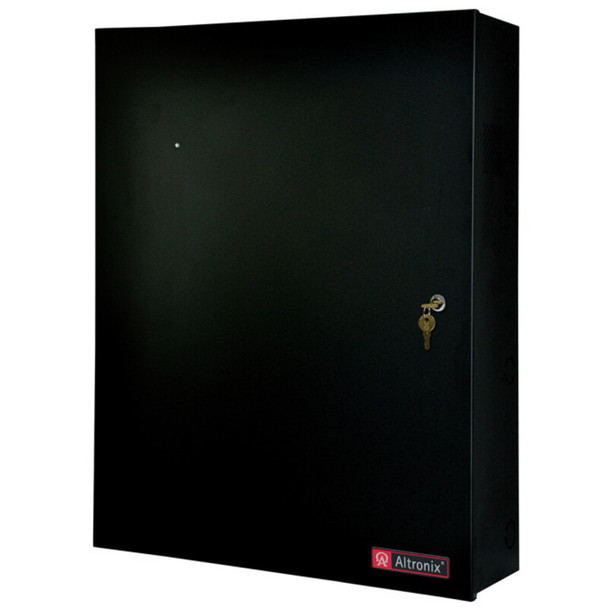

Altronix T3SK75F16 is pre-assembled and consists of Trove3 enclosure with factory installed Altronix power supply/chargers and sub-assemblies. These kits also accommodates various combinations of Software House boards for up to sixteen (16) doors in a single enclosure.

Key Features:

  • Input
    • 120VAC 60Hz/8.0A.
  • Output
    • 24VDC up to 9.2A max current.
    • Sixteen (16) Fail-Safe/Fail-Secure or Dry Form “C” Outputs
  • Fully assembled kit includes:
    • Trove3 enclosure with TSH3 backplane
    • One (1) eFlow104NB - Power Supply/Charger
    • One (1) eFlow102NB - Power Supply/Charger
    • Two (2) ACM8 - Fused Access Power Controller
    • One (1) PD8UL - Fused Power Distribution Module
    • One (1) Rocker Switch Bracket with Two (2) Rocker Switch
  • Back-up Battery (not included)
    • Capacity: 12AH / 12VDC (Up to 4 within enclosure); 40 AH / 65 AH (requires separate enclosure).
    • Type - Sealed lead acid or gel type.
    • Fuse Rating: 15A/32V.
    • Failover - Upon AC loss, instantaneous.
  • Supervision
    • AC Failure - Form “C” contacts.
    • Battery - Form “C” contacts.
    • Low DC Power Shutdown - Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
  • LED Indicators
    • Input - 120VAC is present.
    • DC Output - Powered.
    • Battery - Discharged or not connected.
  • Temperature
    • Operating 0ºC to 49ºC (32ºF to 120ºF).
    • Storage -20ºC to 70ºC ( -4ºF to 158ºF).
    • Relative Humidity 85% +/- 5%.
    • BTU/Hr. (approx.): 177 BTU/Hr.

Downloads

View AllClose

Additional Information

Warranty:
Life-time Warranty
