Description

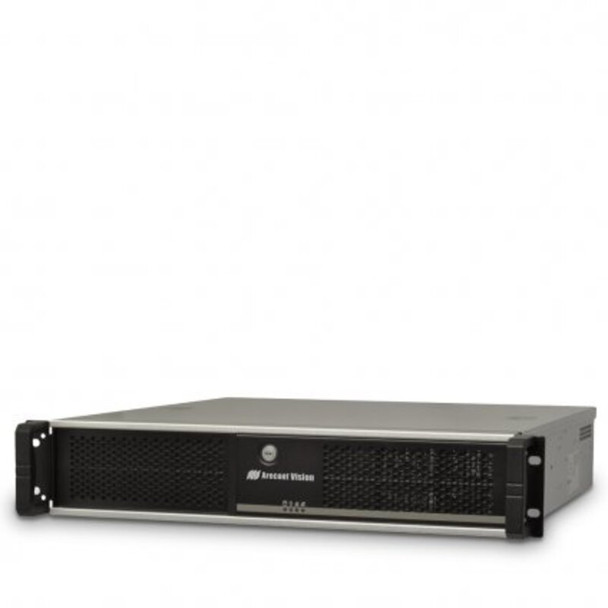

Arecont Vision AV-CSCX32TR 64 Channel Network Video Recorder
Arecont Vision ConteraCMR Cloud Managed servers are designed to offer maximum performance and reliability, paired with the powerful features and functionality of the ConteraWS web services platform. ConteraWS web services allows you to centralize user management, monitor the health of your recording system, and take advantage of time saving feature like online export and video or clip file sharing. Simply enable ConteraWS on your recorder, and then connect using the ConteraWS web client to manage recorder configurations and user access.
Note: ConteraWS License Sold Separately.
64 Channel Cloud Managed Rack Mountable Compact Network Video Recorder Server with Windows OS, Dual NIC, RAID5, and 32TB Storage Capacity
Key Features:
- Cloud Management with ConteraWS
- ConteraVMS Ready
- Cloud Video Export and Sharing
- 32TB Storage Capacity (24TB Usable with RAID5 Redundant Backup)
- 4 Removable Hard Disk Drives (HDDs)
- Windows OS
- 64 Max Channel Count
- IP Channel Upgrades
- Solid State OS Drive (SSD)
- RAID5
- Intel Core i5 Processor
- Dual NIC
- 2U Rack Mountable
- 3-Year Hardware Warranty
- 1-Year Advanced Replacement
Downloads
Datasheet
Arecont-Vision-AV-CSCX32TR-Datasheet-A1
Quick Start Guide
Arecont-Vision-AV-CSCX32TR-Quick-Start-Guide-A1
Compatible products
Video recorders will require additional parts in order to perform their function. CCTV Power supply, PoE Switches, hard drives, wireless mouse, recorder mount accessories and cables are just few to be mentioned. If you have any questions to complete your security camera system, please check with our sales team first. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
4K Support:
|
4K Supported
|
|
Alarm Input:
|
4 Channel
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Certifications:
|
UL Listed
|
|
Channel Capacity:
|
64 Channels
|
|
Color:
|
Black
|
|
Compatible Integration (API):
|
ONVIF Profile S
RTSP
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.264
|
|
Connection Type:
|
Wired
|
|
Dimensions:
|
429.2 x 88 x 457.2 mm (16.9 x 3.5 x 18 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
4 SATA Ports
|
|
Made in:
|
United States (USA)
|
|
Max Power Consumption:
|
126.2 Watts
|
|
Max. Recording Resolution:
|
4K
|
|
Max. Storage Capacity:
|
40 TB
|
|
Mounting:
|
Rack Mount
|
|
Power Supply:
|
100 to 240 V AC
|
|
Pre-Installed Storage:
|
32 TB
|
|
Processor (CPU):
|
Intel Core i5
|
|
Product Series:
|
Arecont Vision ConteraCMR Compact Series
|
|
RAID:
|
RAID 5
|
|
Rack Unit (U):
|
2U
|
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
|
Relay Output:
|
4 Channels
|
|
USB Interface:
|
2x USB 2.0
6x USB 3.0
|
|
Video Output:
|
2x HDMI
|
|
Warranty:
|
3-year Manufacturer Warranty
|
