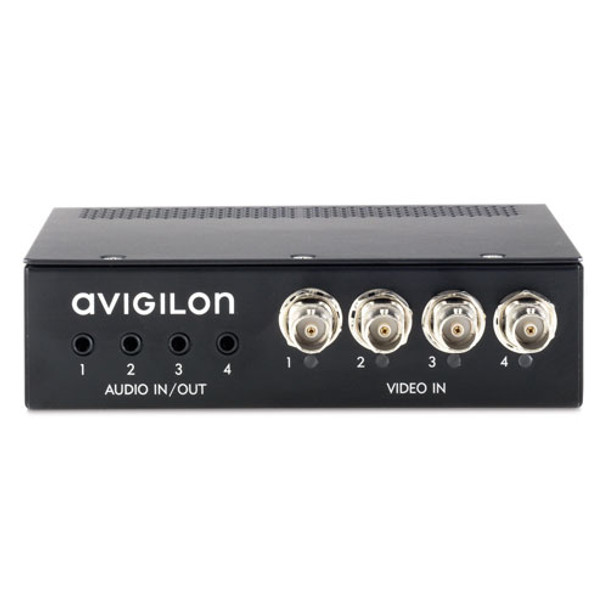

Avigilon ENC-4P-H264 4 Channel H.264 Video Encoder with Audio Support

Brand: Avigilon
Part Number: ENC-4P-H264
Write a Review
  • Avigilon ENC-4P-H264 4 Channel H.264 Video Encoder with Audio Support
  • Avigilon ENC-4P-H264 4 Channel H.264 Video Encoder with Audio Support
  • Avigilon ENC-4P-H264 4 Channel H.264 Video Encoder with Audio Support
Free shipping over $300 Free Shipping
Technical Support Technical Support
  • Compression : H.264, MJPEG,
  • Color : Black
  • Environmental : Indoor

Description

Avigilon ENC-4P-H264 4 Channel H.264 Video Encoder with Audio Support

Avigilon analog video encoders minimize bandwidth and storage requirements while capturing high-quality surveillance footage (in full resolution of up to 30 images per second per analog camera) for greater coverage and enhanced overall protection.

Using standard network equipment, the analog video encoder seamlessly integrates with the Avigilon Control Center system, Avigilon Blue cloud platform, and NVRs to create a network-based surveillance solution with unmatched performance, ease of use, and ease of installation. Plus they also feature 3D motion-adaptive de-interlacing for sharper, more accurate video.

Downloads

Compatible products

Additional Information

Accessory Type:
Video Encoder
Audio Capability:
Two-Way Audio
Audio Compression:
G.711 PCM
Audio Input:
4x 3.5mm
Audio Output:
4x 3.5mm
Channel Capacity:
4 Channels
Color:
Black
Compatible Integration (API):
ONVIF
Compression:
H.264 MJPEG
Dimensions:
140 x 123 x 38 mm (5.5 x 4.8 x 1.5 in)
Environmental:
Indoor
Max Power Consumption:
8 Watts
Mounting:
Rack Mount
Network Interface:
1x RJ-45 10M/100M Base-TX Ethernet
Operating Humidity:
20% to 80% RH (non-condensing)
Operating Temperature:
-10 °C to 50 °C (-4 °F to 122 °F)
PoE Standards:
IEEE 802.3af
Power Supply:
12 VDC 24 VAC PoE (IEEE 802.3af)
Resolution:
720 x 576
Serial Interface:
1x RS485
Video Input:
4x BNC
