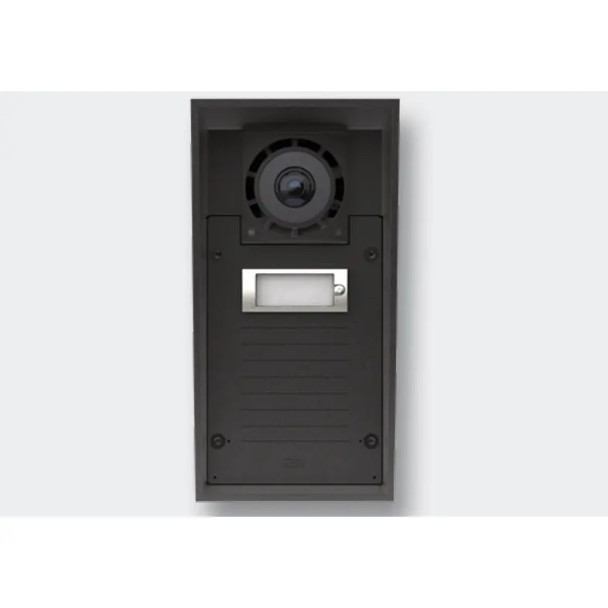

AXIS 2N IP Force 2.0 5MP Outdoor IP Video Intercom with 1 Button - 03361-001
The AXIS 2N IP Force 2.0 represents the pinnacle of durable IP video intercom technology, specifically engineered for demanding environments where maximum security, seamless access control, and precise visitor identification are essential. This advanced door station combines a high-resolution 5MP camera with crystal-clear audio communication, delivering professional-grade performance even in challenging outdoor conditions.
Built to withstand extreme environmental conditions, this video intercom features an exceptional IP69 and IK10 protection rating, ensuring reliable operation in dust, water, and high-impact scenarios. The integrated 5MP camera delivers clear color images even in low-light conditions, automatically switching to infrared night vision only when necessary. Advanced features include Wide Dynamic Range (WDR) technology to prevent glare and adaptive face zooming for excellent visitor verification.
Powered by the Axis ARTPEC-8 processor, the device enables enhanced security features including secure boot, signed firmware, and secure key store. The built-in OSDP interface provides encrypted RFID access and seamless integration with third-party access control systems, while supporting multiple card types including HID iClass and MIFARE DESFire.
Key Features:
- 5MP camera with 133° horizontal viewing angle and infrared illumination; ensures clear visitor identification day and night
- IP69 and IK10 protection rating with aluminum construction; provides maximum durability in harsh weather conditions
- PoE+ IEEE 802.3at power support with 30W max consumption; simplifies installation with single cable solution
- OSDP and Wiegand interfaces for card reader integration; enables secure encrypted access control
- H.264, H.265, and MJPEG video compression with up to 30fps; delivers flexible streaming options for various network conditions
- 10W/4Ω amplifier with 94dB sound pressure level; ensures clear communication in noisy environments
- Operating temperature range -30°F to +131°F; maintains reliable performance in extreme climates
- SIP 2.0 protocol support with full duplex audio; provides professional VoIP integration capabilities
Downloads
Additional Information
|
Compression:
|
H.264
MJPEG
H.265
|
|
Dimensions:
|
4.29x8.54x3.27in
|
|
Field of View (Horizontal):
|
133
|
|
Field of View (Vertical):
|
112
|
|
Lens Size:
|
1.935mm
|
|
Material:
|
Aluminum
|
|
Max Power Consumption:
|
30 Watts
|
|
Minimum Illumination (Color):
|
0.1 lux
|
|
Power Supply:
|
PoE+
12VDC
|
|
Protection Code:
|
IP69
IK10
|
|
Resolution:
|
5MP
|
|
Storage Temperature:
|
-40 °C to 70 °C (-40 °F to 158 °F)
|
|
Wide Dynamic Range (WDR):
|
|
