Description

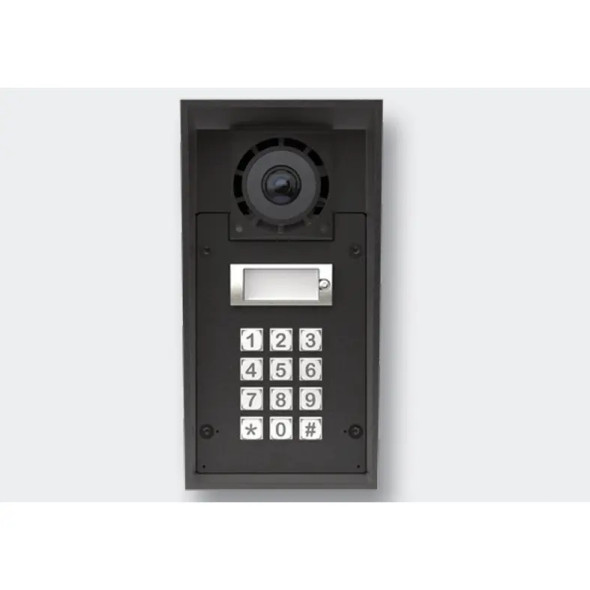

AXIS 2N IP Force 2.0 5MP Outdoor IP Video Intercom with 1 Button and Card Reader Ready - 03364-001
The AXIS 2N IP Force 2.0 card reader ready model provides comprehensive access control through visual verification, audio communication, and seamless RFID integration. This professional video intercom features pictogram indicators and is designed for easy integration with various card reader technologies, making it ideal for modern access control systems requiring multiple authentication methods.
Built to withstand the harshest conditions, this intercom delivers IP69 and IK10 protection with durable aluminum construction. The 5MP camera with wide-angle lens and infrared capabilities ensures clear visitor identification in all lighting conditions. Intuitive pictogram indicators provide visual feedback to users, while the card reader ready design allows for flexible deployment of RFID, NFC, or other proximity card technologies.
Featuring the advanced Axis ARTPEC-8 processor, this system provides enhanced security through secure boot, signed firmware, and encrypted communication protocols. The built-in OSDP interface ensures secure, encrypted card reader integration, while supporting multiple card formats including HID iClass and MIFARE DESFire. Professional audio capabilities with noise cancellation ensure clear communication even in busy environments.
Key Features:
- 5MP camera with 133° horizontal viewing angle and infrared illumination; provides exceptional visitor identification capabilities
- Card reader ready design with OSDP interface; enables secure integration with various RFID and proximity card systems
- Pictogram indicators for intuitive user guidance; improves user experience and system usability
- IP69 and IK10 protection rating with aluminum construction; ensures reliable operation in extreme weather
- PoE+ power delivery with 30W consumption; simplifies installation requirements
- H.264, H.265, and MJPEG compression support; offers flexible video streaming options
- 10W amplifier with adaptive volume control; delivers clear audio communication
- Operating temperature range -30°F to +131°F; maintains performance in challenging climates
Downloads
Additional Information
|
Compression:
|
H.264
H.265
MJPEG
|
|
Dimensions:
|
4.29x8.54x3.27in
|
|
Field of View (Horizontal):
|
133
|
|
Field of View (Vertical):
|
112
|
|
Lens Size:
|
1.935mm
|
|
Material:
|
Aluminum
|
|
Max Power Consumption:
|
30 Watts
|
|
Minimum Illumination (Color):
|
0.1 lux
|
|
Power Supply:
|
PoE+
12VDC
|
|
Protection Code:
|
IP69
IK10
|
|
Resolution:
|
5MP
|
|
Storage Temperature:
|
-40 °C to 70 °C (-40 °F to 158 °F)
|
|
Wide Dynamic Range (WDR):
|
|
