AXIS A4610 Network Card Reader - 03502-001

AXIS A4610 Network Card Reader - 03502-001

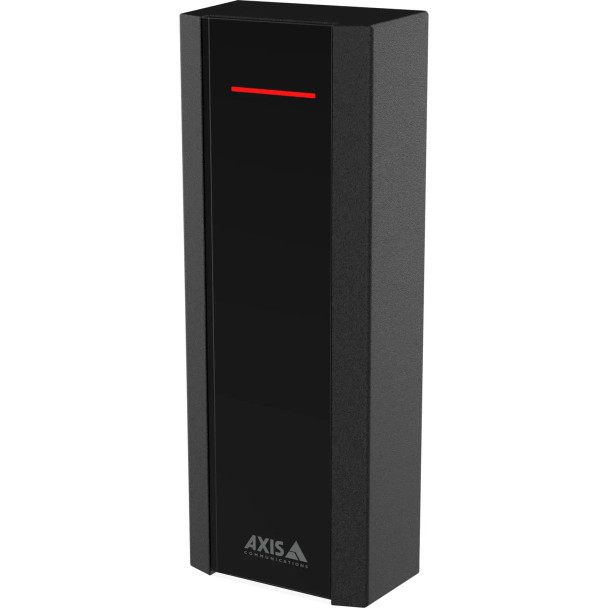

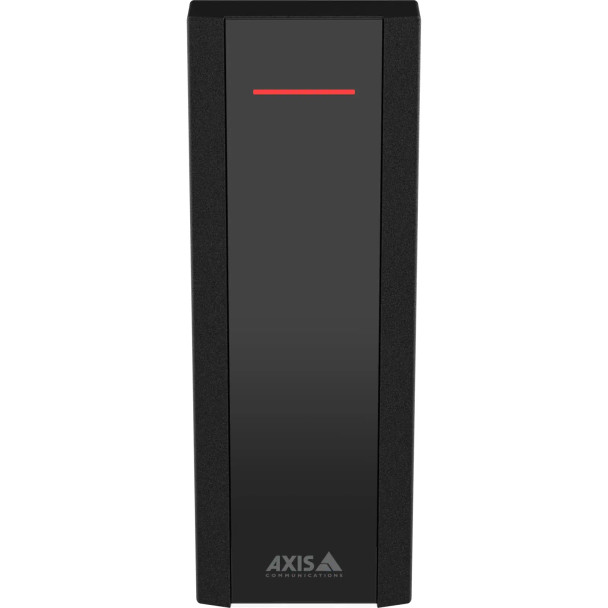

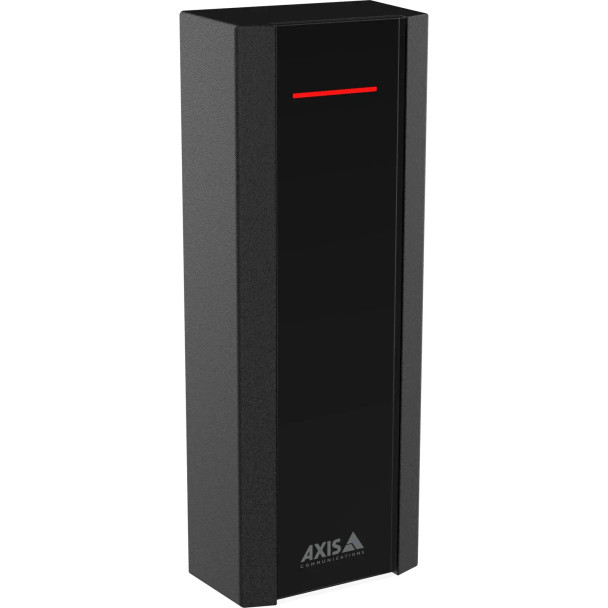

The AXIS A4610 is a compact, IP-based RFID network reader purpose-built for scalable access control deployments. Its mullion-mount form factor fits into tight installation spaces such as door frames and narrow surfaces, while integrated PoE (IEEE 802.3af) support reduces installation cost by eliminating separate power runs. As a complete door-side interface, the A4610 manages locks, door position sensors, and request-to-exit inputs from a single network-attached unit.

The reader supports 13.56 MHz ISO14443A/B credentials including MIFARE Classic, MIFARE Plus (level 1), and MIFARE DESFire EV1, EV2, and EV3 cards and fobs. Built-in cybersecurity features enable secure onboarding and signed firmware updates, while remote management allows administrators to push configuration changes and security patches from anywhere. As part of the Axis end-to-end access control portfolio, up to 16 A4610 readers can be paired with a single AXIS network door controller for flexible, scalable site rollouts.

Key Features:

• Complete IP-based door interface; manages reader, locks, and door position sensors from a single network device
• 13.56 MHz ISO14443A/B RFID support with MIFARE Classic, MIFARE Plus, and MIFARE DESFire EV1/EV2/EV3; broad compatibility with modern secure credential ecosystems
• IEEE 802.3af PoE and 12 VDC power options; simplifies installation and supports redundant power configurations
• Mullion-mount form factor; installs in narrow door frames where larger readers will not fit
• 1x form C dry relay and 2x digital inputs; native door lock control and tamper or REX input handling without auxiliary modules
• Built-in tamper switch; detects unauthorized removal from the wall or back plate for added physical security
• RGB LED stripe and audible buzzer; provides clear user feedback for access granted, denied, and system states
• IP54-rated plastic casing; protects against dust ingress and water splash for entrance environments
• HTTPS, SMTP, Syslog network support; integrates with enterprise monitoring and SIEM platforms
• TAA compliant; meets U.S. federal procurement requirements for government and enterprise projects
• Scales to 16 readers per AXIS door controller; supports facility-wide deployments through a unified Axis end-to-end solution
• 5-year warranty; reflects long-term reliability for mission-critical access control points
