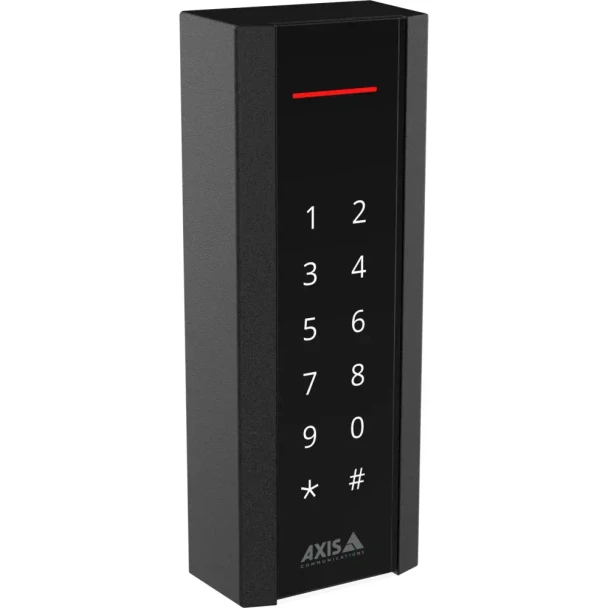

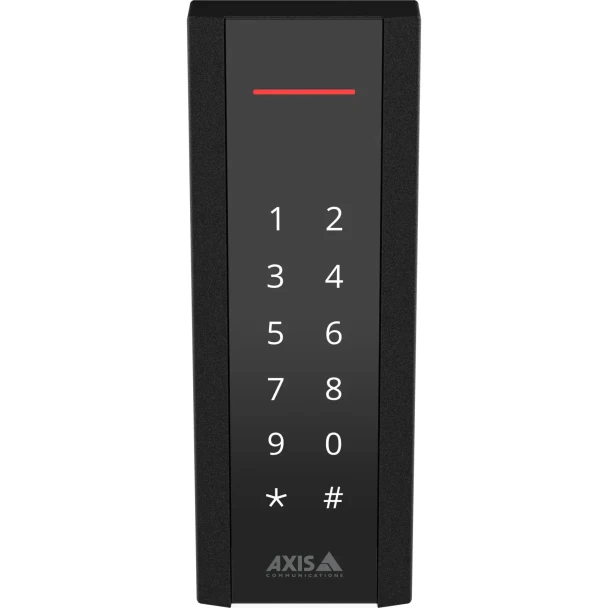

AXIS A4611 Network Reader with Keypad - 03503-001

AXIS A4611 Network Reader with Keypad - 03503-001

The AXIS A4611 is an IP-based network access control reader with an integrated touch keypad, engineered to provide a complete single-door interface — including door lock and door position sensor management — from a single PoE-powered mullion-mount device. Its slim mullion-style profile installs cleanly into tight spaces alongside door frames, elevator entries, and turnstiles, where full-size reader/keypad combinations don't fit.

The reader accepts card, tag, and PIN credentials for flexible single-factor or two-factor authentication and is compatible with 13.56 MHz ISO 14443-A RFID including MIFARE Classic, MIFARE Plus, and MIFARE DESFire EV1, EV2, and EV3 — covering the majority of enterprise credential ecosystems in production today. The intuitive touch keypad supports unlimited usage without mechanical wear and provides visual feedback through a keypad backlight, while a full-color RGB LED stripe and audible buzzer confirm access decisions to the user.

Deployment is simplified by PoE (IEEE 802.3af Type 1 Class 3) power over the same Ethernet drop that handles data, eliminating the need for a separate low-voltage supply at the door. A built-in tamper switch detects removal from the wall or back plate for security alerting, and integrated I/O provides one Form C relay (max 1A / 30V DC) plus two digital inputs for direct lock and door-sensor integration — so a single A4611 can manage the entire door without an external reader interface board.

The reader is TAA compliant, IP54 rated for indoor / semi-protected exterior installations, and operates from -40 °F to 140 °F across 5–95% RH humidity — suitable for entrances in demanding climates. Built-in cybersecurity features, HTTPS-encrypted management, and remote-management capability for firmware updates and configuration make the A4611 a strong fit for enterprise, government, and multi-site access control deployments. A 5-year AXIS manufacturer warranty backs long-term reliability, and the reader integrates natively with AXIS network door controllers.

Key Features:

• Complete single-door interface: manages door lock, door position sensor, and access decisions from one PoE-powered device
• Multi-factor authentication supporting card, tag, and PIN; enables flexible per-door security policy
• 13.56 MHz ISO 14443-A RFID; compatible with MIFARE Classic, MIFARE Plus, MIFARE DESFire EV1, EV2, and EV3
• Intuitive touch keypad with backlight; supports unlimited usage without mechanical wear
• RGB LED stripe and audible buzzer feedback; clear at-a-glance access decision confirmation
• Mullion-mount slim profile; installs cleanly alongside door frames, elevator entries, and turnstiles
• PoE (IEEE 802.3af Type 1 Class 3) or 12 VDC power; 12W max — single Ethernet drop for power and data
• Built-in tamper switch; detects removal from wall or back plate for security alerting
• Integrated I/O: 1x Form C relay (max 1A / 30V DC) + 2x digital inputs; direct lock and door-sensor connection without external board
• IP54-rated plastic casing in black; suitable for indoor and semi-protected exterior installations
• Wide operating range -40 °F to 140 °F at 5-95% RH non-condensing; reliable in demanding climates
• Cybersecurity features including HTTPS-encrypted management; secure remote configuration and firmware updates
• TAA compliant; meets U.S. federal procurement requirements for government and enterprise projects
• Multi-language support (English, German, French, Spanish, Italian, Japanese, Dutch, Czech); global deployment ready
• Native integration with AXIS network door controllers and credentials; part of a complete Axis end-to-end solution
• 5-year AXIS manufacturer warranty; reflects long-term operational reliability for professional installations
• PVC-free, BFR/CFR-free construction; supports sustainable installation standards
• CE, FCC, ICES certified; cleared for use in North American, European, and Canadian markets
