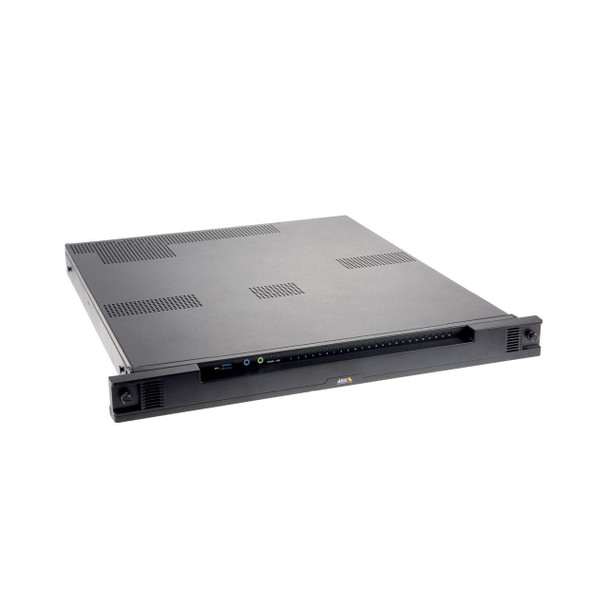

AXIS Camera Station S2224 Appliance with 12TB HDD 01583-004

All-in-one recorder with integrated 24 channel PoE switch for high-definition surveillance.

AXIS Camera Station S2224 Appliance is an all-in-one recording solution with integrated PoE switch designed to deliver reliable high-definition surveillance. This easy-to-install recorder is available as a rack server with 24 video channels, and includes a storage capacity of 12 TB plus the possibility to add extra hard disks. It comes with 24 AXIS Camera Station licenses and preconfigured software to minimize installation time.

AXIS Camera Station S2224 Appliance is extensively tested with our wide range of Axis quality products to provide you with an affordable, end-to-end solution with unbeatable reliability. All hardware components, including the PoE switch and storage units, are validated to meet the demands for reliable high definition surveillance up to 4K Ultra HD. This easy-to-install solution for mid-sized installations provides you with everything you need to help ensure every customer installation is trouble-free.

With outstanding usability, AXIS Camera Station S2224 Appliance is designed for fast installation and setup. The integrated recording toolbox gives you easy access to a complete end-to-end solution with total control over your entire surveillance system.

Furthermore, AXIS S2224 features an integrated PoE switch. It comes with AXIS Camera Station licenses and pre-configured software so out-of- the-box you get seamless and reliable integration to all your Axis network cameras. And thanks to greater storage flexibility you can fully customize your system storage and add extra hard drives.

AXIS S2224 Appliance contains a powerful CPU to allow for fast processing of data. The operating system is stored on a Solid-State Drive (SSD) meaning system start-up is fast, and the operating system will not be affected in the event of failure of the recording storage hard drives. For extra security, AXIS S2224 includes multiple RAID-configured hard drives for increased performance and storage capacity providing even more reliable data storage, with built-in protection against data loss in the event of drive failure.

Key Features:

  • All-in-one solution with integrated PoE switch
  • Flexible storage options including RAID
  • Ease of installation
  • Validated with extensive support
  • AXIS Camera Station licenses included
  • Includes 24 AXIS Camera Station Core Device licenses
  • Intel® Core i5
  • 12 TB (2x6 TB) Surveillance Class HDD
  • 24 ports integrated, 260 W total power budget
  • Max 520 W, 260 W PoE dedicated
  • 24x PoE ports 10/100 Mbps
  • 1x SFP 10/100/1000 Mbps
  • 1x RJ45 10/100/1000 Mbps

AXIS S2208

AXIS S2212 AXIS S2216AXIS S2224

Form Factor

Standalone Standalone 1U rack server 2U rack server
AXIS Camera Station                                                                  Yes
Included licenses 8 12 16 24
Out-of-the-box storage 4 TB 6 TB 8 TB 12 TB
Free hard drive slots for extra storage 1 1 2 2

(No RAID on default)

(No RAID on default)
Operating system                                          Microsoft Windows 10 Enterprise
Integration of third-party cameras*                                                                   Yes
