AXIS F1025 1080p HDTV Indoor Sensor Unit, 12m Cable - 0734-001
✅ Help me pick a security camera
🖥 Connect Your Axis Camera to YouTube
- Max. FPS and Resolution : 30fps at 1080P
- Lens Type : Fixed Lens
- Lens Size : 3.7mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/2.8" Sensor
- Environmental : Indoor
- Sensor Size : 1/2.8"
Description

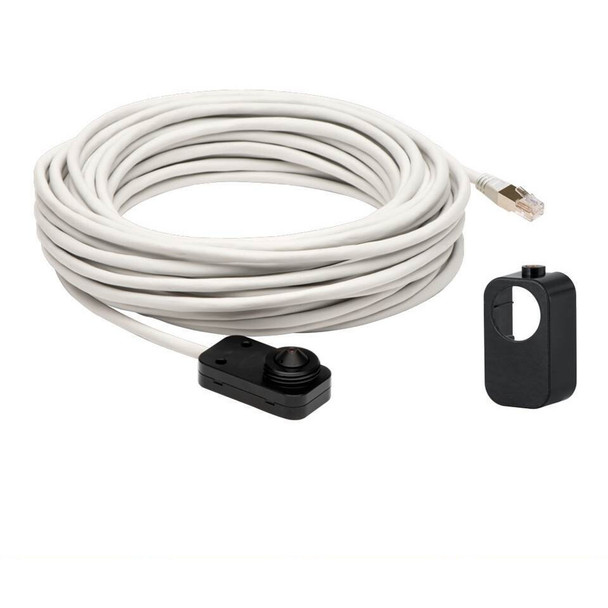

AXIS F1025 1080p HDTV Indoor Sensor Unit, 12m Cable - 0734-001
AXIS F1025 Sensor Unit, together with an AXIS F Main Unit, is ideal for use in extremely discreet indoor surveillance applications, such as in ATMs (automated teller machines), banks, stores, hotels and elevators. The small AXIS F1025 unit can be installed, for instance, in tight places, in doorways, behind metal sheets or flush-mounted in a wall or ceiling, with only a pin hole visible for the lens.
AXIS F1025 comprises an image sensor with 1080p resolution (1920 x 1080 pixels) and a pinhole lens that provides a wide 92° horizontal field of view.
AXIS F1025 also supports Wide Dynamic Range (WDR) - Forensic Capture, which can be activated when the sensor unit is connected to a main unit that supports this feature. WDR - Forensic Capture enables a high level of detail to be visible in both the bright and dark areas of a scene.
AXIS F1025 comes with a 3-m or 12-m (10ft. or 39ft.) pre-mounted cable for connection to an AXIS F Main Unit. An AXIS F8202 Straight Mounting Bracket is included for mounting on a flat surface.
At left, image without WDR - Forensic Capture, where only details in the bright areas are visible. At right, image from AXIS F1025 Sensor Unit and AXIS F41 Main Unit with WDR - Forensic Capture, where details in both bright and dark areas are visible.
Key Features:
- Suitable for Discreet Surveillance
- Pinhole Camera Designed for Indoor Use
- Color CMOS Sensor
- Minimum Illumination: 0.3 Lux
- Mounting Bracket Included
- Flexible, extremely discreet design for indoor use
- Pinhole lens with 1080p resolution
- Wide 92° horizontal field of view
- Supports WDR - Forensic Capture (with AXIS F41/F44 Main Unit)
Downloads
Videos
View AllCloseCompatible products
Additional Information
Camera Style: |
Pinhole
|
Environmental: |
Indoor
|
Key Features: |
Wide Dynamic Range (WDR)
|
Lens Size: |
3.7mm
|
Lens Type: |
Fixed Lens
|
Max. FPS and Resolution: |
30fps at 1080P
|
NDAA Compliance: |
NDAA Compliant
|
Product Series: |
AXIS F10 Series
|
Resolution: |
2MP
|
Sensor Size: |
1/2.8"
|
Sensor Type: |
CMOS
|
Special Technologies: |
WDR Forensic Capture
|
Technology: |
Network (IP)
|
Warranty: |
3-year Manufacturer Warranty
|
