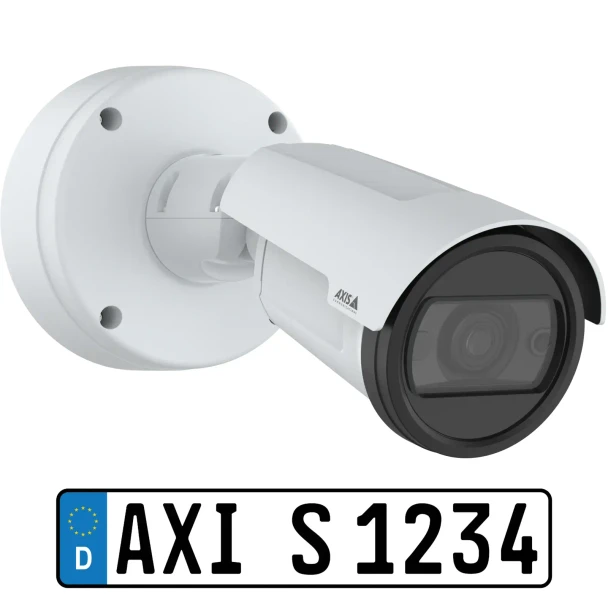

AXIS P14 Series P1486-LE Kit 3MP Outdoor Bullet IP Security Camera with 10-40mm Lens and Built-In IR - 03618-001

AXIS P14 Series P1486-LE Kit 3MP Outdoor Bullet IP Security Camera with 10-40mm Lens and Built-In IR - 03618-001

The AXIS P1486-LE Kit is a purpose-built license plate recognition solution from the AXIS P14 Series, pairing a 3MP outdoor bullet camera with AXIS License Plate Verifier preinstalled. Its 1/1.8" progressive scan RGB CMOS sensor with global shutter captures fast-moving vehicles with minimal distortion, reading plates on vehicles traveling up to 81 mph across two lanes, and also classifies vehicle type, color, make, and model under optimal conditions.

A 10-40mm varifocal P-iris lens (F1.3-1.4) delivers a 42° to 11° horizontal field of view and a plate capture range of 23 to 98 ft. For round-the-clock operation, OptimizedIR with 850nm LEDs reaches 197 ft or more depending on the scene, while Lightfinder 2.0 and Forensic WDR up to 120dB preserve detail in low light and harsh backlighting such as headlight glare.

Edge processing on the ARTPEC-9 chip with a deep learning processing unit handles recognition on the camera itself, storing up to 1,000 events onboard or 100,000 on an AXIS Surveillance Card and reducing server and bandwidth needs. Allow, block, and custom lists holding up to 30,000 plates combined support barrier and access control, and open APIs simplify integration with Axis and third-party VMS platforms. The IP66/IP67, IK10, and NEMA 4X-rated housing operates from -40°F to 140°F, runs on PoE or 10-28 VDC, and is TAA compliant with a 5-year warranty.

Key Features:

• 3MP global shutter 1/1.8" RGB CMOS sensor; Captures sharp, low-distortion images of vehicles moving at highway speeds.
• AXIS License Plate Verifier preinstalled with license included; Delivers plate recognition out of the box without separate software purchases.
• Two-lane coverage for vehicles up to 81 mph; Monitors free-flow traffic lanes with a single camera.
• 10-40mm varifocal P-iris lens, F1.3-1.4; Lets installers frame plates precisely at 23 to 98 ft.
• 850nm OptimizedIR up to 197 ft; Keeps plates readable in complete darkness.
• Forensic WDR up to 120dB; Reduces headlight glare and backlight so plate characters stay legible.
• H.264, H.265, AV1 and MJPEG with Zipstream; Lowers bandwidth and storage use without sacrificing evidence quality.
• IP66/IP67, IK10, NEMA 4X housing rated -40°F to 140°F; Withstands weather, vandalism, and extreme roadside temperatures.
• PoE (IEEE 802.3af) or 10-28 VDC power; Offers flexible power options for poles and gantries.
• TAA compliant with 5-year warranty; Meets federal procurement requirements with long-term coverage.
