Description

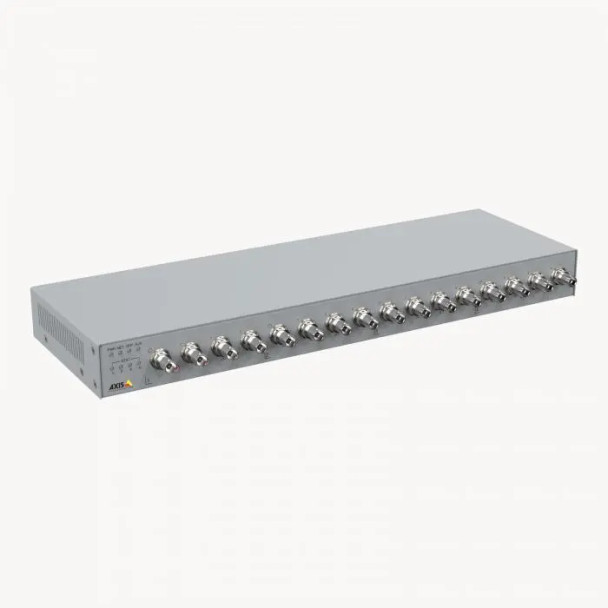

AXIS P7316 Full Featured 16 Channel Video Encoder - 02037-004
AXIS P7316 is a full-featured, 16-channel video encoder that adds IP benefits to any analog camera system. It supports standard and HD analog cameras up to 4K resolution as well as PTZ control over RS485. This rack-mounted encoder features support for two-way audio and intelligent analytics such as motion detection and active tampering alarm. An SFP slot enables long-distance fiber-optic connection and network redundancy. AXIS P7316 includes Zipstream with support for H.264/H.265 to drastically reduce bandwidth and storage requirements. Furthermore, it offers built-in cybersecurity features such as signed firmware and secure boot.
Key Features:
- Support for HD analog cameras up to 4K
- PTZ control
- 2-way audio and configurable I/O
- Zipstream with support for H.264/H.265
- Signed firmware and secure boot
Replacement of:
0542-004
Downloads
Datasheet
AXIS-02037-004-Datasheet-A1
Additional Information
|
4K Support:
|
4K Supported
|
|
Accessory Type:
|
Video Encoder
|
|
Alternative SKUs:
|
P7316
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
LPCM
AAC-LC
G.711
PCM
G.726
ADPCM
Opus
|
|
Audio Input:
|
8x 3.5mm
|
|
Audio Output:
|
4x 3.5mm
|
|
Channel Capacity:
|
16 Channels
|
|
Color:
|
Gray
|
|
Compatible Integration (API):
|
VAPIX
ACAP (AXIS Camera Application Program)
ONVIF Profile G
ONVIF Profile M
ONVIF Profile S
ONVIF Profile T
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Connection Type:
|
Wired
|
|
Dimensions:
|
44 x 145 x 440 mm (1.7 x 5.7 x 17.3 in)
|
|
Environmental:
|
Indoor
|
|
Fiber Ports:
|
1x 1 Gbps SFP Port
|
|
LED Indicator:
|
|
|
Material:
|
Metal
|
|
Max Power Consumption:
|
32 Watts
|
|
Max. Recording Resolution:
|
8MP (4K)
|
|
Mounting:
|
Rack Mount
Wall Mount
Standalone
|
|
Network Interface:
|
2x RJ-45 1000 Mbps Port
|
|
Processor (CPU):
|
ARTPEC-7 (4x)
|
|
Product Series:
|
AXIS P73 Series
|
|
RAM:
|
4GB
|
|
Rack Unit (U):
|
1U
|
|
Resolution:
|
8MP (4K)
|
|
SD Card Support:
|
SD Card Supported
|
|
Serial Interface:
|
4x RS485/RS422
|
|
Video Input:
|
16x BNC
|
|
Warranty:
|
5-year Manufacturer Warranty
|
