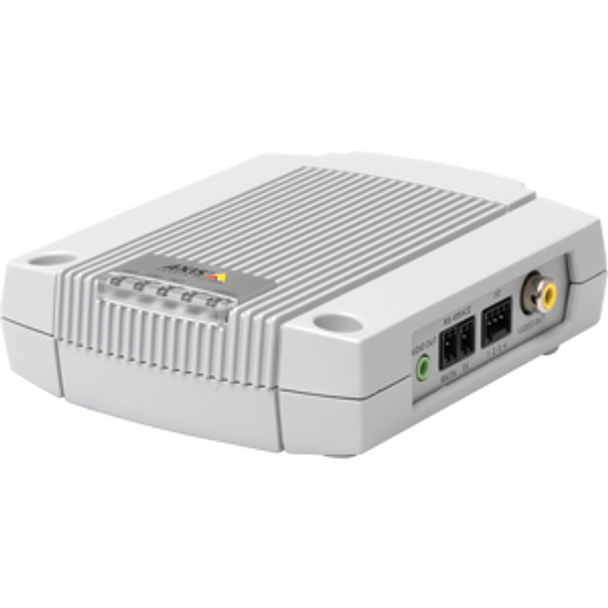

AXIS P7701 Video Decoder - 0319-004

AXIS P7701 Video Decoder 0319-004

The AXIS P7701 Video Decoder provides a simple monitoring solution by enabling analog or digital monitors/projectors to connect to and display live video from Axis network cameras and video encoders. In situations where only live video display is required— such as with a public view monitor at a store entrance, AXIS P7701 offers a more cost-effective solution than using a PC for connecting a monitor. AXIS P7701 can also complement a video management system by helping to offload the main server from decoding digital streams simply for display purposes.

AXIS P7701 can decode full frame rate video streams in H.264 and MPEG-4 in all resolutions up to D1 (720x480 pixels in NTSC, 720x576 in PAL). Motion JPEG can be decoded in all resolutions up to 720p (1280x720). The video decoder can provide either digital or analog video output. Video from any number of cameras can be shown in sequence.

Key Features:

• H.264 / MPEG-4 / MJPEG
• 30 FPS at D1
• RCA/DVI-I Video Output
• Video & Audio Decoding
• Sequence Mode
• Auto-Connect on Alarm
• Power Over Ethernet
• RS-422/RS-485
• Only For Axis Cameras
