Description

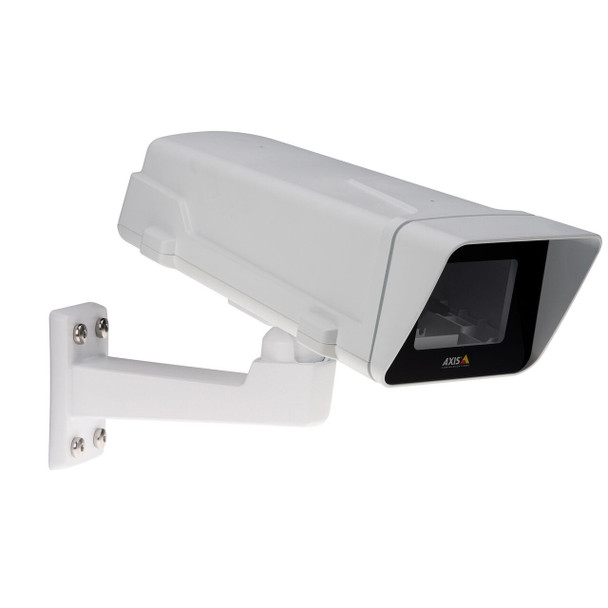

AXIS T93F10 Outdoor Housing 5900-271
AXIS T93F10 Outdoor Housing supports IP66 and NEMA 4X ratings against the ingress of dust and water, and IK10 rating for protection against impact and vandal acts. The installer-friendly, lightweight plastic casing protects from corrosion. All cables are protected inside the wall mount to enhance vandal protection and remove the risk of solar degradation. A slot is dedicated for an optional intrusion alarm switch. It comes with a wall mount and an integrated sunshield.
AXIS T93F10 Outdoor Housing can power the camera and its heater and has a temperature range from -40 °C to 60 °C (-40 °F to 140 °F) for the housing itself. The temperature range in running operation depends on the camera model. For more information please check the datasheet. The housing can power the camera at 12 V DC. AXIS T93F10 is suitable when AC/DC power is a requirement. The outdoor housing can be powered with 20-24 V AC or 12-28 V DC and no midspan is required.
As optional accessory, AXIS Corridor Format Bracket B can be purchased if the fixed box camera needs to be installed in a corridor format, but keeping the housing straight. The corridor format installation is particularly suitable for surveillance of narrow alleys or perimeters. For a list of cameras that can be installed using AXIS Corridor Format Bracket B, see the product page of the bracket.
Key Features:
- AC or DC power input
- 12 V DC power output
- Weatherproof and vandal-proof
- Suitable to fit large CS-mount lenses
- Polymer casing
- Protection against water, dust and corrosion
- Impact resistant
- Lightweight
- Included wall mount
Optional Accessories:
- AXIS T91A47 Pole Mount
- AXIS Sunshield A
- AXIS Corridor Format Bracket A/B
- AXIS Bird Control Spike
Supported products:
- AXIS P13 Series
- AXIS Q16 Series
- AXIS M1124/M1125
Downloads
Popular Search
Compatible products
Additional Information
Accessory Type:
|
Housing Enclosure
|
Alternative SKUs:
|
T93F10
|
Compliance:
|
NDAA Compliant
|
Environmental:
|
Outdoor
|
Warranty:
|
5-year Manufacturer Warranty
|
