Bosch DVR-650-16A050 16ch Digital Video Recorder (500GB)

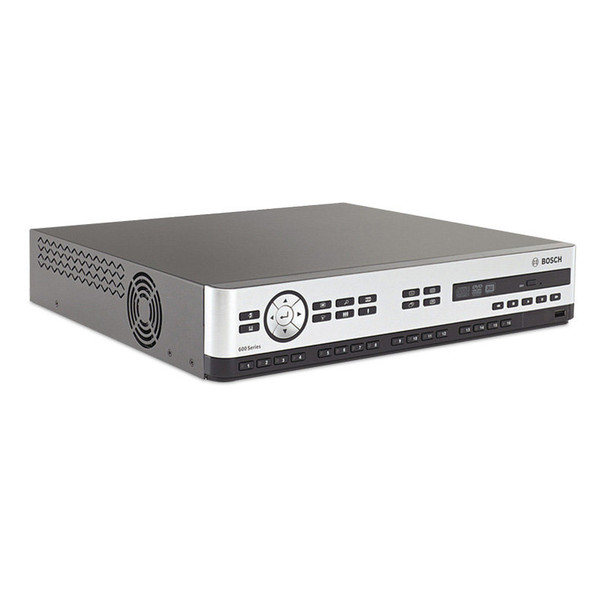

Bosch DVR-650-16A050 16-channel Digital Video Recorder

If you are looking for a high-quality surveillance equipment, look no further than the Bosch DVR-650-16A050 16-channel Digital Video Recorder. It has a 500GB storage capacity to archive plenty of videos or footages. This video recorder uses H.264 compression technology that not only minimizes the amount of storage and bandwidth needed, but also helps deliver high-quality images. Its two monitor outputs provide full-screen/quad/multi-screen/sequenced viewing, while the embedded design reduces maintenance and operational costs. This equipment can record multiple video and audio signals and ensures live multi-screen viewing and playback at the same time.

With the PC software or built-in web application, this DVR-650-16A050 video recorder allows for live viewing, playback, and configuration via a network. The Smart Search feature lets you search for motion within the recorded images. This Bosch DVR-650-16A050 16-channel digital video recorder offers an authenticity check for both local and remote playback for recording integrity. It supports Bosch and Pelco protocols and features a built-in DVD burner.

Key Features of the Bosch DVR-650-16A050 16-channel Digital Video Recorder

• Real Time Streaming Protocol: ensures live display support on mobile devices
• RS-485 Serial Communications: allows you to control the Bosch and third-party PTZ (Pan/Tilt/Zoom) cameras
• DVD Writer: lets you use a DVD for storing the data
• H.264 Compression Technology: minimizes the amount of bandwidth without sacrificing the image quality
• Motion Detection: detects the relevant motion in the video
• 500GB Memory: to archive lots of videos and footages

Bosch DVR-650-16A050 16-channel Digital Video Recorder Specifications

• Operating system: Windows XP, Windows Vista or Windows 7
• Web browser: Internet Explorer 7, 8 or 9
• Processor: Intel Core Duo 2.0GHz or comparable
• RAM memory: 2048 MB
• Free disk space: 10 MB
• Graphics card: NVIDIA GeForce 8600 or better
• Video memory: 256 MB
• Network interface: 10/100-BaseT
• External power adapter AC input: 110-240 VAC; 50/60 Hz; 1.8 A
• External power adapter DC output: 12VDC; 5 A
• DVR Power input: 12VDC; 3.5 A; 145 BTU/h
• Inputs: Composite video 1 Vpp, 75 ohm, automatic termination; PAL / NTSC auto-detect
• AGC: Automatic gain adjustment for each video input
• Hard Disks: Supports up to 2 SATA hard drives maximum 2TB each
• Record Rate (IPS) NTSC: Max. 30 IPS per channel, configurable: 30, 15, 7.5, 5, 3, 1
• Record Rate (IPS) PAL: Max. 25 IPS per channel, configurable: 25, 12.5, 6.25, 5, 2.5, 1
• Recording Quality: Best, High, Normal, Low, Lowest
• Average Recording Capacity CIF, Normal, 25/30 IPS: PAL-138 hours, NTSC-170 hours
• Average Recording Capacity CIF, Normal, 6.25/7.5 IPS: PAL-350 hours, NTSC-425 hours
• Average Recording Capacity 2CIF, Normal, 12.5/15 IPS: PAL-115 hours, NTSC-144 hour
• Average Recording Capacity 4CIF, Normal, 6.25/7.5 IPS: PAL- 93 hours, NTSC-115 hours
• Maximum recording rates Local 16 channels 4CIF: PAL-6 IPS, NTSC-7.5 IPS
• Maximum recording rates Local 16 channels 2CIF: PAL-12.5 IPS, NTSC- 15 IPS
• Maximum recording rates Local 16 channels CIF: PAL-25 IPS, NTSC-30 IPS
• Maximum recording rates Local 8 channels 4CIF: PAL-12.5 IPS, NTSC-15 IPS
• Maximum recording rates Local 8 channels 2CIF: PAL-25 IPS, NTSC-30 IPS
• Maximum recording rates Local 8 channels CIF: PAL-25 IPS, NTSC-30 IPS
• Maximum recording rates Local 4 channels 4CIF: PAL-12.5 IPS, NTSC-15 IPS
• Maximum recording rates Local 4 channels 2CIF: PAL-25 IPS, NTSC-30 IPS
• Maximum recording rates Local 4 channels CIF: PAL-25 IPS, NTSC-30 IPS
• Remote (network) 16 channels CIF: PAL-6.75 IPS, NTSC-7.5 IPS
• Remote (network) 8 channels CIF: PAL-12.5 IPS, NTSC-15 IPS
• Video Outputs Monitor: A-VGA RGB, Monitor B-VGA RGB
• Live Resolution (Mon.A): 800x600 (4:3), 1024x768 (4:3), 1280x1024 (5:4), 1366x768 (16:9), 1440x900 (16:10)
• Digital Zoom: 2 times
• Streaming video: H.264 compression
• Audio Inputs: Mono RCA, 1.0 Vpp
• Audio Output: Mono RCA, 1.0 Vpp
• Compression: ADPCM
• Sample rate: 16 kHz per channel
• Bit rate: 8-bit
• Inputs: 8 or 16 inputs configurable NO/NC, max. input voltage 15 VDC
• Outputs: 4 Relay outputs, configurable NO/NC, max. rated 30 VAC, 40 VDC 0.5 A continuous or 10 VA
• RS485: Output signals according to RS485, max. signal voltage -8 to +12 V
• RS485 Support: Bosch domes, and Pelco P and D
• Video Inputs: 8 or 16 looping BNC, auto termination
• Monitor: 2 VGA D-SUB
• Alarm connectors: Screw terminal inputs, cable diameter AWG26‑16 (0.13-1.5 mm)
• Audio Inputs: 4 RCA (CINCH)
• Audio Output: 2 RCA (CINCH)
• Ethernet: RJ45, 10/100 BaseT according to IEEE802.3
• RS485: Screw terminal output, cable diameter AWG28‑16 (0.08-1.5 mm)
• USB 2.0: One front and one rear USB connector for mouse or USB memory device
• Display Modes Monitor A: Full, quad, multi-screen (live and playback), full sequence, alarm call-up (live)
• Display Modes Monitor B: Full, quad, multi-screen, full sequence, alarm call-up (live)
• Normal partition: Continuous recording (with or without overwriting)
• Event partition: Input and motion recording (with or without overwriting)
• Dimensions (WxDxH): 355 x 362 x 78 mm (13.9 x 14.2 x 3.1 in) excluding cabling
• Weight: 4.3 kg (9.46 lb) approx.
• Temperature Operating: +0°C to +40°C (+32°F to +104°F)
• Temperature Storage: -40°C to +70°C (-40°F to +158°F)
• Humidity Operating: <93% non-condensing
• Humidity Storage: <95% non-condensing
