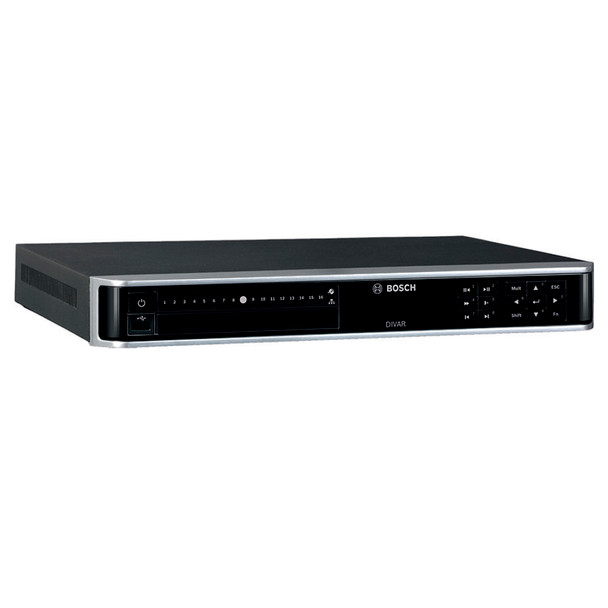

Bosch DDN-3532-112D16 32 Channel 4K Network Video Recorder - 2TB HDD Installed, 16 PoE, DVD

Brand: Bosch
Part Number: DDN-3532-112D16
Write a Review
Replacement: There is no direct replacement. Ask a representative.
Check other similar products:
  • Bosch DDN-3532-112D16 32 Channel 4K Network Video Recorder - 2TB HDD Installed, 16 PoE, DVD
  • Bosch DDN-3532-112D16 32 Channel 4K Network Video Recorder - 2TB HDD Installed, 16 PoE, DVD
Free shipping over $300 Free Shipping
Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Compression : H.265, H.264, MJPEG,
  • Pre-Installed Storage : 2 TB
  • Video Output : 1x HDMI 1x VGA
  • Max. Recording Resolution : 12MP (4K)
  • Hard Drive Ports : 1 SATA Port
  • Max. Storage Capacity : 6 TB Storage Capacity


Bosch DDN-3532-112D16 32 Channel H.265 4K Network Video Recorder with 16 PoE

Connect this recorder to a maximum of 32 IP cameras that use the latest H265/H264 high-resolution video technology and state-of-the-art compression techniques. These advanced technologies, coupled with efficient network data transmission, deliver the high security and reliability required for modern surveillance systems. Simultaneous remote or local monitoring, recording, archive and playback functions are guided by simple menu selections and operator commands. The recorders can be installed with a maximum of 2 internal HDDs for video storage.

The DIVAR supports H.264 video compression technology and is H.265-ready for the newest H.265 technology cameras to be released by Bosch. This technology dramatically reduces bandwidth and storage requirements while still delivering superb image and audio quality. Equipped with this newest video technology, DIVAR gives you the full benefits of the latest high-resolution cameras. The proof is in the pixels.

The DIVAR records multiple video and audio signals while simultaneously providing live multi-screen viewing and playback. Comprehensive search and playback functions provide quick recall and viewing of recorded video. The DIVAR has a real-time display resolution of 1080p for 16 channels simultaneously, or 4K for 4 channels.

Video inputs, audio inputs/output, and alarm inputs/ outputs are located on the rear panel. Two video connectors (VGA/HDMI) provide simultaneous output for monitor A for live display (with zoom) and playback (display can be frozen and zoomed). The displays allow full-screen, multi-screen, and sequenced viewing.

Key features:

  • 32 IP channels with 320 Mbps incoming bandwidth
  • 2TB HDD Included, DVD
  • 16 PoE Port
  • 12 MP IP camera support for view and playback
  • Real time live display for 16 channels @1080p or 4 channels @4k
  • Compact, sturdy and stylish design
  • H.265 Compression
  • 1x HDMI, 1x VGA output
  • 2x SATA slots, up to 12TB storage

Additional Information

4K Support:
4K Supported
Alternative SKUs:
Channel Capacity:
32 Channels
NDAA Compliant
H.265 H.264 MJPEG
Hard Drive Ports:
1 SATA Port
Manufacturer Website:
Max. Incoming Bandwidth:
Max. Recording Resolution:
12MP (4K)
Max. Storage Capacity:
6 TB
Outgoing Bandwidth:
320 Mbps
Pre-Installed Storage:
2 TB
Recorder Technology:
Network Video Recorder (NVR)
Video Output:
1x HDMI 1x VGA
3-year Manufacturer Warranty
