Description

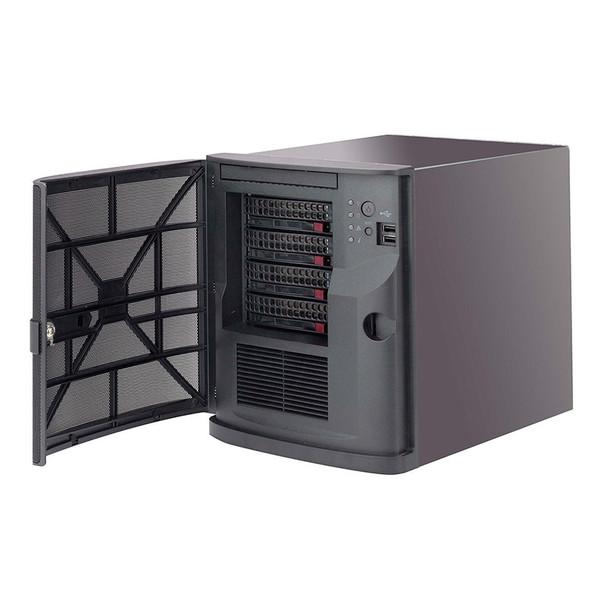

Bosch DIP-5240GP-00N DIVAR IP All-in-one 5000 Management Appliance with GPU
The DIVAR IP all-in-one 5000 appliance is an affordable and easy to use all-in-one recording, viewing, and management solution for network surveillance systems of up to 42 channels (with 8 channels pre-licensed). Running the full BVMS solution and powered by Bosch Video Recording Manager including the Video Streaming Gateway to integrate third-party cameras, it is an intelligent IP video management and storage device.
DIVAR IP all-in-one 5000 is a 4-bay mini tower unit that combines advanced management and state-of-the-art recording management into a single cost-effective, plug and play IP recording appliance for IT-minded customers.
The DIVAR IP all-in-one 5000 appliance utilizes a highly energy efficient, embedded design which boasts Bosch quality through-and-through. Easy to install and operate, the system features wizard-based set-up and centralized configuration. All components are pre-installed and pre-licensed. Simply connect to the network and power the unit up - DIVAR IP all-in-one is ready to begin recording straight out of the box.
BVMS manages all IP and digital video and audio, plus all the security data being transmitted across your IP network. It seamlessly combines IP cameras and encoders, provides system-wide event and alarm management, system health monitoring, user and priority management.
Key Features:
- All-in-one recording, viewing and management solution for network surveillance systems.
- No HDD included
- Graphics card GPU
- All-in-one, fully featured video recording and management solution for up to 42 channels
- Out-of-the-box IP video recording with up to 48 TB (4 x 12 TB) storage capacity pre-installed
- Robust, secure operation — instant real time access to video
- Advanced user and alarm management
- 4-bay mini tower, 3.5-inch SATA
- 2 x RJ45 Gigabit Ethernet LAN
- 1 x DVI, 1 x DisplayPort, 1 x HDMI
- Dimensions: 240 x 210 x 279 mm (9.45 x 8.27 x 11 in)
- 250 W Flex ATX Multi-output Bronze Power Supply, 100 / 240 VAC, 50 / 60 Hz
- Memory installed 8 GB SO-DIMM
- Processor Intel i3-8100 processor
- 170 Mbit/s bandwidth
- 3 years warranty, including parts replacement within 3 business days services
Optional Accessories:
- DIP-AIO4-HDD 4TB HDD DIVAR IP all-in-one
- DIP-AIO8-HDD 8TB HDD DIVAR IP all-in-one
- DIP-AIO12-HDD 12TB HDD DIVAR IP all-in-one
- KBD-UXF Keyboard, USB CCTV-oriented
Downloads
Compatible products
Additional Information
|
4K Support:
|
4K Supported
|
|
Alternative SKUs:
|
F.01U.359.551
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Channel Capacity:
|
42 Channels
|
|
Color:
|
Black
|
|
Connection Type:
|
Wired
|
|
Dimensions:
|
240 x 210 x 279 mm (9.45 x 8.27 x 11 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
4 SATA Ports
|
|
Included Licenses:
|
8 Channel Licenses
|
|
Max. Incoming Bandwidth:
|
170Mbps
|
|
Max. Recording Resolution:
|
8MP (4K)
|
|
NDAA Compliance:
|
NDAA Compliant
|
|
Network Interface:
|
2x RJ-45 Ports
|
|
Outgoing Bandwidth:
|
170Mbps
|
|
Power Budget:
|
250 Watt
|
|
Power Supply:
|
100 to 240 V AC
|
|
Pre-Installed Storage:
|
No HDD included
|
|
Processor (CPU):
|
Intel i3-8100
|
|
Product Series:
|
Bosch DIVAR IP 5000 Series
|
|
RAM:
|
8GB
|
|
RAM Type:
|
DDR SO-DIMM
|
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
|
USB Interface:
|
2x USB 2.0
2x USB 3.1
2x USB-C
|
|
Video Output:
|
1x HDMI
1x DisplayPort
1x DVI
|
|
Warranty:
|
3-year Manufacturer Warranty
|
