Bosch DVR-630-08A050 8ch DVR Digital Video Recorder (500GB Storage)

Bosch DVR-630-08A050 8-channel 500GB Digital Video Recorder

The Bosch DVR-630-08A050 8-channel 500GB Digital Video Recorder features the H.264 compression technology that helps minimize the size of the video file without sacrificing the image quality. It offers a resolution of up to 1440 x 900 pixels, while providing search and playback functions, which allow you to quickly access the recorded videos. Once the cameras are connected, this video recorder starts its operation automatically. It can record multiple video and audio signals and allows for live multi-screen viewing and playback simultaneously. Two monitor outputs in this video recorder provide full-screen, quad and multi-screen viewing modes.&

With the Control Center PC software, this DVR-630-08A050 video recorder is easy to control over a network. It includes a built-in web application to allow live viewing, playback and configuration. & It provides an archive player to let you view secure video files. The Real Time Streaming Protocol (RTSP) configures the suitable mobile devices to help them display live video streamed by the DVR over the internet. This Bosch DVR-630-08A050 8-channel 500GB digital video recorder enables authenticity check for both local and remote playback to maintain the recording integrity.

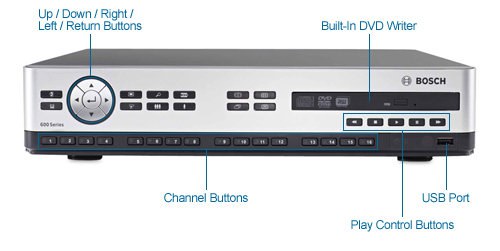

Key Features:

• Embedded Design: minimizes maintenance and operational costs
• On-screen Display Menu: for easy operation and programming of the DVR
• USB Port: lets you use a flash drive to store videos or footages
• Rear Panel: has looping auto-terminating video inputs and outputs, audio inputs and outputs and alarm inputs and outputs
• Control Center PC Software: allows you to control the DVR over a network
• 500GB Storage: for storing plenty of videos or footages

Bosch DVR-630-08A050 8-Channel 500GB Digital Video Recorder& specifications

• External power adapter AC input: 110-240 VAC; 50/60 Hz; 1.8 A
• External power adapter DC output: 12VDC; 5 A
• DVR Power input: 12VDC; 3.5 A; 145 BTU/h
• Inputs: Composite video 1 Vpp, 75 ohm, automatic termination; PAL / NTSC auto-detect
• AGC: Automatic gain adjustment for each video input
• Outputs: Monitor A-VGA RGB, Monitor B- VGA RGB
• Live Resolution (Mon.A): 800x600 (4:3), 1024x768 (4:3), 1280x1024 (5:4), 1366x768 (16:9), 1440x900 (16:10)
• Average Recording Capacity: 16 channels, 500 GB
• Record Rate (IPS) CIF, Normal, 25/30 IPS-PAL: 138 hours, NTSC- 170 hours
• Remote (network) 16 channels CIF: PAL- 6.75 IPS, NTSC-7.5 IPS
• Remote (network) 8 channels CIF: PAL-12.5 IPS, NTSC-15 IPS
• Display Modes Monitor A: Full, quad, multi-screen (live and playback), full sequence, alarm call-up (live)
• Display Modes Monitor B: Full, quad, multi-screen, full sequence, alarm call-up (live)
• Recording Modes Normal partition: Continuous recording (with or without overwriting)
• Recording Modes Event partition: Input and motion recording (with or without overwriting)

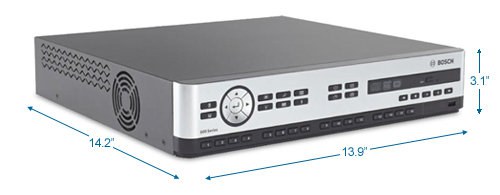

• Dimensions (WxDxH): 355 x 362 x 78 mm (13.9 x 14.2 x 3.1 in) excluding cabling
• Weight: 4.3 kg (9.46 lb) approx.

&
