Bosch DVR-630-16A050 16ch DVR Digital Video Recorder (500GB)

Bosch DVR-630-16A050 16-channel DVR Digital Video Recorder (500GB)

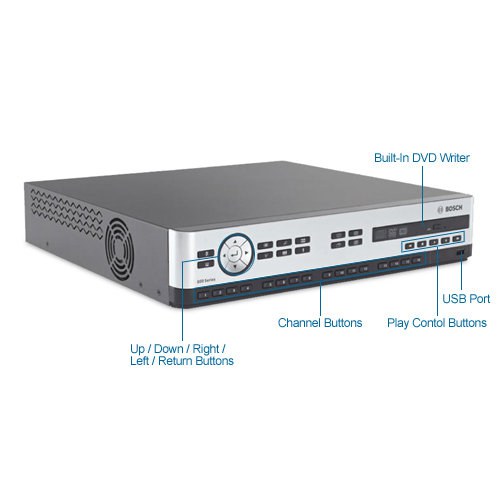

The Bosch DVR-630-16A050 16-channel DVR Digital Video Recorder (500GB) makes a great choice for any surveillance application. It utilizes the H.264 compression technology to minimize the amount of bandwidth without compromising on the image quality. This video recorder is capable of recording up to 25 (PAL)/30 (NTSC) images per second, per channel at CIF resolution. Integrated with a Control Center software, it allows for hassle-free management of the remote recorders. Two monitor outputs offer full-screen, quad, multi-screen and sequenced viewing and supports VGA 16:9, 16:10, and 4:3 aspect ratios.&

This DVR-630-16A050 video recorder allows for live multi-screen viewing, recording, playback and remote streaming at the same time with its built-in web viewer. Its motion detection feature intelligently detects movement in the scene, while the Smart Search feature lets you search for motion within recorded images. The Real Time Streaming Protocol (RTSP) in this Bosch DVR-630-16A050 16-channel DVR Digital Video Recorder (500GB) ensures live display support on mobile equipment. The video loss detection detects the loss of signal from the camera to ensure high performance.

Key Features of the Bosch DVR-630-16A050 16-channel DVR Digital Video Recorder (500GB)

• H.264 Compression Technology: delivers high-quality images and saves storage space
• 500GB Capacity: to archive tons of data
• RS-485 Serial Communication: helps control the Bosch and third-party PTZ (Pan/Tilt/Zoom) cameras
• Smart Search: allows you to search for motion within recorded images
• Control Center Software: for easy control of the DVR
• Real Time Streaming Protocol: ensures live display support on mobile devices

Bosch DVR-630-16A050 16-channel DVR Digital Video Recorder (500GB) Specifications

• Operating system: Windows XP, Windows Vista or Windows 7
• Web browser: Internet Explorer 7, 8 or 9
• Processor: Intel Core Duo 2.0GHz or comparable
• RAM memory:2048 MB
• Free disk space: 10 MB
• Graphics card: NVIDIA GeForce 8600 or better
• Video memory: 256 MB
• Network interface: 10/100-BaseT
• External power adapter AC input: 110-240 VAC; 50/60 Hz; 1.8 A
• External power adapter DC output: 12VDC; 5 A
• DVR Power input: 12VDC; 3.5 A; 145 BTU/h
• Inputs: Composite video 1 Vpp, 75 ohm, automatic termination; PAL / NTSC auto-detect
• AGC: Automatic gain adjustment for each video input
• Hard Disks: Supports up to 2 SATA hard drives maximum 2TB each
• Record Rate (IPS) NTSC: Max. 30 IPS per channel, configurable: 30, 15, 7.5, 5, 3, 1
• Record Rate (IPS) PAL: Max. 25 IPS per channel, configurable: 25, 12.5, 6.25, 5, 2.5, 1
• Recording Quality: Best, High, Normal, Low, Lowest
• Average Recording Capacity CIF, Normal, 25/30 IPS: PAL-138 hours, NTSC-170 hours
• Average Recording Capacity CIF, Normal, 6.25/7.5 IPS: PAL-350 hours, NTSC-425 hours
• Average Recording Capacity 2CIF, Normal, 12.5/15 IPS: PAL-115 hours, NTSC-144 hour
• Average Recording Capacity 4CIF, Normal, 6.25/7.5 IPS: PAL- 93 hours, NTSC-115 hours
• Maximum recording rates Local 16 channels 4CIF: PAL-6 IPS, NTSC-7.5 IPS
• Maximum recording rates Local 16 channels 2CIF: PAL-12.5 IPS, NTSC- 15 IPS
• Maximum recording rates Local 16 channels CIF: PAL-25 IPS, NTSC-30 IPS
• Maximum recording rates Local 8 channels 4CIF: PAL-12.5 IPS, NTSC-15 IPS
• Maximum recording rates Local 8 channels 2CIF: PAL-25 IPS, NTSC-30 IPS
• Maximum recording rates Local 8 channels CIF: PAL-25 IPS, NTSC-30 IPS
• Maximum recording rates Local 4 channels 4CIF: PAL-12.5 IPS, NTSC-15 IPS
• Maximum recording rates Local 4 channels 2CIF: PAL-25 IPS, NTSC-30 IPS
• Maximum recording rates Local 4 channels CIF: PAL-25 IPS, NTSC-30 IPS
• Remote (network) 16 channels CIF: PAL-6.75 IPS, NTSC-7.5 IPS
• Remote (network) 8 channels CIF: PAL-12.5 IPS, NTSC-15 IPS
• Video Outputs Monitor: A-VGA RGB, Monitor B-VGA RGB
• Live Resolution (Mon.A): 800x600 (4:3), 1024x768 (4:3), 1280x1024 (5:4), 1366x768 (16:9), 1440x900 (16:10)
• Digital Zoom: 2 times
• Streaming video: H.264 compression
• Audio Inputs: Mono RCA, 1.0 Vpp
• Audio Output: Mono RCA, 1.0 Vpp
• Compression: ADPCM
• Sample rate: 16 kHz per channel
• Bit rate: 8-bit
• Inputs: 8 or 16 inputs configurable NO/NC, max. input voltage 15 VDC
• Outputs: 4 Relay outputs, configurable NO/NC, max. rated 30 VAC, 40 VDC 0.5 A continuous or 10 VA
• RS485: Output signals according to RS485, max. signal voltage -8 to +12 V
• RS485 Support: Bosch domes, and Pelco P and D
• Video Inputs: 8 or 16 looping BNC, auto termination
• Monitor: 2 VGA D-SUB
• Alarm connectors: Screw terminal inputs, cable diameter AWG26‑16 (0.13-1.5 mm)
• Audio Inputs: 4 RCA (CINCH)
• Audio Output: 2 RCA (CINCH)
• Ethernet: RJ45, 10/100 BaseT according to IEEE802.3
• RS485: Screw terminal output, cable diameter AWG28‑16 (0.08-1.5 mm)
• USB 2.0: One front and one rear USB connector for mouse or USB memory device
• Display Modes Monitor A: Full, quad, multi-screen (live and playback), full sequence, alarm call-up (live)
• Display Modes Monitor B: Full, quad, multi-screen, full sequence, alarm call-up (live)
• Normal partition: Continuous recording (with or without overwriting)
• Event partition: Input and motion recording (with or without overwriting)
• Dimensions (WxDxH): 355 x 362 x 78 mm (13.9 x 14.2 x 3.1 in) excluding cabling
• Weight: 4.3 kg (9.46 lb) approx.
• Temperature Operating: +0°C to +40°C (+32°F to +104°F)
• Temperature Storage: -40°C to +70°C (-40°F to +158°F)
• Humidity Operating: <93% non-condensing
• Humidity Storage: <95% non-condensing
