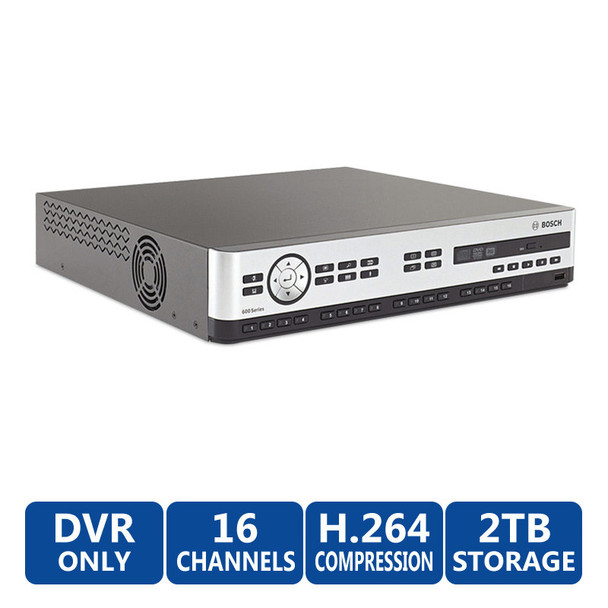

Bosch DVR-650-16A200 16ch DVR Digital Video Recorder (2TB)

Brand:
Part Number: DVR-650-16A200
Write a Review
Discontinued
  • Bosch DVR-650-16A200 16ch DVR Digital Video Recorder (2TB)
  • Bosch DVR-650-16A200 16ch DVR Digital Video Recorder (2TB)
$1,920.00
$1,299.00
Free shipping over $300 Free Shipping
Technical Support Technical Support
3 Year Warranty 3 Year Warranty

Description

Bosch DVR-650-16A200 16-channel Digital Video Recorder

A best bet for any surveillance application, the Bosch DVR-650-16A200 16-channel Digital Video Recorder utilizes the H.264 compression technology to minimize the size of the video file without sacrificing the image quality. It offers a resolution of up to 1440 x 900 pixels and has a 2TB memory capacity for storing video files. Its search and playback functions give quick access to the recorded videos, while the built-in web application enables live viewing, playback and configuration. The integrated Control Center PC software lets you easily control the DVR over a network.

Once the cameras are connected, this DVR-650-16A200 video recorder starts its operation automatically. It is capable of recording multiple video and audio signals and allows for live multi-screen viewing and playback simultaneously. This Bosch DVR-650-16A200 16-channel digital video recorder has two monitor outputs to offer full-screen, quad and multi-screen viewing modes and an archive player for viewing secure video files. Its Real Time Streaming Protocol (RTSP) configures the suitable mobile devices and let them display live video streamed by the DVR over the internet.

Key Features:

  • Authenticity Check: for both local and remote playback to maintain the recording integrity
  • 2TB Storage: lets you store ample videos or footages
  • Rear Panel: with looping auto-terminating video inputs and outputs, audio inputs and outputs and alarm inputs and outputs
  • Control Center PC Software: helps control the DVR over a network
  • On-screen Display Menu: ensures trouble-free operation and programming of the DVR
  • Embedded Design: minimizes maintenance and operational costs

Bosch DVR-650-16A200 16-channel Digital Video Recorder Specifications

  • Operating system: Windows XP, Windows Vista or Windows 7
  • Web browser: Internet Explorer 7, 8 or 9
  • Processor: Intel Core Duo 2.0 GHz or comparable
  • RAM memory: 2048 MB
  • Free disk space: 10 MB
  • Graphics card: NVIDIA GeForce 8600 or better
  • Video memory: 256 MB
  • Network interface: 10/100-BaseT
  • External power adapter AC input: 110-240 VAC; 50/60 Hz; 1.8 A
  • External power adapter DC output: 12 VDC; 5 A
  • DVR Power input: 12 VDC; 3.5 A; 145 BTU/h
  • Inputs: Composite video 1 Vpp, 75 ohm, automatic termination; PAL / NTSC auto-detect
  • AGC: Automatic gain adjustment for each video input
  • Hard Disks: Supports up to 2 SATA hard drives maximum 2TB each
  • Record Rate (IPS) NTSC: Max. 30 IPS per channel, configurable: 30, 15, 7.5, 5, 3, 1
  • Record Rate (IPS) PAL: Max. 25 IPS per channel, configurable: 25, 12.5, 6.25, 5, 2.5, 1
  • Recording Quality: Best, High, Normal, Low, Lowest
  • Average Recording Capacity CIF, Normal, 25/30 IPS: PAL-138 hours, NTSC-170 hours
  • Average Recording Capacity CIF, Normal, 6.25/7.5 IPS: PAL-350 hours, NTSC-425 hours
  • Average Recording Capacity 2CIF, Normal, 12.5/15 IPS: PAL-115 hours, NTSC-144 hour
  • Average Recording Capacity 4CIF, Normal, 6.25/7.5 IPS: PAL- 93 hours, NTSC-115 hours
  • Maximum recording rates Local 16 channels 4CIF: PAL-6 IPS, NTSC-7.5 IPS
  • Maximum recording rates Local 16 channels 2CIF: PAL-12.5 IPS, NTSC- 15 IPS
  • Maximum recording rates Local 16 channels CIF: PAL-25 IPS, NTSC-30 IPS
  • Maximum recording rates Local 8 channels 4CIF: PAL-12.5 IPS, NTSC-15 IPS
  • Maximum recording rates Local 8 channels 2CIF: PAL-25 IPS, NTSC-30 IPS
  • Maximum recording rates Local 8 channels CIF: PAL-25 IPS, NTSC-30 IPS
  • Maximum recording rates Local 4 channels 4CIF: PAL-12.5 IPS, NTSC-15 IPS
  • Maximum recording rates Local 4 channels 2CIF: PAL-25 IPS, NTSC-30 IPS
  • Maximum recording rates Local 4 channels CIF: PAL-25 IPS, NTSC-30 IPS
  • Remote (network) 16 channels CIF: PAL-6.75 IPS, NTSC-7.5 IPS
  • Remote (network) 8 channels CIF: PAL-12.5 IPS, NTSC-15 IPS
  • Video Outputs Monitor: A-VGA RGB, Monitor B-VGA RGB
  • Live Resolution (Mon.A): 800x600 (4:3), 1024x768 (4:3), 1280x1024 (5:4), 1366x768 (16:9), 1440x900 (16:10)
  • Digital Zoom: 2 times
  • Streaming video: H.264 compression
  • Audio Inputs: Mono RCA, 1.0 Vpp
  • Audio Output: Mono RCA, 1.0 Vpp
  • Compression: ADPCM
  • Sample rate: 16 kHz per channel
  • Bit rate: 8-bit
  • Inputs: 8 or 16 inputs configurable NO/NC, max. input voltage 15 VDC
  • Outputs: 4 Relay outputs, configurable NO/NC, max. rated 30 VAC, 40 VDC 0.5 A continuous or 10 VA
  • RS485: Output signals according to RS485, max. signal voltage -8 to +12 V
  • RS485 Support: Bosch domes, and Pelco P and D
  • Video Inputs: 8 or 16 looping BNC, auto termination
  • Monitor: 2 VGA D-SUB
  • Alarm connectors: Screw terminal inputs, cable diameter AWG26‑16 (0.13-1.5 mm)
  • Audio Inputs: 4 RCA (CINCH)
  • Audio Output: 2 RCA (CINCH)
  • Ethernet: RJ45, 10/100 BaseT according to IEEE802.3
  • RS485: Screw terminal output, cable diameter AWG28‑16 (0.08-1.5 mm)
  • USB 2.0: One front and one rear USB connector for mouse or USB memory device
  • Display Modes Monitor A: Full, quad, multi-screen (live and playback), full sequence, alarm call-up (live)
  • Display Modes Monitor B: Full, quad, multi-screen, full sequence, alarm call-up (live)
  • Normal partition: Continuous recording (with or without overwriting)
  • Event partition: Input and motion recording (with or without overwriting)
  • Dimensions (WxDxH): 355 x 362 x 78 mm (13.9 x 14.2 x 3.1 in) excluding cabling
  • Weight: 4.3 kg (9.46 lb) approx.
  • Temperature Operating: +0°C to +40°C (+32°F to +104°F)
  • Temperature Storage: -40°C to +70°C (-40°F to +158°F)
  • Humidity Operating: <93% non-condensing
  • Humidity Storage: <95% non-condensing

View AllClose

Additional Information

Channel Capacity:
16 camera channels
NDAA Compliance:
NDAA Compliant
Recorder Technology:
Digital Video Recorder (DVR)
Warranty:
3-year Manufacturer Warranty
