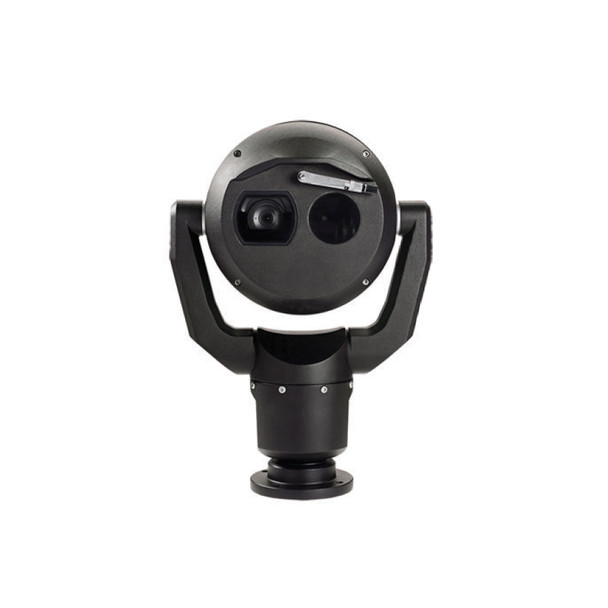

Bosch MIC-9502-Z30BQS QVGA/2MP Thermal/Visual Outdoor PTZ IP Security Camera - 19mm 2MP, 30x, 9Hz, Black

Brand: Bosch
Part Number: MIC-9502-Z30BQS
Write a Review

Help me pick a security camera

Free shipping over $300 Free Shipping
Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Compression : MJPEG, H.264, H.265,
  • Field of View (Horizontal) : 63°Field of View 2°Field of View
  • Lens Type : Motorized (Automatic Zoom) Lens
  • Lens Size : 4.3~129mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.8" Sensor
  • Protection Code : IP68
  • Color : Black
  • Environmental : Outdoor
  • Sensor Size : 1/2.8"


Bosch MIC-9502-Z30BQS QVGA/2MP Thermal/Visual Outdoor PTZ IP Security Camera

The MIC IP fusion 9000i camera is an advanced PTZ surveillance platform designed to provide early detection in mission-critical applications. With its dual visible/thermal imaging capabilities, the MIC IP fusion 9000i camera is the perfect solution for robust and high-quality imaging needs. The camera's distinctive, ruggedized design is wellsuited for extreme environments and adverse weather conditions such as high winds, rain, fog, ice, and snow. Precision engineered using Bosch's domain expertise in material and mechanical engineering, the camera offers the most advanced imaging and positioning system solution available on the market.

The MIC IP fusion 9000i camera incorporates a highperformance thermal imaging core and a 1080p starlight camera integrated in the same housing. This allows the camera to deliver simultaneous thermal and visible video streams, maximizing the ability to detect and react to long-range threats.

The thermal imager incorporates the latest un-cooled vanadium oxide microbolometer technology. This high sensitivity thermal imager is equipped with a fixed focal length Athermal lens that balances the field-ofview with maximizing the detection distance. User-adjustable settings for contrast and gain allow operators to optimize the image, ensuring delivery of the highest quality video. In addition, a wide variety of user-selectable thermal color modes are available allowing further optimization of the thermal image. Depending on model mix, QVGA resolution (320 pixels) and VGA resolution (640 pixels) versions are available, with choice of low (<9Hz) or high (30/60Hz) frame rates.

The 1080p60-capable visible imager has starlight technology and a 30x optical/12x digital zoom lens that provides high-quality images, excellent color performance, and unbeatable low-light sensitivity. High dynamic range ensures clear image reproduction in the most challenging high-contrast scenes.

Key features of Bosch MIC-9502-Z30BQS

  • 2MP Visual
  • QVGA Thermal
  • 19mm Thermal Lens
  • 30x Optical Zoom
  • H.265 Compression
  • Weatherproof IP68
  • Black
  • Ruggedized IP PTZ camera with high performance thermal imager and HD visible imager sitting side-byside
  • Designed to provide the highest availability of useable images regardless of lighting conditions in extreme environments (weather, dust/debris/ smoke, etc.)
  • Unique metadata fusion feature provides the ultimate in situation awareness
  • Exceptional early detection capabilities: Object detection up to 4517 m (14,820ft) based on DRI criteria
  • Advanced on-board intelligent video tracking, object detection even when camera is on tours

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at with any design questions.

Additional Information

Alternative SKUs:
Camera Style:
MJPEG H.264 H.265
Vandal Proof Weatherproof
Field of View (Horizontal):
63 2
Key Features:
Lens Size:
Lens Type:
Motorized (Automatic Zoom) Lens
NDAA Compliance:
NDAA Compliant
Optical Zoom:
30x Optical Zoom
Product Series:
Bosch MIC IP fusion 9000i Series
Protection Code:
SD Card Support:
SD Card Supported
Sensor Size:
Sensor Type:
Specialized Camera Feature:
Network (IP)
3-year Manufacturer Warranty
