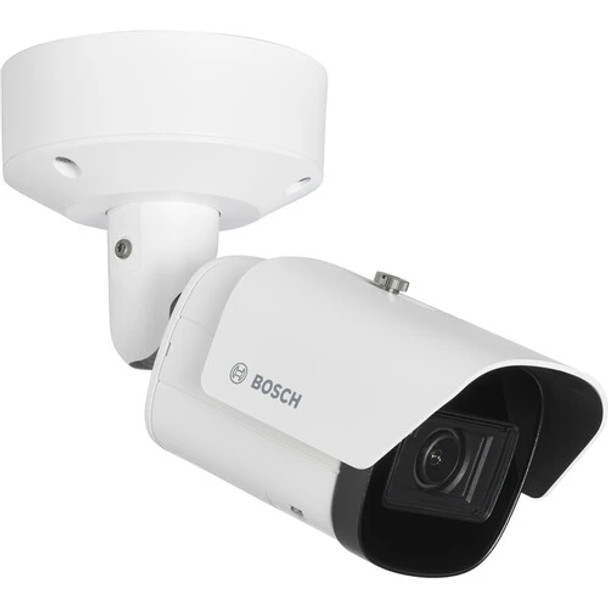

Bosch NBE-5703-AL 5MP Outdoor Bullet IP Security Camera with 3.2-10.5mm Lens

Brand: Bosch
Part Number: NBE-5703-AL
Write a Review
$1,079.25

? Help me pick a security camera

Free shipping over $300 Free Shipping
Technical Support Technical Support
  • Compression : H.264, H.265, MJPEG,
  • Lens Type : Motorized (Automatic Zoom) Lens
  • Lens Size : 3.2~10.5mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.7" Sensor
  • Protection Code : IP66 IP67 IK10 NEMA 4X
  • Material : Aluminum Plastic
  • Environmental : Outdoor
  • Aperture : F1.6
  • IR Corrected : IR Corrected

Description

Bosch NBE-5703-AL 5MP Outdoor Bullet IP Security Camera with 3.2-10.5mm Lens

The Bosch NBE-5703-AL is a professional-grade 5MP outdoor bullet IP security camera, designed for reliable surveillance in demanding outdoor environments. Featuring a motorized 3.2-10.5mm varifocal lens, it offers a horizontal field of view ranging from 96° to 29°, providing flexible coverage for diverse applications. Equipped with High Dynamic Range (HDR) technology, it captures clear and detailed images in both bright and dark areas. The camera includes a built-in intelligent infrared (IR) illuminator with a range of up to 60 meters (197 feet), ensuring excellent night vision. With advanced IVA Pro Buildings analytics, it enables accurate detection and classification of persons and vehicles while minimizing false alarms from environmental factors. Built to withstand harsh conditions, the NBE-5703-AL features an IK10 impact protection rating and IP66/IP67 weatherproof housing. PoE support and robust data security measures, including end-to-end encryption, make it an ideal choice for outdoor surveillance.

Key Features:

  • 5MP resolution; delivers high-quality video with sharp detail for professional surveillance.
  • High Dynamic Range (HDR); ensures clear visibility in scenes with both bright and dark areas.
  • Motorized 3.2-10.5mm varifocal lens; provides a flexible horizontal field of view from 96° to 29°.
  • Intelligent infrared (IR) illuminator; enables night vision up to 60 meters (197 feet).
  • IVA Pro Buildings analytics; offers reliable detection and classification of persons and vehicles.
  • Rugged and durable design; IK10 impact protection and IP66/IP67 weatherproof housing for outdoor use.
  • Power-over-Ethernet (PoE) support; simplifies installation with a single power and data cable.
  • Advanced H.265 compression; reduces bandwidth and storage requirements without sacrificing quality.
  • Intelligent streaming; optimizes bandwidth usage by encoding only relevant details in the scene.
  • End-to-end encryption; ensures robust data security and privacy protection.
  • Local storage support; allows up to 2TB of edge recording on a microSD card.
  • Day and night modes; provides automatic switching for enhanced image quality in varying lighting.
  • Wide operating temperature range; performs reliably from -40°C to 55°C (-40°F to 131°F).
  • Built-in intelligent defog; optimizes visibility in foggy or hazy conditions.
  • Tamper detection; alerts users in case of interference or vandalism.
  • Easy installation; includes a USB-C port for wireless configuration via the Bosch Project Assistant app.
  • Ideal for outdoor applications; suitable for parking lots, building exteriors, industrial sites, and more.

Downloads

Additional Information

Aperture:
F1.6
Camera Style:
Bullet
Compliance:
NDAA Compliant
Compression:
H.264 H.265 MJPEG
Day/Night:
Auto
Dimensions:
5.82 in x 3.82 in / 148 mm x 97 mm
Durability:
Weather Resistant Vandal Resistant
Environmental:
Outdoor
IR Corrected:
IR Corrected
Iris:
P-iris
Lens Size:
3.2~10.5mm
Lens Type:
Motorized (Automatic Zoom) Lens
Material:
Aluminum Plastic
Operating Humidity:
5% to 100 RH (condensing)
Operating Temperature:
-40 °C to 55 °C (-40 °F to 131 °F)
Power Supply:
PoE (IEEE 802.3af) PoE+ (IEEE802.3at)
Protection Code:
IP66 IP67 IK10 NEMA 4X
Resolution:
5MP
SD Card Support:
SD Card Supported
Sensor Size:
1/2.7"
Sensor Type:
CMOS
Storage Humidity:
0% to 98%
Storage Temperature:
-30 °C to 70 °C (-22 °F to 158 °F)
Technology:
Network (IP)
Wide Dynamic Range (WDR):
True WDR 120dB
