Description

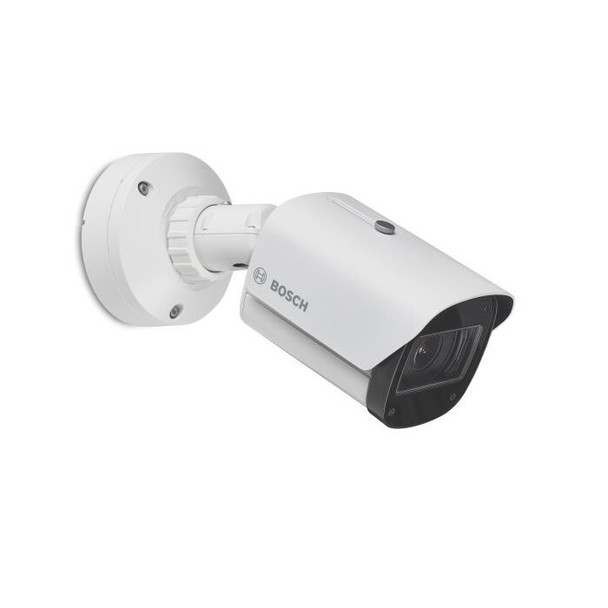

Bosch NBE-7702-ALX 2MP Outdoor IR Bullet IP Security Camera with HDR X 4.7-10mm Lens, White
The NBE-7702-ALX is an extremely robust bullet camera for mission-critical applications. The ruggedized and stable design has exceptional corrosion resistance for use in any outdoor application.
Using 1/1.8" sensors with HD 1080p resolution, the NBE-7702-ALX provides the perfect balance between high resolution and extreme low light sensitivity. Starlight X and HDR X technology combined with powerful intelligent IR illumination ensure highly detailed images even in the most challenging situations.
The cameras have a powerful, embedded processor with dedicated hardware to support advanced machine learning and deep neural network-based Video Analytics.
Built-in Intelligent Video Analytics Pro (IVA Pro) enriches full situational awareness and triggers relevant alerts.
With the combination of the robust housing, exceptional image quality, and the powerful video analytics, the NBE-7702-ALX is the ideal choice for the most demanding outdoor applications, including traffic monitoring, critical infrastructure, and perimeter security.
Key Features:
- Starlight X technology for next level low-light performance with maximum detail
- HDR X - High Dynamic Range to see every detail in both bright and dark areas of the scene without HDR motion blur and artefacts
- IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
- Powerful long range (850nm) intelligent IR illumination up to 80 m (262 ft), optional invisible IR (940nm) or white light
- Extremely robust and stable design with exceptional corrosion resistance for any outdoor application including traffic monitoring, critical infrastructure and perimeter security
Downloads
Compatible products
Additional Information
|
Alarm Input:
|
2 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Alternative SKUs:
|
F.01U.390.686
|
|
Aperture:
|
F1.35
F1.97
|
|
Audio Compression:
|
AAC-LC
|
|
Audio S/N Ratio (dB):
|
>50
|
|
Camera Style:
|
Bullet
|
|
Certifications:
|
UL Listed
UKCA
CE
cULus
RCM
WEEE
VCCI
CMIM
|
|
Color:
|
White
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Detect (ft):
|
263
96
|
|
Dimensions:
|
148 x 115 mm (5.82 x 5.52 in.)
|
|
Durability:
|
Weatherproof
Vandal Proof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
103
|
|
Field of View (Vertical):
|
53
|
|
IR Corrected:
|
IR Corrected
|
|
Identify (ft):
|
10
28
|
|
Iris:
|
P-iris
|
|
Lens Size:
|
4.7~10mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Material:
|
Aluminum
|
|
Max Power Consumption:
|
16 Watts
|
|
Max. FPS and Resolution:
|
60fps at 1920 x 1080
|
|
Max. Storage Capacity:
|
2 TB
|
|
Minimum Illumination (B/W):
|
0.0010 Lux
0 lux with IR illumination on
|
|
Minimum Illumination (Color):
|
0.0061 Lux
|
|
Night Vision Range (ft):
|
262
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Observe (ft):
|
20
40
111
|
|
Power Supply:
|
24 VAC
12 VDC
PoE (IEEE 802.3af)
PoE+ (IEEE802.3at)
|
|
Protection Code:
|
IK10
IP66
IP67
IP6K9K
NEMA 4X
|
|
Recognize (ft):
|
20
55
|
|
Resolution:
|
2MP
|
|
S/N Ratio:
|
>55 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
CMOS
|
|
Special Technologies:
|
Bosch Starlight X
|
|
Specialized Camera Feature:
|
Deep-learning
|
|
Storage Temperature:
|
-30 °C to 70 °C (-22 °F to 158 °F)
|
|
Technology:
|
Network (IP)
|
|
Wavelength (nm):
|
850
|
