Description

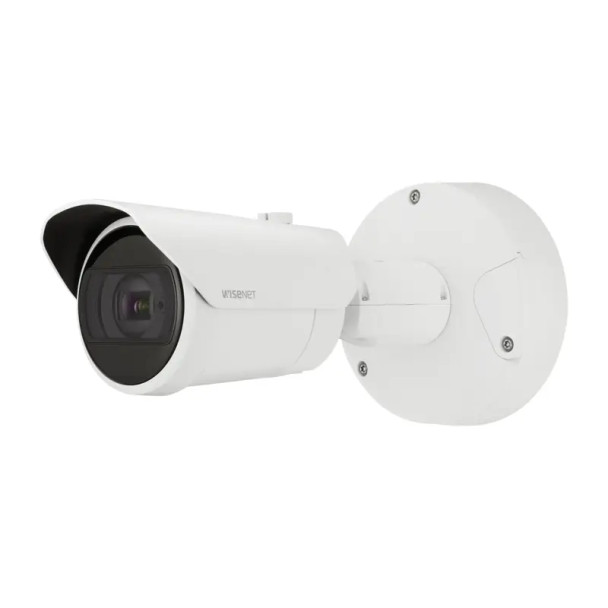

Samsung Hanwha XNO-C6083R 2MP Night Vision Outdoor Bullet IP Security Camera with AI and IVA, 2.8~12mm Motorized Lens
Key Features:
- 2MP resolution
- 2.8~12mm (4.3x) motorized varifocal
- Color: 0.011 Lux (F1.4, 1/30sec, 30IRE), 0 Lux (IR LED on)
- Maximum 60 fps@2MP (H.265/H.264)
- WiseIR: IR viewable length 40m (131.23 ft)
- Day & Night (ICR), extremeWDR (150 dB)
- DIS with built-in Gyro sensor
- Hard-coated dome bubble
- Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate)
- IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion)
- Analytics events : Defocus detection, Motion detection, Tampering, Fog detection
- Audio detection, Sound classification, Shock detection, Appear/Disappear
- IP66, IP67, NEMA4X, IK10, UL CAP certified, Metal shielded RJ-45
- PoE/12vDC
Downloads
Quick Start Guide
Hanwha-Techwin-(Samsung)-XNO-C6083R-Quick-Start-Guide-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm I/O:
|
2x Configurable I/O Ports
|
|
Analytics:
|
People Counting
Motion Detection
Audio Detection
Object Detection
|
|
Aperture:
|
F1.4
F3.6
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711
G.711ulaw
G.726
ADPCM
AAC-LC
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Built-in Features:
|
Built-in Analytics
|
|
Camera Style:
|
Bullet
|
|
Certifications:
|
UL Listed
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
SUNAPI
Wisenet open platform
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
Auto
ICR (True Day/Night)
|
|
Detect (ft):
|
73.47
507.18
|
|
Dimensions:
|
93.4 x 276.6 mm (3.68 x 10.89 in)
|
|
Durability:
|
Vandal Proof
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
119.5
27.9
|
|
IR Corrected:
|
IR Corrected
|
|
Identify (ft):
|
7.35
50.72
|
|
Image Enhancements:
|
Lens Distortion Correction (LDC)
Digital Image Stabilizer (DIS)
|
|
Image Settings:
|
Hallway View
|
|
Iris:
|
Auto (DC-iris)
|
|
Languages:
|
English
Korean
Chinese
French
Italian
Spanish
German
Japanese
Russian
Swedish
Portuguese
Czech
Polish
Turkish
Dutch
Greek
Hungarian
|
|
Lens Size:
|
2.8~12mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Manufacturer Website:
|
https://hanwhavisionamerica.com/
|
|
Material:
|
Aluminum
Hard-coated poly-carbonate
|
|
Max Power Consumption:
|
12.95 Watts
|
|
Max. FPS and Resolution:
|
30fps at 3328 x 1872
|
|
Max. Storage Capacity:
|
512 GB
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.01 Lux
|
|
Network Interface:
|
1x Rj-45 10/100 Base-T
|
|
Night Vision Range (ft):
|
131
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
SSNR V
WiseNR Ⅱ
|
|
Observe (ft):
|
29.39
202.87
|
|
Optical Zoom:
|
4.3x Optical Zoom
|
|
Power Supply:
|
PoE (IEEE 802.3af)
12 VDC
|
|
Product Series:
|
Samsung Hanwha Wisenet X Series
|
|
Protection Code:
|
IP66
IP67
IK10
NEMA 4X
|
|
RAM:
|
2GB
|
|
Recognize (ft):
|
14.69
101.44
|
|
Resolution:
|
2MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
2-1/12000s
|
|
Special Technologies:
|
Hanwha WiseStream II
|
|
Specialized Camera Feature:
|
Artificial Intelligence (AI)
|
|
Technology:
|
Network (IP)
|
|
Video Output:
|
1x Micro USB Type B
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
