Description

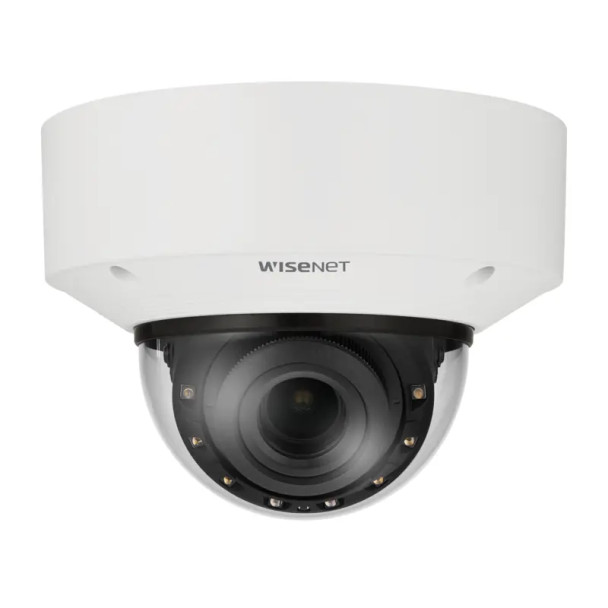

Samsung Hanwha XNV-C6083R 2MP Night Vision Outdoor Dome IP Security Camera with AI, 2.8~12mm Motorized Lens
Key Features:
- 2MP resolution
- 2.8~12mm (4.3x) motorized varifocal
- Color: 0.011 Lux (F1.4, 1/30sec, 30IRE), 0 Lux (IR LED on)
- Maximum 60 fps@2MP (H.265/H.264)
- WiseIR: IR viewable length 40m (131.23 ft)
- Day & Night (ICR), extremeWDR (150 dB)
- DIS with built-in Gyro sensor
- Hard-coated dome bubble
- Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate)
- IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion)
- Analytics events : Defocus detection, Motion detection, Tampering, Fog detection
- Audio detection, Sound classification, Shock detection, Appear/Disappear
- IP66, IP67, NEMA4X, IK10
Downloads
Quick Start Guide
Hanwha-Techwin-(Samsung)-XNV-C6083R-Quick-Start-Guide-A1
Compatible products

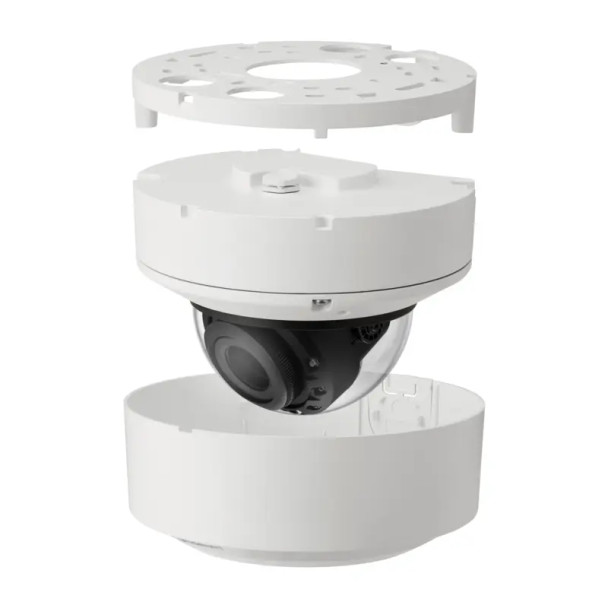

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm I/O:
|
2x Configurable I/O Ports
|
|
Aperture:
|
F1.4
F3.6
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711ulaw
G.726
G.711
ADPCM
AAC-LC
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Built-in Analytics:
|
Built-in Analytics
|
|
Camera Style:
|
Dome
|
|
Certifications:
|
UL Listed
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
SUNAPI
Wisenet open platform
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
Auto
ICR (True Day/Night)
|
|
Detect (ft):
|
73.47
507.18
|
|
Dimensions:
|
160 x 118 mm (6.30 x 4.65 in)
|
|
Durability:
|
Vandal Proof
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
119.5
27.9
|
|
IR Corrected:
|
IR Corrected
|
|
Identify (ft):
|
7.35
50.72
|
|
Image Enhancements:
|
Lens Distortion Correction (LDC)
|
|
Iris:
|
Auto (DC-iris)
|
|
Languages:
|
English
Spanish
|
|
Lens Size:
|
2.8~12mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Material:
|
Aluminum
Hard-coated poly-carbonate
|
|
Max Power Consumption:
|
12.95 Watts
|
|
Max. FPS and Resolution:
|
60fps at 1080P
|
|
Max. Storage Capacity:
|
512 GB
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.01 Lux
|
|
Mounting:
|
Ceiling Mount
Pole Mount
Corner Mount
Wall Mount
|
|
NDAA Compliance:
|
NDAA Compliant
|
|
Network Interface:
|
1x Rj-45 10/100 Base-T
|
|
Night Vision Range (ft):
|
131.23
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
SSNR V
WiseNR Ⅱ
|
|
Observe (ft):
|
29.39
202.87
|
|
Optical Zoom:
|
4.3x Optical Zoom
|
|
Power Supply:
|
PoE (IEEE 802.3af)
12 VDC
|
|
Product Series:
|
Samsung Hanwha Wisenet X Series
|
|
Protection Code:
|
IP66
IP67
NEMA 4X
IK10
|
|
RAM:
|
2GB
|
|
Recognize (ft):
|
14.69
101.44
|
|
Resolution:
|
2MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
2-1/12000s
|
|
Special Technologies:
|
Hanwha WiseStream II
IVA (Intelligent Video Analytics)
Hanwha WiseStream III
Hallway View
|
|
Specialized Camera Feature:
|
Artificial Intelligence (AI)
|
|
Technology:
|
Network (IP)
|
|
USB Interface:
|
1x Micro USB
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
WDR 150dB
Extreme WDR
|
