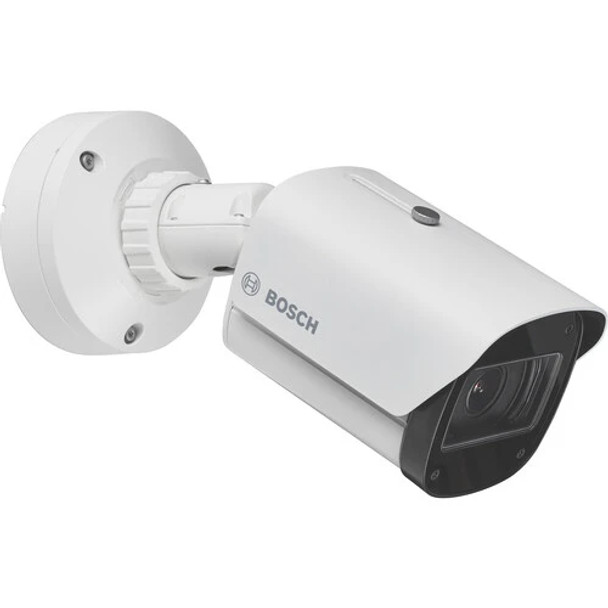

Bosch NBE-7704-ALX 8MP Outdoor Bullet IP Security Camera with 5.9-13mm Lens

Brand: Bosch
Part Number: NBE-7704-ALX
Write a Review
$3,418.69

? Help me pick a security camera

Free shipping over $300 Free Shipping
Technical Support Technical Support
  • Compression : H.264, H.265, MJPEG,
  • Lens Size : 5.9–13mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/1.2" Sensor
  • Protection Code : IK10 IP66 IP67 IP6K9K
  • Material : Aluminum
  • Environmental : Outdoor
  • Aperture : F1.6 F2.9
  • IR Corrected : IR Corrected

Description

Bosch NBE-7704-ALX 8MP Outdoor Bullet IP Security Camera with 5.9-13mm Lens

The Bosch NBE-7704-ALX is a state-of-the-art 8MP outdoor bullet IP security camera, designed for mission-critical applications in challenging environments. Featuring a motorized 5.9-13mm varifocal lens, it offers a horizontal field of view from 55° to 22°, ensuring optimal coverage for diverse surveillance needs. Equipped with cutting-edge Starlight X and HDR X technology, the camera delivers exceptional image quality even in extremely low-light and high-contrast conditions. With a powerful intelligent IR illumination up to 80 meters (262 feet), it ensures clear visibility during nighttime. Built-in Intelligent Video Analytics Pro (IVA Pro) enhances situational awareness and enables reliable detection and classification of persons and vehicles. Designed for durability, the camera boasts IK10 impact protection, IP66/IP67 weatherproof housing, and exceptional corrosion resistance, making it ideal for harsh outdoor environments. PoE support, advanced data security features, and ease of installation make the NBE-7704-ALX a superior choice for professional surveillance.

Key Features:

  • 8MP resolution; captures ultra-detailed video for mission-critical surveillance.
  • Starlight X technology; provides next-level low-light performance with maximum detail.
  • HDR X technology; delivers clear and sharp images in scenes with extreme lighting contrasts.
  • Motorized 5.9-13mm varifocal lens; offers a flexible horizontal field of view from 55° to 22°.
  • Intelligent IR illumination; ensures night vision up to 80 meters (262 feet), with optional invisible IR (940nm) or white light.
  • IVA Pro analytics; includes IVA Pro Buildings and IVA Pro Perimeter for advanced detection and classification.
  • Rugged and robust design; IK10 impact protection and IP66/IP67 weatherproof housing for outdoor use.
  • Exceptional corrosion resistance; suitable for critical infrastructure, traffic monitoring, and perimeter security.
  • Power-over-Ethernet (PoE) support; simplifies installation with a single power and data cable.
  • Advanced H.265 compression; reduces bandwidth and storage requirements without compromising quality.
  • Intelligent streaming; encodes only relevant details in the scene, optimizing bandwidth usage.
  • End-to-end encryption; ensures robust data security and privacy protection.
  • Local storage support; allows up to 2TB of edge recording on dual microSD cards.
  • Day and night modes; automatic switching for enhanced image quality in varying lighting conditions.
  • Wide operating temperature range; performs reliably from -50°C to 60°C (-58°F to 140°F).
  • Built-in intelligent defog; optimizes visibility in foggy or hazy conditions.
  • Tamper detection; alerts users in case of interference or vandalism.
  • Easy installation; patented swivel design ensures stability and allows single-hand positioning.
  • Bosch Project Assistant app; enables wireless configuration via USB-C and a wireless installation dongle (sold separately).
  • NDAA compliant; meets strict compliance requirements for government and critical applications.
  • Ideal for outdoor applications; perfect for traffic monitoring, critical infrastructure, and perimeter security.

Downloads

Additional Information

Aperture:
F1.6 F2.9
Camera Style:
Bullet
Compliance:
NDAA Compliant
Compression:
H.264 H.265 MJPEG
Day/Night:
Dimensions:
5.82 in x 4.52 in
Durability:
Weather Resistant Vandal Resistant
Environmental:
Outdoor
IR Corrected:
IR Corrected
Iris:
P-iris
Lens Size:
5.9–13mm
Material:
Aluminum
Operating Humidity:
5% to 100 RH (condensing)
Operating Temperature:
-40 °C to 60 °C (-40 °F to 140 °F)
Power Supply:
PoE (IEEE 802.3af) PoE+ (IEEE802.3at) 12 VDC 24 VAC
Protection Code:
IK10 IP66 IP67 IP6K9K
Resolution:
8MP
SD Card Support:
SD Card Supported
Sensor Size:
1/1.2"
Sensor Type:
CMOS
Storage Humidity:
0% to 98%
Storage Temperature:
-40 °C to 70 °C (-40 °F to 158 °F)
Technology:
Network (IP)
