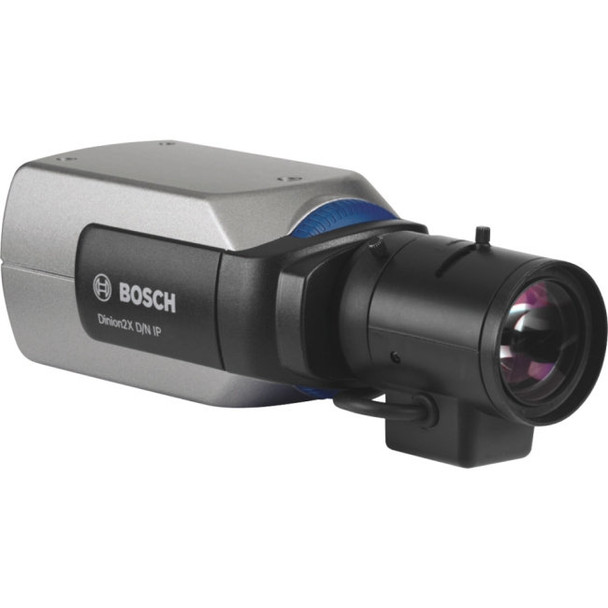

Bosch NBN-498-11P Dinion2X Day/Night IP Camera

Bosch NBN-498-11P Dinion2X Day/Night IP Camera

The Bosch NBN-498-11P 1/3” 2x Day/Night WDR H.26 IP Camera is a progressive scan CCD camera which can quad-stream video simultaneously on two H.264 streams, an I-frame recording stream, and an M-JPEG stream. The camera has many smart features including multicasting, internet streaming and iSCSI recording. It is fully equipped with 20-bit DSP with 2X dynamic and has a wide dynamic range for sharper, more detailed images with outstanding color reproduction.

Bosch NBN-498-11P Features:

• 1/3-inch Day/Night CCD with progressive scan
• 20-bit image processing technology
• Wide Dynamic Range, 2X-dynamic engine and SmartBLC
• Quad streaming
• Brand: Bosch
• Model Code: NBN-498-11P
• Color Type: Color / Monochrome
• Chip Inch Size: 1/3
• Resolution: 540
• Specialist Type: Network
• Sensitivity Lux: 0.15 @ F1.2
• Lens Mount: C/CS
• Picture Elements HxV: 752 x 582
• Back Light Compensation: Yes
• Auto Gain Control: Yes
• White Balance: Yes
• Electronic Shutter Range: 1/50 ~ 1/10,000
• S/ N (Signal/ Noise) Ratio dB: >50
• Synchronization: Internal, Line Lock
• Signal Mode: PAL
• Y/ C (Video Output): 75 Ohms
• Compression Type: H.264, M-JPEG, JPEG
• Network Properties:
• Interface: 10/100baseT Ethernet, RJ45
• Network Protocols: RTP, Telnet, UDP, TCP, IP, HTTP, HTTPS, FTP, DHCP
• Electrical Specifications: Voltage: 24 V AC, 12 V DC
• Physical Specifications:
• Dimensions mm: 58 x 66 x 122
• Weight g: 542
• Environmental Specifications:
• Operating Temperature oC: -20 ~ +50
• Operating Humidity %: 20 ~ 93
