Bosch NBN-63023-B 2MP Indoor Box Hybrid IP/CCTV Security Camera - No Lens
- Compression : H.264, MJPEG,
- Max. FPS and Resolution : 60fps at 1080P
- Lens Type : No Lens
- Sensor Type : CMOS
- Sensor Size : 1/2.8" Sensor
- Color : Gray
- Environmental : Indoor

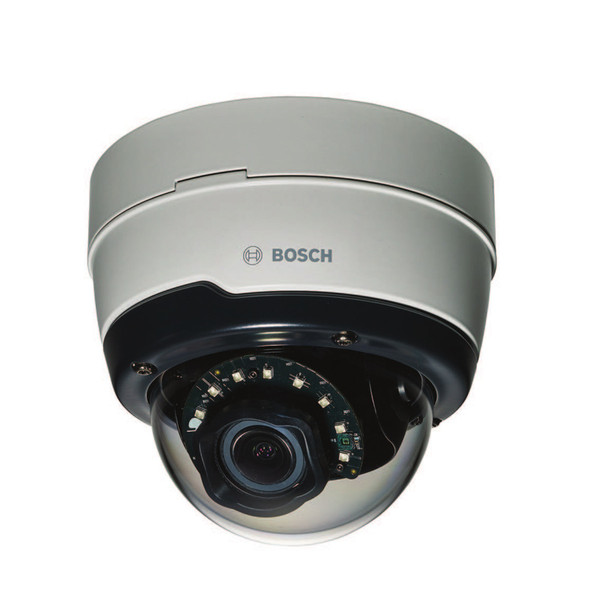

The 1080p dome cameras from Bosch are professional surveillance cameras that provide high quality HD images for demanding security and surveillance network requirements. These domes are true day/ night cameras offering excellent performance day or night. The built-in active infrared illuminator provides high performance in extreme low-light environments.
Ideal for outdoor use, the IK10-rated design is suitable for installations where a vandal resistance is important. The camera is protected against water and dust to IP66 standards. The varifocal lens allows you to choose the coverage area to best suit your application. Mounting options are numerous, including surface, wall, and suspended-ceiling mounting. The automatic zoom/focus lens wizard makes it easy for an installer to accurately zoom and focus the camera for both day and night operation. The wizard is activated from the PC or from the on-board camera push button making it easy to choose the workflow that suits best. The AVF (Automatic Varifocal) feature means that the zoom can be changed without opening the camera. The automatic motorized zoom/focus adjustment with 1:1 pixel mapping ensures the camera is always accurately focused.
The built-in video analysis reinforces the Intelligence- at-the-Edge concept and now delivers even more powerful features. Essential Video Analytics is ideal for use in controlled environments with limited detection ranges. The system reliably detects, tracks, and analyzes objects, and alerts you when predefined alarms are triggered. A smart set of alarm rules makes complex tasks easy and reduces false alarms to a minimum. Metadata is attached to your video to add sense and structure. This enables you to quickly retrieve the relevant images from hours of stored video. Metadata can also be used to deliver irrefutable forensic evidence or to optimize business processes based on people counting or crowd density information. Calibration is quick and easy – just enter the height of the camera. The internal gyro/accelerometer sensor provides the rest of the information to precisely calibrate the video analytics.
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Alternative SKUs:
|
F.01U.403.298
|
|
Analytics:
|
People Counting
|
|
Aperture:
|
F1.3
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711
L16
AAC-LC
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Audio S/N Ratio (dB):
|
50
|
|
Built-in Features:
|
Built-in Analytics
|
|
Camera Style:
|
Dome
|
|
Certifications:
|
CE
FCC
UL Listed
cUL
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile S
ONVIF Profile G
ONVIF Profile M
Auto-MDIX
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Connection Type:
|
Wired
|
|
Durability:
|
Weatherproof
Vandal Proof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
37
106
|
|
IR Corrected:
|
IR Corrected
|
|
IR LED Quantity:
|
10
|
|
Iris:
|
Auto (DC-iris)
|
|
Languages:
|
English
|
|
Lens Mount:
|
Board Mounted
|
|
Lens Size:
|
3~9mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Made in:
|
Portugal
|
|
Manufacturer Website:
|
https://www.boschsecurity.com/us/en/
|
|
Material:
|
Aluminum
Poly-carbonate (PC)
|
|
Max Power Consumption:
|
10.8 Watts
|
|
Max. FPS and Resolution:
|
60fps at 1080P
|
|
Max. Storage Capacity:
|
2 TB
|
|
Network Interface:
|
1x Rj-45 10/100 Base-T
|
|
Night Vision Range (ft):
|
148
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
Intelligent DNR
|
|
Optical Zoom:
|
3x Optical Zoom
|
|
Power Supply:
|
12 VDC
24 VAC
PoE (IEEE 802.3af)
PoE+ (IEEE802.3at Class 4)
|
|
Product Series:
|
Bosch FLEXIDOME 4000 Series
|
|
Protection Code:
|
NEMA-TS 2
IK10
IP66
|
|
Resolution:
|
2MP
|
|
S/N Ratio:
|
>55 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Storage Temperature:
|
-40 °C to 70 °C (-40 °F to 158 °F)
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
WDR 146dB
|
