Bosch NDN-832V02-P FLEXIDOME HD 2MP Dome IP Security Camera - 1.8~3mm Varifocal Lens, 1/2.7" CMOS, WDR, Vandal Proof, Motion+

Bosch NDN-832V02-P FLEXIDOME HD 2MP Dome IP Security Camera - 1.8~3mm Varifocal Lens, 1/2.7" CMOS, WDR, Vandal Proof, Motion+
Hover on image to enlarge
You save: $988.56 (54%)
  • Shipping Policy
  • Return Policy
  • Ask Question
Payment options
fingerprintOur advantages

person Dedicated StaffDedicated Staff

people Free Presales SupportFree Presales Support

palette Free DesignFree Design

label_outline Best priceWe are proud of our prices, hundreds of customers check them every day, which give a choice to our online store!

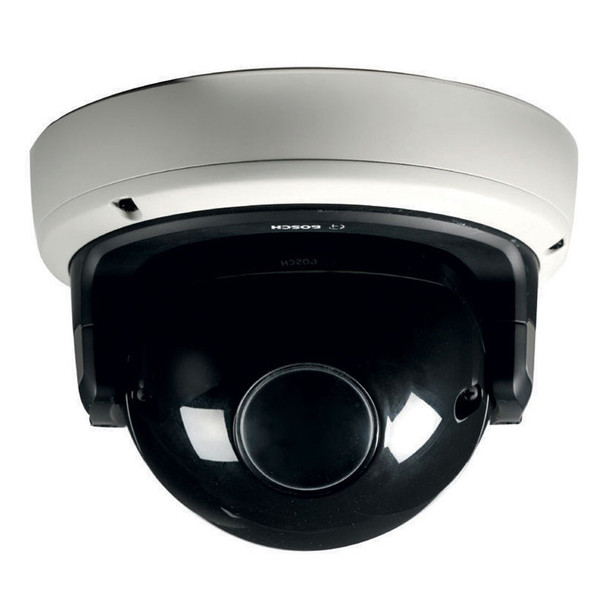

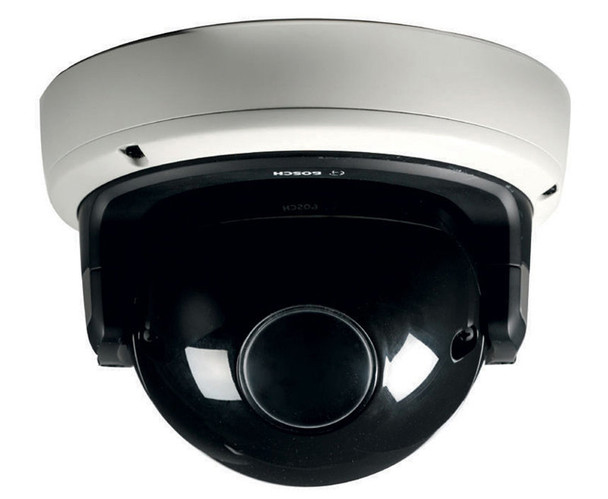

Bosch NDN-832V02-P Outdoor 1080P HD Vandal Dome Security Camera

Bosch Flexi Dome NDN-832V03-P 1080P HD IP device is an innovative line of next generation and intelligent dome style network IP unit. The Bosch NDN-832V02-P Outdoor 1080P HD Vandal Dome Security Camera deliver real-time 30fps high-definition IP Surveillance with advanced H.264 and MJPEG multi-streaming. The units also provide true day/night operation with mechanical IR Cut-filter and feature Digital WDR (Wide Dynamic Range) for superior performance in challenging lighting. It also includes a wide range of lens options for ultra-wide viewing without de-warping software, standard and telephoto applications. The device uses the latest CMOS-based HD sensor for a sharper, more detailed picture with a 16:9 image format and is ONVIF conformant, what facilitates interoperability between network video products from different manufacturers.

Four programmable privacy zones allow specific parts of a scene to be hidden from view. Features such as multicasting, internet streaming and iSCSI recording are fully supported. The Bosch NDN-832V02-P has a very intuitive user interface that allows fast and easy configuration over IP. A smart auto-focus lens wizard can be activated either from the PC or through the camera buttons. It is therefore easy for the installer to choose the best-suited workflow for setting field-of-view and focus with 1:1 pixel mapping. With its high-impact vandal-resistant enclosure the Bosch NDN-832V02-P Outdoor 1080P HD Vandal Dome Security Camera provides the extra protection necessary for outdoor and high-risk applications such as schools, banks, prisons, retail outlets, and industrial buildings.

Key Features of the Bosch NDN-832V02-P Outdoor 1080P HD Vandal Dome Security Camera

  • High Resolution: 1920 x 1080 HD
  • Quad Streaming: three simultaneous H.264 streams along with a MJPEG stream
  • Up to 4 Privacy Zones: allows you distorted or completely block out 4 portions of the picture
  • High-Impact Vandal-Resistant Enclosure: protection against impact and acts of vandalism, water and dust
  • ONVIF Compliant: makes the device interoperable with devices of different brands
  • Power over Ethernet: the device is powered over the Ethernet coaxial cable
  • Mounting Options: surface, wall, corner, and suspended ceiling mounting

Product Type:
3-year Manufacturer Warranty

Security Camera Features

Lens Size:
Lens Type :
Varifocal (Manual Zoom) Lens
Max. FPS and Resolution:
30fps at 1080P
Sensor Size:
Sensor Type:
Network (IP)
Technical Specs

 Bosch NDN-832V02-P Outdoor 1080P HD Vandal Dome Security Camera Specifications

  • Power Supply: 24 VAC 50/60 Hz, 12 VDC, Power-over-Ethernet 48 VDC nominal
  • Current Consumption: 0.8 A | 1 A IVA (12 VDC), 0.7 A | 0.8 A IVA (24 VAC), 0.25 A | 0.3 A IVA (PoE 48 VDC)
  • Power Consumption Heater on: 9.6 W | 11 W IVA (12 VDC), 13.4 W | 15.8 W IVA (24 VAC), 12.2 W | 13.4 W IVA (PoE 48 VDC)
  • Power Consumption Heater off: 4.8 W | 6 W IVA (12 VDC), 8.4 W | 10.8 W IVA (24 VAC), 7.2 W | 8.4 W IVA (PoE 48 VDC)
  • PoE: IEEE 802.3af (802.3at Type 1)
  • Type: 1/2.7‑inch CMOS
  • Pixels: 1952 x 1092 (2.03MP)
  • Video compression: H.264 (ISO/IEC 14496-10); M- JPEG, JPEG
  • Streaming: Multiple configurable streams in H.264 and M-JPEG, configurable frame rate and bandwidth., Regions of Interest (ROI)
  • Overall IP Delay: Min. 120 ms, Max. 240 ms
  • GOP structure: IP, IBP, IBBP
  • Encoding interval: 1 to 30 (25) ips
  • Resolutions (H x V): 1080p HD 1920 x 1080, 960p HD 4:3 (cropped), 1280 x 960, 720p HD 1280 x 720, D1 4:3 (cropped) 704 x 480, SD upright (cropped), 400 x 720, 480p SD Encoding: 704 x 480; Displayed: 854 x 480, 432p SD 768 x 432, 288p SD 512 x 288, 240p SD Encoding: 352 x 240;
  • Displayed: 432 x 240, 144p SD 256 x 144
  • Sensitivity: (3200 K, scene reflectivity 89%, F1.2)
  • Minimum illumination (30 IRE): Color: 0.22 lx (0.022 fc), Monochrome: 0.05 lx (0.005 fc)
  • Day/Night: Color, Mono, Auto
  • White Balance: ATW (2500 to 10000K), ATWhold and manual
  • Shutter: Automatic Electronic Shutter (AES), Fixed (1/30 [1/25] to 1/15000), selectable, Default shutter
  • Backlight compensation: Off, Auto
  • Contrast enhancement: On/off
  • Sharpness: Sharpness enhancement level selectable
  • Dynamic Range: Digital WDR: 76 dB
  • Privacy Masking: Four independent areas, fully programmable
  • Video Motion Analysis: Motion+ or IVA option
  • Standard: G.711, 8kHz sampling rate, AAC
  • Signal-to-noise ratio: > 50 dB
  • Audio Streaming: Full duplex / half duplex
  • Analog Video out (service only): CVBS (PAL/NTSC), 1 Vpp, 2.5 mm jack, 75 Ohm (non-protected)
  • Audio: 1 x mono line in, 1 x mono line out, signal line in: 12 kOhm typical, 1 Vrms max, signal line out: 1 Vrms at 1.5 kOhm typical
  • Alarm: 2 inputs, activation voltage: +5 VDC to +40 VDC, (+3.3 VDC with DC-coupled 22 kOhm pullup resistor)
  • Relay: 1 output, voltage: 30 VAC or +40 VDC, Maximum 0.5 A continuous, 10VA
  • Internal RAM: 10 s pre-alarm recording
  • Memory card slot: Supports SDHC and SDXC microSD cards up to 2 TB
  • Recording: Continuous recording, ring recording.alarm/events/schedule recording
  • Unit Configuration: Via web browser or Configuration Manager
  • Software update: Remote programmable
  • Protocols: IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, SNTP, SNMP (V1, MIB‑II),802.1x, DNS, DNSv6, DDNS, SMTP,iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, Digest Authentication.
  • Encryption: TLS 1.0, SSL, DES, 3DES, AES (optional)
  • Ethernet: 10/100 Base-T, auto-sensing, half/full duplex
  • Ethernet connector: RJ45
  • Connectivity: ONVIF Profile S, Auto-MDIX
  • Varifocal lens: Manual zoom and focus adjustment
  • Iris control: Automatic iris control
  • Viewing angle: 1.8 to 3 mm: Wide 115 x 84º (H x V), Tele 87º x 57º (H x V), 3.8 to 13 mm: Wide: 87º x 48º (H x V), Tele: 26º x 14.3º (H x V ), 9 to 40 mm: Wide: 37º x 20º (H x V), Tele: 8.5º x 4.8º (H x V )
  • Dimensions (D x H): 208 x 151 mm (8.2 x 5.95 in)
  • Weight: 2200 g (4.85 lb)
  • Operating Temperature: -50°C to +55°C (-58°F to 131°F)
  • Operating Temperature (IVA): -50°C to +50°C (-58°F to 122°F)
  • Storage Temperature: -30°C to +70°C (-22°F to +158°F)
  • Operating Humidity: 20% to 93% RH
  • Storage Humidity: up to 98% RH
  • Vandal Resistance: Ik10
  • Ingress Resistance: IP67, NEMA 4x

Specsheet (bosch-FLEXIDOME-HD-1080p-RD-Datasheet-A1.pdf, 1,027 Kb) [Download]
