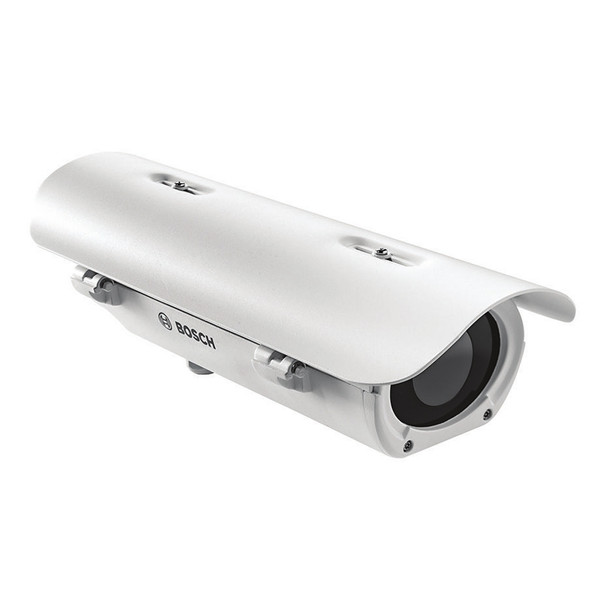

Bosch NHT-8000-F07QS QVGA 9fps Thermal Bullet IP Security Camera with 7.5mm Fixed Lens

Brand: Bosch
Part Number: NHT-8000-F07QS
Write a Review
  • Bosch NHT-8000-F07QS QVGA 9fps Thermal Bullet IP Security Camera with 7.5mm Fixed Lens
  • Bosch NHT-8000-F07QS QVGA 9fps Thermal Bullet IP Security Camera with 7.5mm Fixed Lens

Help me pick a security camera

Free shipping over $300 Free Shipping
Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Lens Type : Fixed Lens
  • Lens Size : 7.5mm Lens
  • Environmental : Outdoor


Bosch NHT-8000-F07QS QVGA 9fps Thermal Bullet IP Security Camera with 7.5mm Fixed Lens

DINION IP thermal 8000,This thermal IP camera provides high-sensitivity thermal images using an un-cooled vanadium oxide microbolometer that delivers outstanding image quality. The camera is designed to combine the benefits of thermal imaging with the market leading Intelligent Video Analytics from Bosch. There is no need for natural or artificial lighting of the area of interest. The camera produces crisp and clear images day and night, even in challenging environments with smoke, dust, haze or fog.

Key Features:

  • QVGA resolution
  • 7.5 mm Fixed Lens
  • FOV: 41.8 degree x 30 degree
  • 9 fps
  • Supports up to 32 GB microSDHC / 2 TB microSDXC card.
  • Long detection range (up to 5850 m)
  • Integrated Intelligent Video Analytics
  • 640 x 480 resolution version available for even sharper images
  • High access security for data protection
  • Weatherproof IP66, NEMA-4X
  • ONVIF Profile S; ONVIF Profile G

The camera comes with a choice of narrow field-of- view (NFOV) or wide field-of-view (WFOV) lenses. The QVGA resolution variant is available with a frame rate of 9 or 60 fps; the VGA resolution variant is available with a frame rate of 9 or 30 fps. The camera is enclosed in a robust outdoor housing making it ideal for a wide range of applications in demanding environments

Range Performance

The following tables give the approximate range performance under ideal conditions of the various lenses for standard monitoring.

Intelligent Video Analytics

The integrated video analytics is both robust and intelligent. The Intelligence-at-the-Edge concept now delivers even more powerful features:

  • Simple calibration
  • False alarm reduction
  • Extended range identification

The mission critical video analytics reliably detects, tracks, and analyzes objects, and alerts you when predefined alarms are triggered. A smart set of alarm rules, together with object filters and tracking modes, makes complex tasks easy.

The system is also extremely robust and is able to reduce false alarms, for example from foliage or shaking objects, even in harsh weather conditions. Metadata is attached to your video to add sense and structure. This enables you to quickly retrieve the relevant images from hours of stored video.

Edge recording

Insert a memory card into the card slot to store up to 2 TB of local alarm recording. Pre-alarm recording in RAM reduces recording bandwidth on the network, and extends the effective life of the memory card.

Hybrid operation

A surge-protected analog video output allows full hybrid operation. This means that high resolution IP video streaming and an analog video output are available simultaneously. The hybrid functionality offers an easy migration path from legacy CCTV to a modern IP-based system.



Input voltage 24 VAC (SELV) ±10% 50/60 Hz
Power consumption 34 W max.
Image sensor Un-cooled vanadium oxide microbolometer
Picture elements 320(H) x 240(V) or 640(H) x 480(V)
Pixel pitch 17 μm
Thermal sensitivity < 50 mK
QVGA 320 x 240 at 9 fps
Adjustable picture settings Contrast
Thermal color mapping 12 selectable modes
7.5 mm 41.8° x 30°, -
Video compression H.264 (MP); M- JPEG
Streaming Multiple configurable streams in H.264 and M-JPEG, configurable frame rate and bandwidth. Regions of Interest (ROI)
Camera processing latency <55 ms
GOP structure IP, IBP, IBBP
Analog output Off, 4:3, 16:9 pillar box, 16:9 crop
Positioning Coordinates / Mounting height
Analysis type Intelligent Video Analytics
Configurations Silent VCA / Profile1/2 / Scheduled / Event triggered
Alarm rules (combinable) Any object Object in field Line crossing Enter / leave field Loitering Follow route Counting Occupancy Condition change Similarity search Flow / counter flow
View AllClose

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at with any design questions.

Additional Information

Alternative SKUs:
Camera Style:
Lens Size:
Lens Type:
Fixed Lens
NDAA Compliance:
NDAA Compliant
Product Series:
DINION IP thermal 8000
Specialized Camera Feature:
Network (IP)
3-year Manufacturer Warranty
