Bosch VEZ-221-ICTEIVA 530TVL Indoor PTZ CCTV Analog Security Camera

Bosch VEZ-221-ICTEIVA 530TVL Indoor PTZ CCTV Analog Security Camera

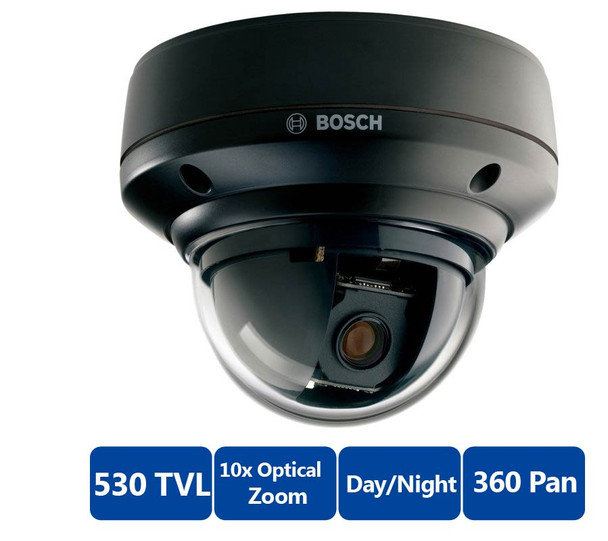

The Bosch VEZ-221-ICCEIVA Indoor Easy II IP 10x Clear Dome Camera with IVA has 1/4" color CCD offering high-quality imagery at a resolution up to 530TVL. Sensitivity below 1.0 lux, allows clear images even in low light conditions. A constant brightness level is maintained by Automatic Gain Control, which adjusts the signal strength. Auto White Balance adjusts the red and blue signals by taking a standard white color reference to obtain true colors. The camera has a120x zoom (10x optical, 12x digital). In addition to H.264 and JPEG compression, the camera supports 4 CIF and CIF resolutions at 30 images per second. Compatible with the ONVIF (Open Network Video Interface Forum) standard, this network camera works smoothly with other surveillance devices. With its tri-streaming video feature, the camera can generate 2 independent H.264 streams and 1 M-JPEG stream simultaneously. The VEZ-221-ICCEIVA offers a pan range up to 360° and tilt speed up to 100°. It has 99 user-defined presets as well as 1preset tour, 2recorded tours, and 2 autopan modes. Furthermore, Integrated Autoscaling (proportional zoom) and Autopivot features allow the camera to automatically rotate and flip, ensuring optimal control. Privacy masking allows programming of masks with 3, 4, or 5 corners to cover more complex shapes. It offers up to 12 individual privacy masks, with up to 12 displayed in the same scene. The masks change size smoothly when the camera is zoomed so that the covered object is not seen. Tamper detection ascertains whether the camera or the output signal is tampered with while motion detection identifies presence of relevant motion in the scene The Edge recording system and iSCSI support assist local storage and limit dependence on bandwidth, ensuring that system recording performance is independent from network performance. IVA (Intelligent Video Analysis) helps the detection, tracking and analysis of moving objects while suppressing unwanted alarms from dubious sources in the image. SNMP facilitates remote monitoring and management of the camera.

*Charcoal colored.

Key features:

• 120x zoom (10x optical, 12x digital)&
• 1/4" color CCD offering 530TVL resolution with sensitivity below 1.0 lux
• Automatic Gain Control - adjusts the signal strength to maintain a constant brightness level
• Auto White Balance - adjusts the red and blue signals in the MWB mode by taking a standard white color reference to get the most natural colors
• H.264 and JPEG compression&
• 99 user-defined presets as well as 1 preset tour, 2 recorded tours, and 2 autopan modes
• Offers pan range up to 360º (continuous)
• Supports 4 CIF and CIF resolutions at 30 images per second
• Capable of tri-streaming - simultaneous streaming of 2 H.264 streams and a JPEG stream
• Covers complex shapes using privacy masking
• Features Bosch's IVA (Intelligence Video Analysis), which detects and analyzes moving objects while reducing false alarms from spurious sources in the image
• Tamper detection determines whether the camera is tampered with
• Motion detection - detects presence of relevant motion in the video
• ONVIF-ready (Open Network Video Interface Forum) - reduces further upgrade or migration costs
• Built-in iSCSI support with the edge recording system - helps local storage and reduces dependence on network bandwidth
• SNMP support - facilitates remote monitoring and management
• Rugged reliability - protects from vandalism and theft
• Clear bubble / Charcoal color&
• NTSC&
• Supported languages - English, French, German, Spanish, Portuguese, Polish, Italian, Dutch, and Russian
