Bosch VEZ-423-ECCS Mini PTZ 30X Dome Security Camera

VEZ-423-ECCS
Save
46%

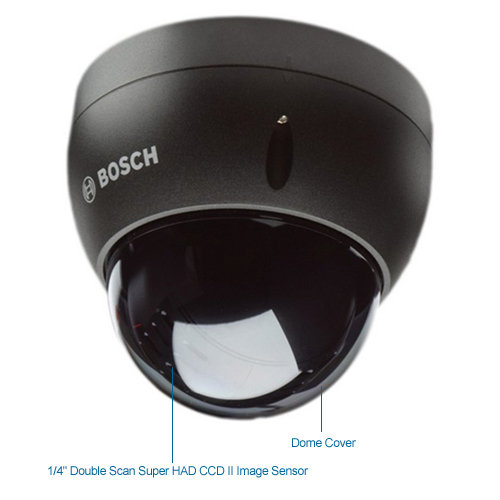

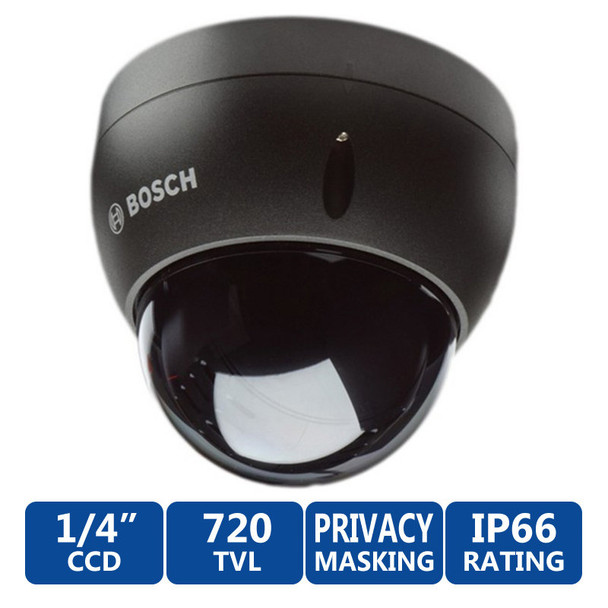

Bosch VEZ-423-ECCS Mini PTZ 30X Dome Security Camera
Hover on image to enlarge
$1,150.00
$617.94
You save: $532.06 (46%)
+
  • Shipping Policy
  • Return Policy
  • Ask Question
Delivery
Payment options
fingerprintOur advantages

person Dedicated StaffDedicated Staff

people Free Presales SupportFree Presales Support

palette Free DesignFree Design

label_outline Best priceWe are proud of our prices, hundreds of customers check them every day, which give a choice to our online store!

Description

Bosch VEZ-423-ECCS Mini PTZ 26X Dome Security Camera mini dome camera Bosch VEZ-423-ECCS Mini PTZ 26X Dome Security Camera digital noise reduction
Bosch VEZ-423-ECCS Mini PTZ 26X Dome Security Camera wide dynamic range Bosch VEZ-423-ECCS Mini PTZ 26X Dome Security Camera day night
Bosch VEZ-423-ECCS Mini PTZ 30X Dome Security Camera
The Bosch VEZ-423-ECCS Mini PTZ 30X Dome Security Camera, is smaller than other devices in its category. It has a dome diameter of just 4.4", which makes it compact and discrete. This camera is also quite affordable. The OSD (On-Screen Display) of the camera allows ease of access. The camera's ID, title, mode, and angle are easy to configure. The system has heavy-duty; tamper-resistant aluminum housing along with a rugged polycarbonate bubble when ensures protection against theft and vandalism. The VEZ-423-ECCS supports Bosch (OSRD, Bilinx), Pelco P, and Pelco D protocols.
It has an IK-10 rating which ensures protection against damage caused by impact. The camera can withstand an impact of up to 20 Joules which is equivalent to a 5 kg weight being dropped on the camera from a height of 40 cm. The Wide Dynamic Range feature ensures that it can capture high quality visuals in high-contrast lighting conditions, and in areas like doorways where background illumination is high. The Bosch VEZ-423-ECCS Mini PTZ 30X Dome Security Camera is suitable for both indoor and outdoor use.

Key Features of the Bosch VEZ-423-ECCS Mini PTZ 26X Dome Security Camera
  • 1/4" Double Scan Super HAD CCD II sensor: captures clear images at a maximum resolution of 600 TVL (NTSC)
  • Clear bubble: allows maximum light transmission enabling it to capture clear images of your surveillance area
  • 3DNR Digital Noise Reduction: reduces image noise to deliver sharp and clear images
  • IP66 rating: ensures protection from dust, oil, and foreign objects
  • Built-in heater: ensures optimized performance even in cold environments (-40 to 50F)
bosch vez-423-eccs mini ptz 26x dome security camera>
Features

Manufacturer:
Bosch
Product Type:
Cameras
Warranty:
3-year Manufacturer Warranty
Discontinued:
no

Security Camera Features

Lens Size:
3.5~104mm
Resolution:
600TVL
Sensor Size:
1/4"
Sensor Type:
CCD
Technology:
CCTV (Analog)
Camera Style:
  • Mini PTZ
Technical Specs

Bosch VEZ-423-ECCS Mini PTZ 26X Dome Security Camera Specifications
  • Imager: 1/4" Double Scan Super HAD CCD II
  • Lens size: fW=3.49 ±0.17 mm fT=104.02 ±5.20 mm (30x +/- 10% Optical Zoom)
  • Effective Pixels: 976 (H) x 494 (V)
  • Horizontal Resolution: 720 TVL (NTSC, PAL)
  • Optical Zoom: 30x Effective Optical Zoom
  • Digital Zoom: 10x
  • Field of View (approximate): 2.46° (TELE) to 69.5° (Wide)
  • Focus: Automatic with manual override
  • Signal-to-Noise Ratio (SNR): >50 dB
  • White Balance: Auto, indoor, outdoor, one push
  • Minimum Illumination: 0.2 Lux/ F1.65,  0.001 Lux/DSS, 0.1 Lux/ICR
  • Iris Control: Auto
  • Wide Dynamic Range (WDR): On/Off
  • Dynamic Noise Reduction (DNR): 3DNR
  • Privacy: 15 zones maximum
  • Weight: 1.5 kg (3.3 lb)
  • Pan Range: 360° continuous
  • Tilt Range: 0° to 180° (90° when 3D Privacy Masking is enabled)
  • Flip: Rotate 180° at bottom of tilt
  • Auto Scan: 8 Auto Scan modes including vector scan
  • Pre-position: Speed 360°/s
  • Preset Positions: 99 (Bosch OSRD); 210 (Pelco P/D) positions with camera status
  • Tours: 8 Tours (Preset, Pattern, Scan)
  • Patterns: 8 Patterns
  • On-Screen Display (OSD): Camera ID, Title, Mode, and Angle (multi-language) Multi-language OSD: English, Chinese, Dutch, French, German, Italian, Russian, Spanish
  • Power Supply: 24 VAC ± 10%, 50/60 Hz, Built-in power line surge
  • Power Requirements: 24 VAC adapter, 1 A (2.5 A with heater)
  • Power Consumption: 24 VAC, 850 mA / 20 W (without heater) 24 VAC, 2A / 45 W (with heater)
  • Alarm Input: 4 normal dry contacts (selectable NC/NO)
  • Alarm Output: 1 normal relay 5 VDC / 40 mA maximum (selectable NC/NO)
  • Control: RS-485; baud rate: 2400-38.4 Kbps (default =9600 bps)
  • Access Time: 0.75 second maximum preset recall time
  • Camera Address (ID): Physical – 99
  • Ingress Protection Rating: IP66
  • External Mechanical Impact (IK Code or Impact rating): IK10
  • Operating Temperature: -40 °C to +50 °C (-40 °F to +122 °F), Heater works automatically from -40 °C/°F to +10 °C (+50 °F)
  • Heater thermostat: On/Off at 0 °C to 10 °C (32 °F to 50 °F)
  • Installation Humidity: 80% relative humidity (RH)
  • Storage Temperature: -20 °C to +60 °C (-4 °F to +140 °F)
  • Camera Setup/Control: RS-485; Bosch Biphase with converter (sold separately)
  • Communications Protocols: Bosch (OSRD), Pelco P/D; (Bosch Biphase to OSRD protocol converter, sold separately)
  • Housing Material: Cast aluminum
  • Color: White or Charcoal
  • Size (Diameter x Height): Ø154 x 138 mm (H) / (Ø 6.06 x 5.43 in.)
  • Bubble: Ø112 mm (Ø 4.41 in.)Polycarbonate; clear or tinted
Datasheets

Specsheet (bosch-VEZ-400-Mini-PTZ-Dome-Data_sheet-A1.pdf, 702 Kb) [Download]
