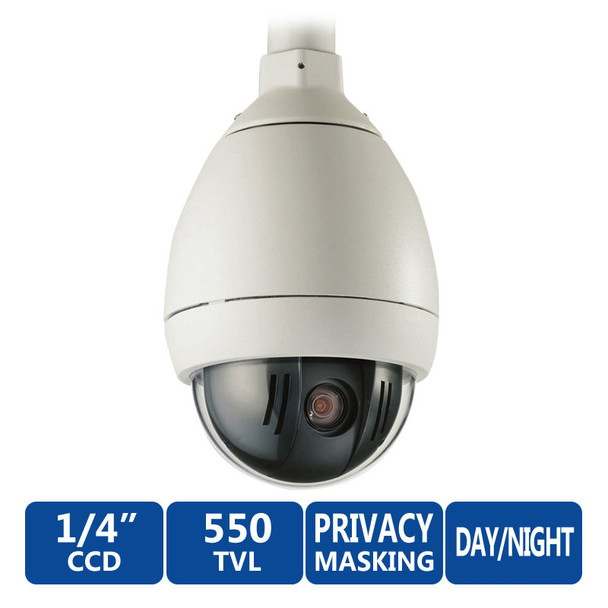

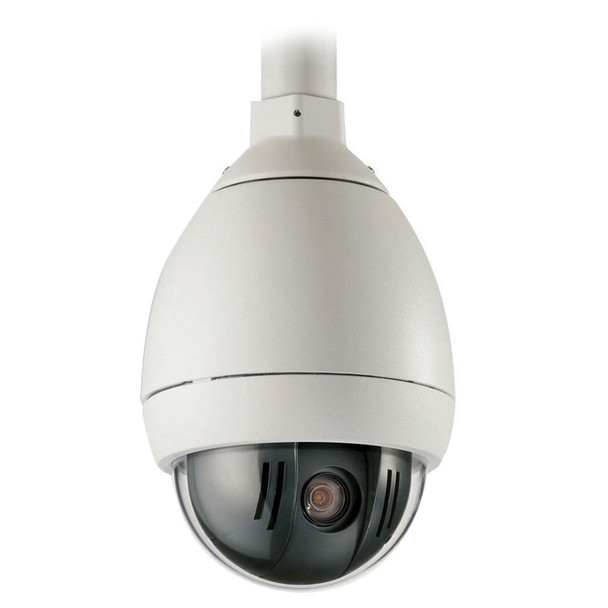

Bosch VG5-624-ECS 550TVL Outdoor PTZ CCTV Analog Security Camera - 36x Optical Zoom, Pendant

VG5-624-ECS
Save
48%
Bosch VG5-624-ECS 550TVL Outdoor PTZ CCTV Analog Security Camera - 36x Optical Zoom, Pendant
Hover on image to enlarge
$3,411.00
$1,779.90
You save: $1,631.10 (48%)
+
  • Shipping Policy
  • Return Policy
  • Ask Question
Delivery
Payment options
fingerprintOur advantages

person Dedicated StaffDedicated Staff

people Free Presales SupportFree Presales Support

palette Free DesignFree Design

label_outline Best priceWe are proud of our prices, hundreds of customers check them every day, which give a choice to our online store!

Frequently bought together

Description

Bosch VG5-624-ECS AutoDome 36x NTSC Indoor/Outdoor PTZ Pendant Camera indoor outdoor Bosch VG5-624-ECS AutoDome 36x NTSC Indoor/Outdoor PTZ Pendant Camera IP66
Bosch VG5-624-ECS AutoDome 36x NTSC Indoor/Outdoor PTZ Pendant Camera wide dynamic range Bosch VG5-624-ECS AutoDome 36x NTSC Indoor/Outdoor PTZ Pendant Camera 36x optical zoom

Bosch VG5-624-ECS 550TVL Outdoor PTZ CCTV Analog Security Camera

The Bosch VG5-624-ECS AutoDome 36x NTSC Indoor/Outdoor PTZ Pendant Camera allows good image quality both day and night. It has a 1/4" Exview HAD CCD Sensor that relays images with outstanding clarity even in complete darkness. The 550 TVL resolution and 36x optical zoom ensures high-quality images at all times. The camera comes with the unique feature of Sodium Vapor White Balance that automatically compensates for the light from a sodium vapor lamp.

In situations of high-contrast, the Wide Dynamic Range technology gives you sharp and detailed images. With its exceptional Image Stabilization Algorithms, this camera can give you blur free images by reducing the vertical and horizontal camera shake. With VG5-624-ECS, you can get at up to 24 individual privacy masks. The camera has an IP66 rated outdoor pendant housing to endure any weather condition. The 360° Pan and 100° Tilt allows all round surveillance. With Bosch VG5-624-ECS AutoDome 36x NTSC Indoor/Outdoor PTZ Pendant Camera, your security will never ever be compromised.

bosch vg5-624-ecs autodome 36x ntsc indoor/outdoor ptz pendant camera

Key Features of the Bosch VG5-624-ECS

  • Resolution: 1/4" CCD sensor with 4CIF/D1 resolution and a sensitivity of 0.104 lux (30 IRE, night) captures clear images in both day and night conditions. It also has a high horizontal resolution of 550TVL
  • Zoom: 36X optical zoom and 12x digital zoom captures distant objects
  • Progressive Scan: smooth and clear images while viewing details in moving images
  • Sodium Vapor White Balance mode: restores objects to their original color
  • AutoTrack II feature: track movement automatically
  • Alarms: advanced alarm controls with rules engine
  • Super-quick 360° per-second pan and 100° tilt: helps quick focusing on objects
bosch vg5-624-ecs autodome 36x ntsc indoor/outdoor ptz pendant camera>
Features

Manufacturer:
Bosch
Product Type:
Cameras
Warranty:
3-year Manufacturer Warranty
Color:
White
Environmental:
Outdoor
Discontinued:
no

Security Camera Features

Field of View (Horizontal):
  • 1
  • 57
Lens Size:
3.4~122.4mm
Lens Type :
Motorized (Automatic Zoom) Lens
Protection Code :
  • IK08
  • IP66
Resolution:
550TVL
Sensor Size:
1/4"
Sensor Type:
CCD
Technology:
CCTV (Analog)
Camera Style:
  • PTZ
Optical Zoom:
36x Optical Zoom
Vandal Proof:
  • Yes
SD Card Support:
  • No
Weatherproof:
  • Yes
Technical Specs

Bosch VG5-624-ECS AutoDome 36x NTSC Indoor/Outdoor PTZ Pendant Camera Specifications
  • Imager: 1/4 in.-type Exview HAD CCD (progressive scan)
  • Effective Picture Elements: Approx. 380,000; 768 (H) x 494 (V)
  • Lens: 36x Zoom (3.4–122.4 mm) F1.6 to F4.5
  • Zoom Movement Speed: NTSC
  • Optical WIDE / Optical TELE – Focus Tracking ON: 4.0 sec.
  • Optical WIDE / Optical TELE – Focus Tracking OFF: 2.7 sec.
  • Optical WIDE / Digital TELE: 6.0 sec.
  • Digital WIDE / Digital TELE: 2.1 sec.
  • Focus: Automatic with manual override
  • Iris: Automatic with manual override
  • Field of View: 1.7° to 57.8°
  • Video Output: 1.0 Vp-p, 75 Ohm
  • Gain Control: Auto/Manual/Max. (–3 dB to 28 dB, 2 dB steps)
  • Aperture Correction: Horizontal and vertical
  • Digital Zoom: 12x
  • Horizontal Resolution: 550 TVL (NTSC, PAL) typical
  • Synchronization: Line-Lock (–120° to 120° vertical phase adjust) or internal crystal
  • Sensitivity (typical): 30 IRE / 50 IRE
  • Day Mode SensUp Off: 30 IRE-0.66 lux / 50 IRE-1.4 lux
  • Day Mode SensUp On (NTSC: 1/4s, 15X; PAL 1/3s, 16.7X): 30 IRE-0.04 lux / 50 IRE-0.01 lux
  • Night Mode SensUp Off: 30 IRE- 0.104lux / 50 IRE- 0.209 lux
  • Night Mode SensUp On (NTSC: 1/4s, 15X; PAL 1/3s, 16.7X): 30 IRE-0.0052 lux / 50 IRE- 0.0103 lux
  • Electronic Shutter Speed: 1/1 to 1/10,000 sec., 22 steps
  • Wide Dynamic Range (WDR): 92 dB (50 dB with WDR Off)
  • Signal-to-Noise Ratio (SNR): >50 dB
  • White Balance: 2000 K to 10,000 K
  • Pan Range: 360° cont.
  • Tilt Angle: 18° above horizon
  • Variable Speed: 0.1°/s-120°/s
  • Pre-position Speed: Pan-360°/s, Tilt- 100°/s
  • Preset Accuracy: ± 0.1° typ.
  • Input Voltage: 21-30 VAC 50/60 Hz
  • Power Consumption (typical): 15 W / 27 VA
  • Protection on Video: Peak current 10 kA (Gas Tube Arrester)
  • Protection on Biphase: Peak current 10 A, peak power 300 W (8/20 μs)
  • Protection on RS-232/485: ESD protection ±15 KV human body model
  • Protection on Alarm Inputs: Peak current 17 A, peak power 300 W (8/20 μs)
  • Protection on Alarm Outputs: Peak current 2 A, peak power 300 W (8/20 μs)
  • Protection on Relay Outputs: Peak current 7.3 A, peak power 600 W (10/1000 μs)
  • Protection on Power Input (Dome): Peak current 7.3 A, peak power 600 W (10/1000 μs)
  • Protection on Power Output (Arm Power Supply): Peak current 21.4 A, peak power 1500 W (10/1000 μs)
  • Sectors/Titling: 16 independent sectors with 20-character titles/sector
  • Masking: 24 individually configurable privacy masks
  • Pre-positions: 99, each with 20-character titles
  • Camera Setup/Control: Biphase, RS-232, RS-485, Bilinx (coax)
  • Communications Protocols: Biphase, Bilinx, Pelco P, and Pelco D
  • Guard Tours: Recorded tours – two (2), total duration 15 minutes / Preset tour – one (1), consisting of up to 99 scenes, consecutively and (1) customized up to 99 scenes
  • Supported Languages: English, Czech, Dutch, French, German, Italian, Polish, Portuguese, Russian and Spanish
  • Maximum Distance RG-59/U:  With Pre-comp OFF-1000 ft (300 m), With Pre-comp ON- 2000 ft (600 m)
  • Maximum Distance RG-6/U: With Pre-comp OFF- 1500 ft (450 m), With Pre-comp ON- 3000 ft (900 m)
  • Maximum Distance RG-11/U: With Pre-comp OFF- 2000 ft (600 m), With Pre-comp ON- 4000 ft (1200 m)
  • Maximum Distance Cat 5/UTP (Passive receiver): With Pre-comp OFF- 750 ft (225 m), With Pre-comp ON- 1500 ft (450 m)
  • Power, Camera: 21-30 VAC, 50/60 Hz
  • Power, Heater: 21-30 VAC, 50/60 Hz
  • Control Data: Biphase ±, RS-232 RX/TX or RS-485 ± - optional control data (dip switch selectable)
  • Video: BNC/UTP
  • Audio Line In: 9 K Ohm typ, 5.5 Vp-p max
  • EOLR Alarm Inputs (2): Programmable for “normally open”, “normally closed”, “normally open-supervised”, “normally closed-supervised”
  • Alarm Inputs (5): Programmable for “normally open” or “normally closed”
  • Relay Out (1): Dry contact output rating: 2 A at 30 VAC
  • Open Collector Outputs (3): 32 VDC at 150 ma max.
  • In-Ceiling: Yes
  • Design Rating: IP54,4 Plenum rated
  • Operating Temperature: –10°C to 40°C (14°F to 104°F)
  • Storage Temperature: –40°C to 60°C (–40°F to 140°F)
  • Humidity: 0% to 90% relative, noncondensing
  • Weight: 2.66 kg (5.86 lb)
  • Bubble Size: 153.1 mm diameter (6.03 in.)
  • Construction Material Housing: Cast aluminum
  • Construction Material Bubble: Polycarbonate (rugged)
  • Color: White (RAL 9003)
  • Standard: Finish Powder coated, sand finish
Datasheets

Specsheet (bosch-AutoDome_600_Datasheet-A1.pdf, 1,172 Kb) [Download]

Operation Manual (bosch-AutoDome_600_Operation_Manual-A1.pdf, 2,903 Kb) [Download]
