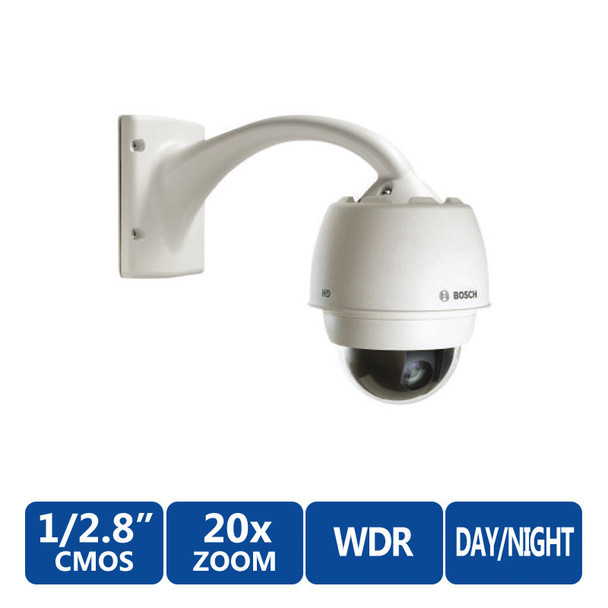

Bosch VG5-7220-CPT4 Autodome 7000 2MP Indoor PTZ Camera - 4.7~94mm Lens, 1/2.8" CMOS, 1080p HD, 20x Optical Zoom

Bosch VG5-7220-CPT4 Autodome 7000 2MP Indoor PTZ Camera - 4.7~94mm Lens, 1/2.8" CMOS, 1080p HD, 20x Optical Zoom
Hover on image to enlarge
You save: $1,773.03 (43%)
  • Shipping Policy
  • Return Policy
  • Ask Question
Payment options
fingerprintOur advantages

person Dedicated StaffDedicated Staff

people Free Presales SupportFree Presales Support

palette Free DesignFree Design

label_outline Best priceWe are proud of our prices, hundreds of customers check them every day, which give a choice to our online store!


Bosch Security VG5-7220-CPT4 is dome camera Bosch Security VG5-7220-CPT4 is high resolution camera
Bosch Security VG5-7220-CPT4 is 20x optical zoom camera Bosch Security VG5-7220-CPT4 is wide dynamic range camera

Bosch VG5-7220-CPT4 Autodome 7000 1080p HD Indoor 20x PTZ Camera
The Bosch VG5-7220-CPT4 Autodome 7000 1080p HD Indoor 20x PTZ Camera can be easily installed indoors. It features 20x optical zoom that lets you capture high-quality footage at a resolution of 1080p HD with crisp and fine details. This indoor camera makes use of built-in Intelligent Video Analytics that allows you to track a particular object continuously in its field of frame. It features Wide Dynamic Range technology that delivers clear image quality by eliminating both the bright and dark shades and eliminating blur.

The H264 Video Compression technique offers direct streaming of videos and excellent image quality to manage bandwidth usage and storage requirements. This indoor camera also provides you the flexibility of dual-recording options such as usage of SD cards, iSCSI targets to improve the reliability of recording. Besides the IVA technique, it features intelligent tracking that can be used in three different modes such as auto mode, one click mode and IVA-triggered mode. TheBosch VG5-7220-CPT4 Autodome 7000 1080p HD Indoor 20x PTZ Camera can also be used to control the pan/tilt /zoom actions to keep the tracking in progress.

Key Features of the Bosch VG5-7220-CPT4 Autodome 7000 1080p HD Indoor 20x PTZ Camera

  • Resolution: 1080p HD quality with crisp and fine details
  • H264 Video Compression: offers direct video streaming while making use of minimal bandwidth
  • Intelligent Tracking: controls pan/til/zoom functionalities of the camera
  • WDR Technology: eliminates brighter and darker shades in the image
bosch vg5-7220-cpt4 autodome 7000 1080p hd indoor 20x ptz camera
bosch vg5-7220-cpt4 autodome 7000 1080p hd indoor 20x ptz camera>

Product Type:
3-year Manufacturer Warranty

Security Camera Features

Lens Size:
Max. FPS and Resolution:
30fps at 1080P
Sensor Size:
Sensor Type:
Network (IP)
Technical Specs

Bosch VG5-7220-CPT4 Autodome 7000 1080p HD Indoor 20x PTZ Camera Specifications

  • Imager: 1/2.8" type CMOS
  • Number of Pixels:  Effective-Approximately 3.27 Mp, Delivered-Approximately 2 Mp
  • Aspect Ratio: HD: 16:9
  • Lens: 20x optical zoom,(4.7 to 94 mm)
  • Focus: One-push (default), Automatic (normal, low), Manual
  • Iris: Automatic with manual override (F1.6 to F3.5)
  • Field of View: 1080p Mode: 2.9° (tele) to 55.4° (wide)
  • Minimum Working Distance: Day Mode-300 mm (wide) to 1000 mm (tele), Night Mode-10 mm (wide) to 1,000 mm (tele)
  • Gain Control: Automatic / Manual (-3 to 28 dB, 2 dB steps / 16 steps)
  • Digital Zoom: 12x, Sensitivity- IRE Day Mode-SensUp Off (1/30 [1/25] shutter), High Sensitivity Off-0.8 lux (0.074 fc), SensUP On, maximum (0.25 sec shutter), High Sensitivity On-0.04 lux (0.004 fc)
  • Sensitivity: Night Mode-SensUP Off (1/30 [1/25] shutter), High Sensitivity Off-0.12 lux (0.011 fc), SensUP On, maximum (0.25 sec shutter), High Sensitivity On-0.005 lux (0.0005 fc)
  • Electronic Shutter Speed: 1/1 to 1/10,000 sec, 22 steps
  • Wide Dynamic Range: 86 dB (WDR On)
  • Signal to Noise Ratio: >50 dB (AGC Off, Weighting On)
  • Backlight Compensation: On / Off
  • White Balance: ATW, Indoor, Outdoor, AWB Hold, Extended ATW, Manual, Outdoor Auto, Sodium Lamp Auto, Sodium Lamp
  • Day/Night: Monochrome, Color, Auto
  • Pan Range: 360° continuous
  • Tilt Angle: 1° above horizon
  • Pre-Position Speed: Pan-400°/sec, Tilt-300°/sec
  • Modes: Turbo Mode (Manual Control), Pan-0.1 to 400°/sec, Tilt-0.1 to 300°/sec, Normal Mode-0.1 to 120°/sec
  • Preset Accuracy: ±0.1° typical
  • Input Voltage: 21 to 30 VAC, 50/60 Hz (Class II), High PoE (with Bosch NPD-6001A Midspan, sold separately),PoE+ (IEEE 802.3at, class 4 standard)
  • Alarm Inputs Peak Current: 17 A
  • Alarm Inputs Peak Power: 300 W (8/20 μs)
  • Alarm Outputs Peak Current: 2 A
  • Alarm Outputs Peak Power: 300 W (8/20 μs)
  • Relay Output Peak Current: 7.3 A
  • Relay Output Peak Power: 600 W (10/1,000 μs)
  • Power Input (Dome) Peak Current: 7.3 A
  • Power Input (Dome) Peak Power: 600 W (10/1,000 μs)
  • 10/100 Ethernet Data Lines Peak Current: 14 A
  • 10/100 Ethernet Data Lines Peak Power: 200 W (8/20 μs)
  • Camera Setup/Control: Via Web browser (such as Internet Explorer version 7.0 or later), Bosch Configuration Manager, Bosch Video Management System (BVMS), or Bosch Video Client (BVC)
  • Software Update: Network firmware upload
  • Video Compression: H.264 (ISO/IEC 14496 10)
  • GOP Structure: IP, IBP, IBBP
  • Data Rate: 9.6 kb/s to 10 Mb/s (per stream)
  • Overall IP Delay: 240 ms
  • Resolution (H x V) HD Resolutions: 1080p HD: 1920 x 1080
  • Down-scaled SD streams 432p SD: 768 x 432
  • Down-scaled SD streams 288p SD: 512 x 288
  • Down-scaled SD streams 144p SD: 256 x 144
  • Down-scaled SD streams Corridor Mode: 400 x 720
  • Down-scaled SD streams D1 4:3 Cropped: 704 x 480
  • Ethernet: 10-Base T/100 Base-TX, auto-sensing, half / full duplex, RJ45
  • Protocol: IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/ RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, SNTP, SNMP (V1, MIB II), 802.1x, DNS, DNSv6, DDNS,SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, digest authentication
  • Networking: Advanced: IPv6, QoS
  • Standard: G.711, 8 kHz sampling rate, L16, 16 kHz sampling rate, AAC, 16 kHz sampling rate
  • Signal to Noise Ratio: >50 dB
  • Audio Streaming: Bidirectional (full duplex)
  • Memory Card Slot: User-supplied SD/SDHC/SDXC memory card (maximum 2TB - SDXC)
  • Recording: Continuous recording of video and audio
  • Sectors/Titling: 16 independent sectors with a 20-character title / sector
  • Masking: 24 individually configurable privacy masks
  • Pre-positions: 256, each with a 20-character title
  • Guard Tours: Two Types of Tours, 2 x recorded tours, 1 x preset tour consisting of up to 256 scenes, consecutively
  • Supported Languages: English, Chinese, Dutch, French, German, Italian, Japanese, Polish, Portuguese, and Spanish
  • Power:  RJ-45 10/100 Base-TX Ethernet (High Power-over-Ethernet (High PoE))  Or PoE+ (IEEE 802.3at, class 4 standard) 21 to 30 VAC, 50/60 Hz
  • Video and Control: RJ-45 10/100 Base-TX Ethernet
  • Alarm Inputs: Total 7 2 x supervised 5 x non-supervised Programmable for normally open or normally closed
  • Alarm Outputs: Total 4 1 x dry contact relay, 3 x open collector / transistor outputs, 32 VDC @ 150 mA maximum
  • Audio: 1 x mono line in 1 x mono line out,
  • Signal: Line In-12 kΩ typical, 1 V RMS maximum, Line Out- 1 V RMS at 1.5 kΩ Ingress Protection Rating    IP54, Plenum rated
  • Operating Temperature: 14 to 104°F (-10 to 40°C)
  • Storage Temperature: -40 to 140°F (-40 to 60°C)
  • Humidity: 0 to 90% relative, non-condensing, typical
  • Material: Housing-Magnesium, Bubble-HD high-resolution acrylic
  • Dimensions (Ø x H):8.05 x 3.93" (204.49 x 99.76 mm)
  • In-Ceiling Height: 8.14" (206.89 mm)
  • Bubble Size: Ø: 6.03" (153.10 mm)
  • Weight: 5.69 lb (2.58 kg)

Manual (AUTODOME_7000_Series_Data_sheet_enUS_11388901515.pdf, 571 Kb) [Download]
